Product Details:
|
Features: | Compact Design | Product Name: | M5X180 Axial Piston Motor |
---|---|---|---|
Model: | M5X180CHB-11A-08D/285 | Application: | Excavator |
Application Model: | CAT330C | Keywords: | Excavator Hydraulic Swing Motor |

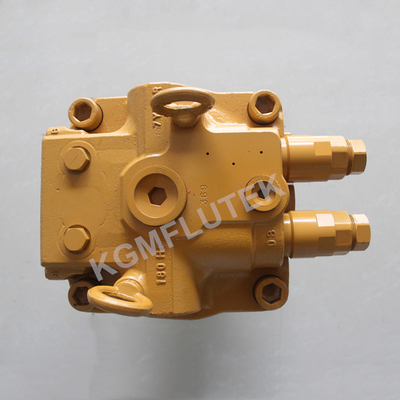

CAT330C Excavator Swing Motor Axial Piston Motor M5X180CHB-11A-08D/285
Product Details
CAT330C Excavator Swing Motor Axial Piston Motor M5X180CHB-11A-08D/285 | |
Product name: | M5X180 Axial Piston Motor |
Model: | M5X180CHB-11A-08D/285 |
Part name: | Hydraulic swing motor |
Brand Name: | KAWASAKI KPM |
Place of Origin: | Japan |
Condition: | 100% genuine brand New |
Material: | Casting Iron & Steel |
Application: | CAT Excavator |
Applicable model: | CAT330C |
Usage: | Hydraulic Machinery Industry, Construction Machinery Parts, Construction works |
Dimension(L*W*H): | 52x52x60CM |
Weight(KGS): | about 80KGS |
Delivery time: | 1-3 Days after we received the payment |
After Warranty Service: | Free Online Technical Support |
Warranty: | 6 months |
Guarantee: We will check the swing motor and send detail pictures to buyer to confirm before shipping. |
M5X180 Hydraulic Swing Motor Spare Parts
We offer swing motor spare parts for M5X180. Spare parts include: Piston Shoe, Cylinder Block, Valve Plate, Retainer Plate/Set plate, Ball Guide, Shoe Plate/Thrust Plate, Friction Plate, Steel Plate, Drive Shaft, Press Pin, Guide Space, Coil spring and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement swing motor parts. Our parts can totally interchange with original Kawasaki, same specification and duration.
PART DESCRIPTION | QTY |
M5X180 PISTON SHOE | 9 |
M5X180 CYLINDER BLOCK | 1 |
M5X180 VALVE PLATE M | 1 |
M5X180 RETAINER PLATE | 1 |
M5X180 BALL GUIDE | 1 |
M5X180 SHOE PLATE | 1 |
M5X180 FRICTION PLATE | 2 |
M5X180 STEEL PLATE | 3 |
M5X180 DRIVE SHAFT | 1 |
M5X180 PRESS PIN | 6 |
M5X180 ALL GUIDE SPACER | 1 |
M5X180 SPACER | 1 |
M5X180 COIL SPRING | 1 |
M5X180 SNAP RING | 1 |
Specifications-M2X / M5X Series Motor
Model | M2X63 | M2X210 | M5X80 | M5X130 | M5X180 | M5X250 | |
Displacement (cm3) | 64 | 210.1 | 79 | 129.2 | 180.1 | 250.1 | |
Pressure (MPa) | Rated | 29.4 | 29.4 | 33 | 32.4 | 32.4 | 33 |
Max | 34.3 | 34.3 | 40 | 39.2 | 39.2 | 40 | |
Max speed (min-1) | 2,200 | 1,400 | 2,200 | 1,850 | 1,680 | 1,520 |
An excavator swing motor typically uses an axial piston motor to power the swing mechanism. Here's a general overview of how an axial piston motor works:
The axial piston motor consists of a cylinder block with several pistons arranged in a circular pattern around a central driveshaft. The piston heads are angled so that they form a "swash plate" that is connected to the driveshaft.
The cylinder block is mounted in a housing that contains ports for hydraulic fluid. When pressurized hydraulic fluid is directed into the ports, it enters the cylinder block, pushing the pistons outward and causing the swash plate to tilt. This tilting motion causes the driveshaft to rotate, providing the rotary motion necessary to power the swing mechanism.
EXCAVATOR MODELS:
CATERPILLAR: 311C, 311DLRR, 312C, 312CL, 312D, 312DL, 313D, 314CLCR, 315CL, 315DL, 315D, 318CL, 318D, 320B, 320C, 320CL, 320D, 320DL, 321CLCR, 322D, 323D, 323DL, 324D, 326D, 325B, 325C, 325D, 329D, 329DL, 330B, 330C, 330D, 330CL, 330DL, 336B, 336C, 336D, 336DL, 345B, 345C, 345CL, 345D, 345DL, 349D, 349DL, 365C, 365CL, 374D, 374DL, 385C, 385CL, 390D, 390DL, 304CCR, 305.5, 305CCR, 305.5E, 305.5E2, 306, 306E, 306E2, 307, 307C, 307CSB, 307D, 307E, 307E2, 308, 308DCR, 308DCRSB, 308C, 308D,308E, 308E2, 313D2, 318D2, 320D2, 323D2, 326D2, 329D2, 330D2, 336D2, 349D2, 374F, 390F
HYUNDAI: R140LC-7 R140LC-7A R140LC-9 R145CR-9 R160LC-3 R160LC-7 R160LC-7A R160LC-9 R180LC-7 R180LC-7A R180LC-9 R210LC-7 R210LC-7A R210LC-7H R210LC-9 R210NLC-7 R210NLC-7A R210NLC-9 R235LCR-9 R250LC-7 R250LC-7A R250LC-9 R290LC-7 R290LC-7A R290LC-7H R290LC-9 R300LC-7 R305LC-7 R320LC-7 R320LC-7A R320LC-9 R360LC-7 R360LC-7A R360LC-9 R370LC-7 R450LC-7 R450LC-7A R480LC-9 R500LC-7 R500LC-7A R520LC-9 R800LC-7A
VOLVO: EC160B EC180B EC135B EC130 EC130C EC140 EC140B EC150 EC150C EC160 EC210 EC210B EC200 EC210F EC210BF EC230 EC230B EC240 EC240B EC280 EC290 EC290B EC300 EC330B EC340 EC360 EC360B EC390 EC420 EC450 EC460 EC460B EC620 EC650 EC700B
DOOSAN: DH55 DX60 DH60-7 DX75 DX80 DX120 DX150LC DH150LC-7 DH215-9 DH215-9E DH220LC-9E DH225LC-9 DX260LC DX300LC DH300LC-7 DX345LC DH370LC-9 DX380LC DX420LC DH420LC-7 DX500LC DH500LC-7 DX700LC
SANY: SY50, SY55, SY60, SY65, SY75, SY80, SY85, SY95, SY115, SY135, SY140, SY155, SY205, SY210, SY215, SY220, SY225, SY235, SY240, SY245, SY265, SY305, SY335, SY365, SY385, SY465
We offer wide range of hydraulic swing motors that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our swing motors are packed well in wooden case.
