Product Details:
|
| Product Name: | Hydraulic Pump Assembly | Type: | Hydraulic Piston Pump |
|---|---|---|---|
| Model: | K5V200DTP1FAR-HN0V-V | Application: | Excavator |
| Application Model: | Doosan Solar S450LC-5 | Material: | Iron & Steel |
| Condition: | 100% New | Stock: | In Stock |
| High Light: | S450LC-5 Doosan Hydraulic Pump,K5V200DTP Doosan Hydraulic Pump,Flutek Hydraulic Piston Pump |
||

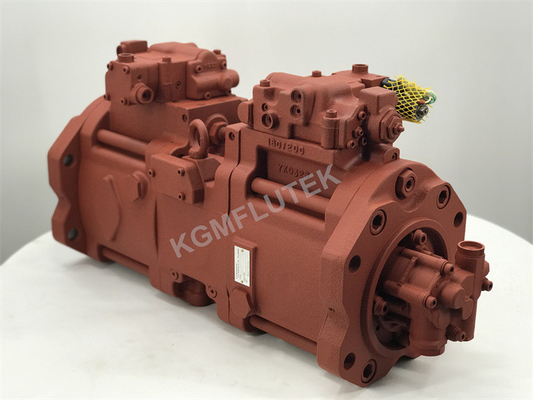

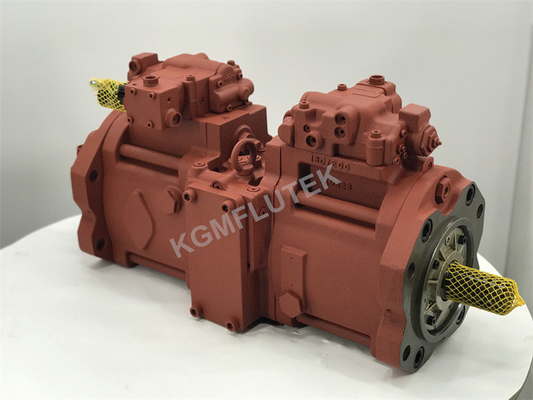

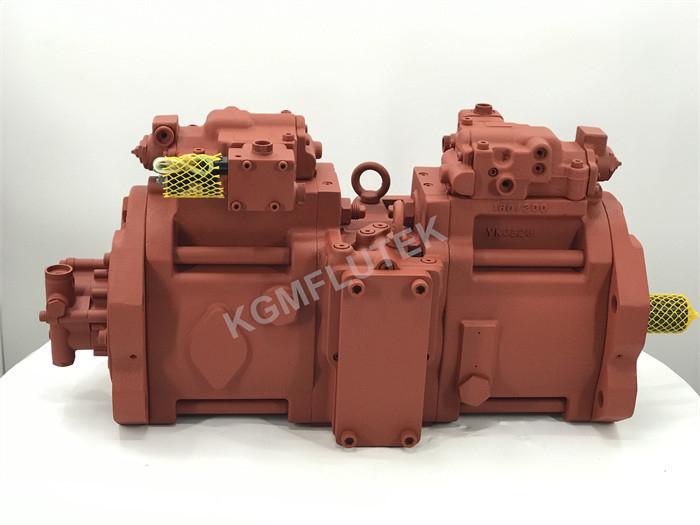

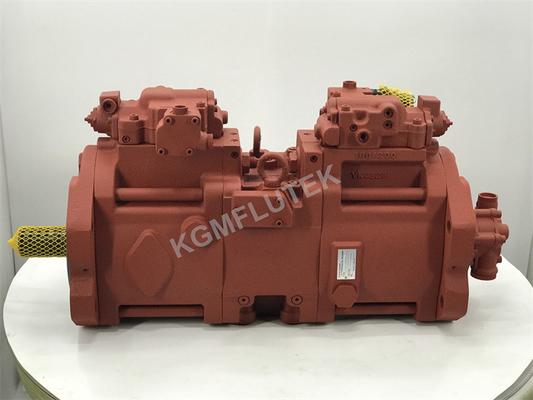

Flutek K5V200DTP Hydraulic Main Piston Pump For Doosan Solar S450LC-5
Product Details
| Flutek K5V200DTP Hydraulic Main Piston Pump For Doosan Solar S450LC-5 | |||
|
Product Name:
|
Hydraulic pump
|
Model Number:
|
K5V200DTP1FAR-HN0V-V
|
| Brand Name: | Flutek | Place Of Origin: | Korea |
|
Condition:
|
Original New
|
Delivery:
|
Within 1-3 days
|
|
Inventory:
|
In stock
|
Material: | Iron & Steel |
|
Packing:
|
Wooden Case
|
Payment Term:
|
T/T, Western Union
|
| Application: | Excavator | Applicable model: | Doosan Solar S450LC-5 |
| Weight: | 210KGS | Dimension(L*W*H): | 85X45X64CM |
| Warranty: | 6 months | After Warranty Service: | Online support |
|
Guarantee: We will check the goods and send detail pictures to buyer to confirm before shipping.
|
|||
K5V200DTP Hydraulic Pump Spare Parts
| Part Name | Quantity | Part Name | Quantity |
| Cylinder block | 2 | Drive shaft | 2 |
| Piston shoe | 18 | Block spring | 18 |
| Valve plate | 2 | Swash plate | 2 |
| Ball guide | 2 | Support | 2 |
| Retainer plate | 2 | Thrust plate | 2 |
| Retainer washer | 2 | Seal kit | 1 |
Features
1. With new technology the K5V series has realized higher power density.
2. K5V series can cope with enlargement of displacement despite the same installation dimensions and regulator variations as K3V’s.
3. K5V series pumps have realized higher reliability and long life so as to meet requirement of larger torque.
|
Model
|
K5V80DT/DTP
|
K5V140DT/DTP
|
K5V160DT/DTP
|
K5V200DT/DTP
|
K5V212DT/DTP
|
|
|
Displacement (cc/rev)
|
80
|
140
|
160
|
200
|
214
|
|
|
Pressure (bar)
|
Rated
|
343
|
350
|
|||
|
Peak
|
392
|
400
|
||||
|
Speed (rpm)
|
Max. for self priming
|
2,460
|
2,160
|
2,000 (2,350)
|
1,900 (2,200)
|
2,000
|
|
Max.
|
3,000
|
2,500
|
2,350
|
2,200
|
2,000
|
|
Applications
|
DOOSAN/DAEWOO HYDRAULIC MAIN PUMP ASSY
|
||
|
DOOSAN/DAEWOO
|
2401-6228
|
K3V112DT-112R-9C02
|
|
2401-9095P
|
K3V112DT-1CGR-HNOP
|
|
|
2401-9158A
|
K3V112DT-1CGR-HNOD(V)
|
|
|
2401-9186
|
K3V112DT-1CGR-HNOC
|
|
|
2401-9225C
|
K3V140DT-1A2R-9N09
|
|
|
2401-9236B
|
K3V140DT-1UGR-HN1P
|
|
|
2401-9261
|
K3V140DT-1UGR-HN02
|
|
|
400914-00026
|
K5V140DTP-1D9R-9N01
|
|
|
400914-00212A
|
K5V140DTP-1N9R-9NO7-V
|
|
|
400914-00393
|
K3V180DT-1PGR-HLOP
|
|
|
401-00020B
|
K3V180DT-1PGR-HNOP
|
|
|
401-00059B
|
K3V180DT-1PGR-HN1P
|
|
|
401-00060C
|
K3V180DT-1PGR-HNOZ
|
|
|
V63DT-111R-6N03A-2
|
K3V180DTH-1POR-HNOV
|
|
|
K3V63DT-1Q0R-HNOV
|
K3V180DTH-1POR-HNIV
|
|
|
K3V112DT-112R-9N02
|
K3V180DTH-1POR-HN2V
|
|
Company Information
Guangzhou Yunki is a manufacture and wholesaler specializing in manufacturing, import and export of construction machinery spare parts. Focus on excavator hydraulic system like Kawasaki Heavy Industries Precision Machinery (KPM, FLUTEK) hydraulic pumps, rotary device, multi-way valve, solenoid valve assembly and accessories and Korea hydraulics supporting assembly like KYB, NACHI.Yunki aimed to provide "one-stop, door-to-door" service of heavy machinery like excavator spare parts and replacements. We focus on providing customers with better products and services at reasonable prices.Yunki take quality and reputation as lifeblood of our company. We kept offering accurate excavator parts and best solutions for customers all over the world. Yunki hope to provide excellent products and services for customers, and form a good business relationship and friendship at the same time.
Main products
Our business covers hydraulic pump, gear pump, pilot pump, solenoid valve, pilot valve, relief valve, bearing, rotary group, regulator, cylinder block, valve plate, ball guide, retainer plate, swash plate, support, drive shaft, swing motor, delay valve, separate plate, friction plate, casing, gear box, travel motor, bearing housing, sproket, control valve, valve spool, collecting valve bucket, seal kits and all spare parts for EXCAVATOR (Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo, Doosan, Daewoo, Sany, Sumitomo, Kato, KYB, JCB, Rexroth, Nachi, Uchida, LiuGong, XCMG, XGMA, Takeuchi, Kubota, Danfoss, John Deere,) with Kawasaki KPM, FLUTEK and OEM brand.
We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our Hydraulic Pumps are packed well in wooden case.
