Product Details:
|
| Product Name: | Original Excavator Hydraulic Piston Pump | Part Number: | 422-1296 |
|---|---|---|---|
| Application: | CAT Excavator | Application Model: | CAT330D2 |
| Material: | Alloy Steel | Condition: | Original Brand New |
| Stock: | In Stock | Color: | Yellow |
| High Light: | Hydraulic CAT Piston Pump,Excavator CAT Piston Pump |
||

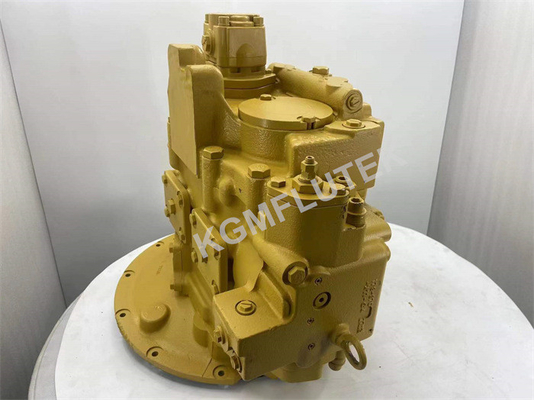

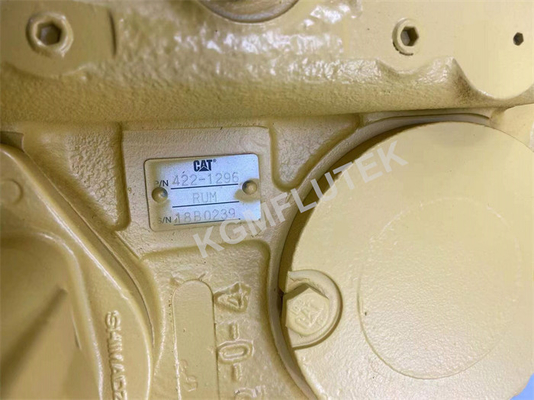

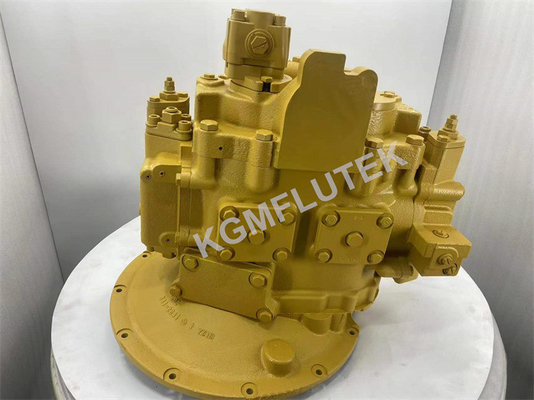

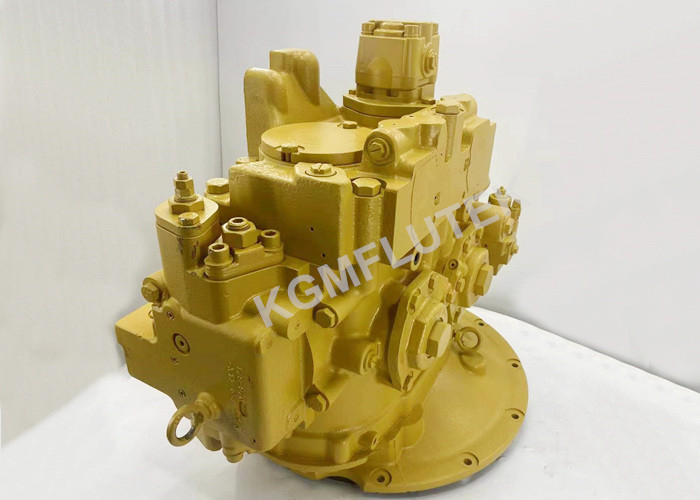

Original Excavator Hydraulic Piston Pump 422-1296 Fits CAT330D2
Product Details
| Product name: | Original Excavator Hydraulic Piston Pump |
| Part Number: | 422-1296 |
| Brand Name: | CAT |
| Place of Origin: | Japan |
| Condition: | Original Brand New |
| Material: | Alloy Steel |
| Application: | CAT Excavator |
| Applicable Model: | CAT330D2 |
| Usage: | Hydraulic Machinery Industry, Construction works |
| Packing: | Wooden case |
| Package Size: | 85X45X64CM |
| Delivery time: | 1-3 Days |
| After Warranty Service: | Online support and video technical support |
| Warranty: | 6 months |
Specifications
K3V series : K3V63 K3V112 K3V140 K3V180 K3V280
1. K3V series pumps are very popular as reliable power source for construction machines.
2. Various rotary group layouts are available to respond to applications.
3. Tandem type with PTO and Parallel type have joined the series.
|
model
|
K3V63
|
K3V112
|
K3V140
|
K3V180
|
K3V280
|
|
|
displacement /cm3
|
63
|
112
|
140
|
180
|
280
|
|
|
pressure MPa
(kgf/cm2)
|
rated
|
34.3 (350)
|
||||
|
peak
|
39.2 (400)
|
|||||
|
speed
/min-1
|
max.for self priming
|
2,650
|
2,360
|
2,150
|
1,950
|
1,600
|
|
max
|
3,250
|
2,700
|
2,500
|
2,300
|
2,300
|
|
K5V series : K5V80 K5V140 K5V160 K5V200 K5V212 K7V63
Thanks to new technology, the K5V series now provides an even higher power density. This series can easily handle enlargement of displacement despite having the same installation dimensions and regulator variations as the K3V. Our K5V pumps reliably deliver industry-leading reliability and a long life, meeting the requirements of larger torques.
|
Model
|
K5V80
|
K5V140
|
K5V160
|
K5V200
|
K5V212
|
K7V63
|
|
|
Displacement (cc/rev)
|
80
|
140
|
160
|
200
|
214
|
63
|
|
|
Pressure (bar)
|
Rated
|
343
|
350
|
||||
|
Peak
|
343
|
400
|
|||||
|
Speed
(rpm)
|
Max. for self priming
|
2,460
|
2,160
|
2,000
(2,350)
|
1,900
(2,200)
|
2,000
|
2650
|
|
Max.
|
3,000
|
2,500
|
2,350
|
2,200
|
2,000
|
3250
|
|
Main products
Our product covers hydraulic pump, gear pump, pilot pump, solenoid valve, pilot valve, relief valve, bearing, rotary group, regulator, cylinder block, valve plate, ball guide, retainer plate, swash plate, support, drive shaft, swing motor, delay valve, separate plate, friction plate, casing, gear box, travel motor, bearing housing, sproket, control valve, valve spool, collecting valve bucket, seal kits and all spare parts for EXCAVATOR.
Complete brands
Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo, Doosan, Daewoo, Sany, Sumitomo, Kato, KYB, JCB, Rexroth, Nachi, Uchida, LiuGong, XCMG, XGMA, Takeuchi, Kubota, Danfoss, John Deere with Kawasaki KPM, FLUTEK and OEM brand.
We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our Hydraulic Pumps are packed well in wooden case.
