Product Details:
|
| Product Name: | Excavator Kawasaki K3V Hydraulic Pump | Usage: | Construction Machinery Pump |
|---|---|---|---|
| Model: | K3V280DTH1GZR-ZN54-AVB | Application: | Xugong Excavator |
| Application Model: | XE700 | Condition: | 100% Original New |
| Weight: | 360kgs | Package Size: | 95*43*65cm |

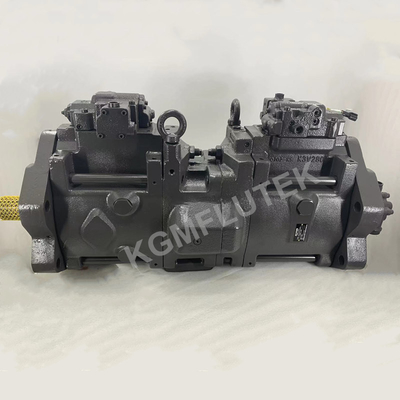

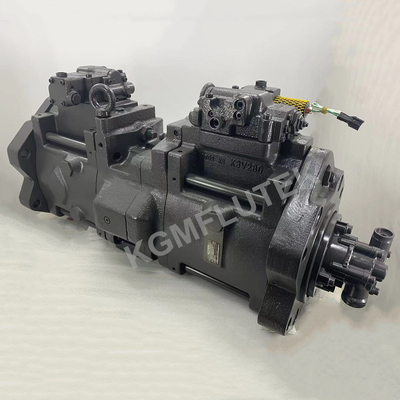

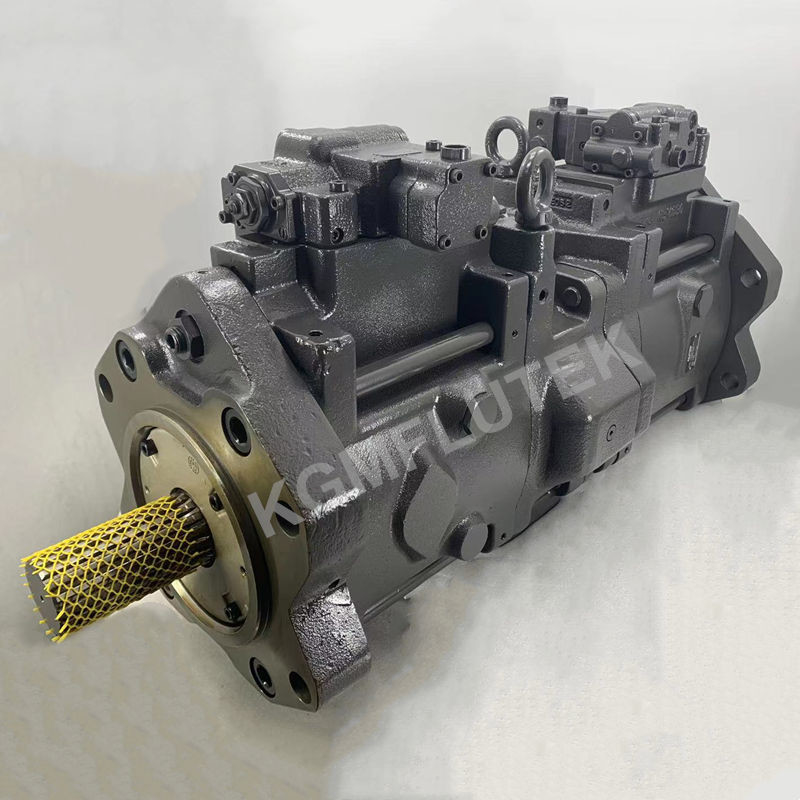

XE700 Excavator Kawasaki K3V Hydraulic Pump K3V280DTH1GZR-ZN54-AVB
Product Details
| XE700 Excavator Kawasaki K3V Hydraulic Pump K3V280DTH1GZR-ZN54-AVB | |||
|
Product Name:
|
Kawasaki K3V Hydraulic Pump
|
Model Number:
|
K3V280DTH1GZR-ZN54-AVB
|
| Brand Name: | Kawasaki KPM | Place Of Origin: | Japan |
|
Condition:
|
100% Original New
|
Delivery:
|
Within 1-3 days after payment
|
|
Inventory:
|
In stock
|
Material: | Casting Iron & Steel |
|
Packing:
|
Wooden Case
|
Payment Term:
|
T/T, Western Union, Paypal
|
| Application: | Crawler Excavator | Application model: | XE700 |
| Weight: | 360KGS | Dimension(L*W*H): | 95*43*65cm |
| Warranty: | 6 months | After Warranty Service: | Online support |
|
Guarantee: We will check the pumps and send detail pictures to buyer to confirm before shipping.
|
|||
K3V280DTH Hydraulic Pump Spare Parts
We Provide New Kawasaki K3V280DTH Piston Pump Rotary Group, Replacement And Spare Parts, 100% Compatible With Original Kawasaki, Good Quality Piston Pump Parts And More Cost Effective Price. Spare parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Yoke, Thrust Plate, Shoe Plate, Retainer Plate, Set Plate, Ball Guide, Piston Shoe, Pistons, Cylinder Block, Barrel, Valve Plate, Port Plate and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement piston pump parts. Precision piston pump parts can totally interchange with original Kawasaki, same specification and duration.
| Item No. | Name & Description | QTY (pcs) | Remark |
| 1 | K3V280DTH DRIVE SHAFT | 1 | SHAFT |
| 2 | K3V280DTH SUPPORT | 1 | |
| 3 | K3V280DTH SWASH PLATE | 1 | YOKE |
| 4 | K3V280DTH THRUST PLATE | 1 | SHOE PLATE |
| 5 | K3V280DTH RETAINER PLATE | 1 | SET PLATE |
| 6 | K3V280DTH BALL GUIDE | 1 | |
| 7 | K3V280DTH COIL SPRING | 1 | |
| 8 | K3V280DTH PISTON SHOE | 9 | PISTONS |
| 9 | K3V280DTH WASHER | 1 | |
| 10 | K3V280DTH CYLINDER BLOCK | 1 | BARREL |
| 11 | K3V280DTH VALVE PLATE | 1 | PORT PLATE |
Features
1. With new technology the K3V series has realized higher power density.
2. K3V series can cope with enlargement of displacement despite the same installation dimensions and regulator variations as K3V’s.
3. K3V series pumps have realized higher reliability and long life so as to meet requirement of larger torque.
| Model | K3V63 | K3V112 | K3V140 | K3V180 | K3V280 | |
| Displacement /cm3 | 63 | 112 | 140 | 180 | 280 | |
| Pressure MPa
(kgf/cm2)
|
Rated | 34.3 (350) | ||||
| Peak | 39.2 (400) | |||||
| Speed
/min-1
|
Max.for self priming | 2,650 | 2,360 | 2,150 | 1,950 | 1,600 |
| Max | 3,250 | 2,700 | 2,500 | 2,300 | 2,300 | |
ADVANTAGES
1. Energy conservation (low pressure drop, flow regeneration function)
2. Good Controllability (straight traveling, priority, flow confluence function, etc.)
3. Multi-functionalized (auxiliary add-on valve)
4. Low pressure loss contributes to reduction of energy consumption of the hydraulic system.
5. High pressure capability enables the hydraulic system more efficient and compact.
Excavator Hydraulic Pump/Swing Motor/Travel Motor Models
We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our Hydraulic Pumps are packed well in wooden case.
