Product Details:
|
| ProdEC700B Swing Motor Assemblyuct Name: | Volvo Swing Motor Assembly | Part Number: | 14634201 |
|---|---|---|---|
| Type: | Volvo Excavators Parts | Model: | M5X250CHB-10A-12A/260 |
| Condition: | 100% Genuine New | Application: | Crawler Excavator |
| Application Model: | EC700B | Feature: | High Efficiency |
| High Light: | 14634201 Swing Motor Assembly,M5X250CHB-10A-12A/260 Swing Motor Assembly,EC700B Swing Motor Assembly |
||

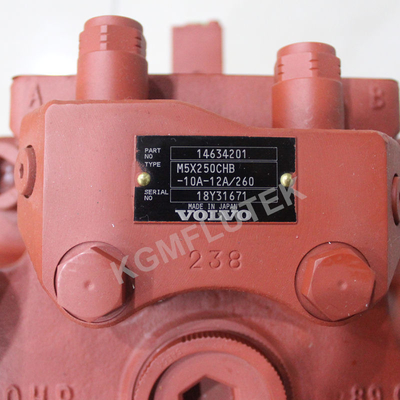

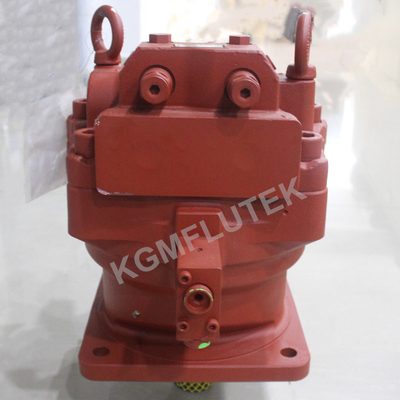

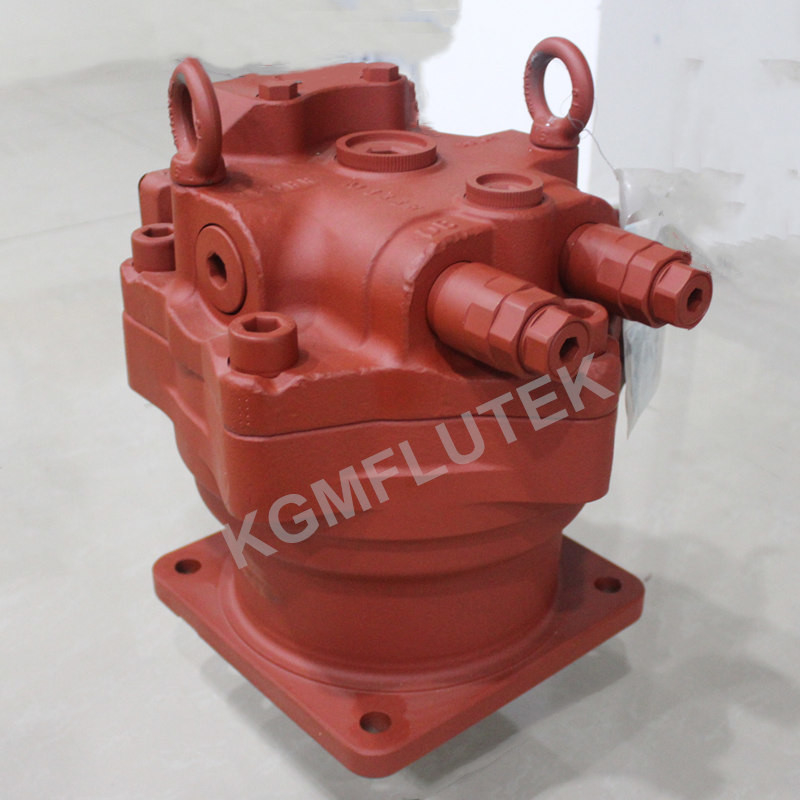

14634201 Swing Motor Assembly M5X250CHB-10A-12A/260 For EC700B
Product Details
| 14634201 Swing Motor Assembly M5X250CHB-10A-12A/260 For EC700B | |
| Product name: | Volvo Swing Motor Assembly |
| Part number: | 14634201 |
| Model: | M5X250CHB-10A-12A/260 |
| Part name: | Hydraulic swing motor |
| Brand Name: | VOLVO |
| Place of Origin: | Japan |
| Condition: | 100% genuine brand New |
| Material: | Casting Iron & Steel |
| Application: | VOLVO Excavator |
| Applicable model: | EC700B |
| Usage: | Hydraulic Machinery Industry, Construction Machinery Parts, Construction works |
| Dimension(L*W*H): | 52x52x60CM |
| Weight(KGS): | about 80KGS |
| Delivery time: | 1-3 Days after we received the payment |
| After Warranty Service: | Free Online Technical Support |
| Warranty: | 6 months |
| Guarantee: We will check the swing motor and send detail pictures to buyer to confirm before shipping. | |
M5X250 Hydraulic Swing Motor Spare Parts
We offer swing motor spare parts for M5X250. Spare parts include: Piston Shoe, Cylinder Block, Valve Plate, Retainer Plate/Set plate, Ball Guide, Shoe Plate/Thrust Plate, Friction Plate, Steel Plate, Drive Shaft, Press Pin, Guide Space, Coil spring and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement swing motor parts. Our parts can totally interchange with original Kawasaki, same specification and duration.
| PART DESCRIPTION | QTY |
| M5X250 PISTON SHOE | 9 |
| M5X250 CYLINDER BLOCK | 1 |
| M5X250 VALVE PLATE M | 1 |
| M5X250 RETAINER PLATE | 1 |
| M5X250 BALL GUIDE | 1 |
| M5X250 SHOE PLATE | 1 |
| M5X250 FRICTION PLATE | 2 |
| M5X250 STEEL PLATE | 3 |
| M5X250 DRIVE SHAFT | 1 |
| M5X250 PRESS PIN | 6 |
| M5X250 ALL GUIDE SPACER | 1 |
| M5X250 SPACER | 1 |
| M5X250 COIL SPRING | 1 |
| M5X250 SNAP RING | 1 |
Specifications-M2X / M5X Series Motor
| Model | M2X63 | M2X210 | M5X80 | M5X130 | M5X180 | M5X250 | |
| Displacement (cm3) | 64 | 210.1 | 79 | 129.2 | 180.1 | 250.1 | |
| Pressure (MPa) | Rated | 29.4 | 29.4 | 33 | 32.4 | 32.4 | 33 |
| Max | 34.3 | 34.3 | 40 | 39.2 | 39.2 | 40 | |
| Max speed (min-1) | 2,200 | 1,400 | 2,200 | 1,850 | 1,680 | 1,520 | |
EXCAVATOR MODELS:
VOLVO: EC160B EC180B EC135B EC130 EC130C EC140 EC140B EC150 EC150C EC160 EC210 EC210B EC200 EC210F EC210BF EC230 EC230B EC240 EC240B EC280 EC290 EC290B EC300 EC330B EC340 EC360 EC360B EC390 EC420 EC450 EC460 EC460B EC620 EC650 EC700B
CATERPILLAR: 311C, 311DLRR, 312C, 312CL, 312D, 312DL, 313D, 314CLCR, 315CL, 315DL, 315D, 318CL, 318D, 320B, 320C, 320CL, 320D, 320DL, 321CLCR, 322D, 323D, 323DL, 324D, 326D, 325B, 325C, 325D, 329D, 329DL, 330B, 330C, 330D, 330CL, 330DL, 336B, 336C, 336D, 336DL, 345B, 345C, 345CL, 345D, 345DL, 349D, 349DL, 365C, 365CL, 374D, 374DL, 385C, 385CL, 390D, 390DL, 304CCR, 305.5, 305CCR, 305.5E, 305.5E2, 306, 306E, 306E2, 307, 307C, 307CSB, 307D, 307E, 307E2, 308, 308DCR, 308DCRSB, 308C, 308D,308E, 308E2, 313D2, 318D2, 320D2, 323D2, 326D2, 329D2, 330D2, 336D2, 349D2, 374F, 390F
KOBELCO: SK07N2, SK07-7, SK04-2, SK09, SK12, SK40, SK60, SK115, SK120-1/2/3, SK100-2/3, SK160, SK140, SK140-8, SK160 MARK 1V, SK200, SK200-3/5, SK200-6, SK200-8S, SK210LC-8, SK220, SK220-10, SK230-6, SK230-6, SK235SR, SK250-6E, SK260-8, SK250-8, SK250-10, SK260-10, SK260LC-8, SK300, SK320, SK330-6, SK330-8, SK350-6, SK350LC-8, SK380D, SK450-1, SK450-6, SK450-8, SK460-8, SK480-8
HITACHI: EX120-5 EX100-3 EX150LC-5 EX160LC-5 EX200-3 EX200LC-3 EX200H-3 EX220-5 EX220LC-5 EX230H-5 EX270-5 EX270LC-5 EX280H-5 EX300-3 EX300LC-3 EX300H-3 EX300LCH-3 EX300-3C EX300LC-3C EX310H-3C EX400-3 EX400LC-3 EX400H-3 EX400-3C EX400LC-3C EX450H-3C EX400-5 EX400LC-5 EX450LC-5 EX450H-5 ZAXIS450 ZAXIS450LC ZAXIS450H EX550-3 EX550LC-3 EX600H-3 EX750-5 EX1100-3 EX1200-5 EX550-5 EX550LC-5 EX600H-5
SUMITOMO: SH110,SH120, SH120-1/2/3/5,SH125X-3,SH130-3/5,SH135X-3,SH145,SH150,SH160,SH180,SH200-1/2/ 3,SH210-5,SH210A5,SH210LC-5,SH200LC-3,SH225X-3,SH260,SH265,SH280, SH300, SH300-2, SH330LC-3,SH330-3,SH350-5,SH350-3B,SH340,SH400,SH400-3,SH450HD-3B
We offer wide range of hydraulic swing motors that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our swing motors are packed well in wooden case.
