Product Details:
|
| Features: | Directly Connected To Reduction Gear | Product Name: | Hydraulic Drive Motor |
|---|---|---|---|
| Type: | Excavator Attachments | Part Number: | 14645005 |
| Model: | SG20 | Condition: | 100% Original Brand New |
| Application: | Volvo Excavator | Application Model: | EC360B |
| High Light: | SG20 Excavator Swing Motor,EC360B Excavator Swing Motor,14645005 Excavator Swing Motor |
||

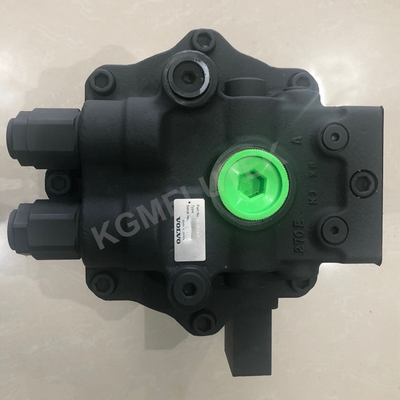

VOLVO EC360B SG20 Excavator Swing Motor 14645005 Hydraulic Drive Motor
Product Details
| VOLVO EC360B SG20 Excavator Swing Motor 14645005 Hydraulic Drive Motor | |
| Product name: | Hydraulic Drive Motor |
| Model: | 14645005, VOE14645005 |
| Part name: | Hydraulic swing motor |
| Brand Name: | VOLVO |
| Place of Origin: | Japan |
| Condition: | 100% genuine brand New |
| Material: | Casting Iron & Steel |
| Application: | VOLVO Excavator |
| Applicable model: | EC360B |
| Usage: | Hydraulic Machinery Industry, Construction Machinery Parts, Construction works |
| Dimension(L*W*H): | 52x52x60CM |
| Weight(KGS): | about 70KGS |
| Delivery time: | 1-3 Days after we received the payment |
| After Warranty Service: | Free Online Technical Support |
| Warranty: | 6 months |
| Guarantee: We will check the swing motor and send detail pictures to buyer to confirm before shipping. | |
Hydraulic Swing Motor Spare Parts
We offer swing motor spare parts including Piston Shoe, Cylinder Block, Valve Plate, Retainer Plate/Set plate, Ball Guide, Shoe Plate/Thrust Plate, Friction Plate, Steel Plate, Drive Shaft, Press Pin, Guide Space, Coil spring and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement swing motor parts. Our parts can totally interchange with original Kawasaki, same specification and duration.
| PART DESCRIPTION | QTY |
| PISTON SHOE | 9 |
| CYLINDER BLOCK | 1 |
| VALVE PLATE M | 1 |
| RETAINER PLATE | 1 |
| BALL GUIDE | 1 |
| SHOE PLATE | 1 |
| FRICTION PLATE | 2 |
| STEEL PLATE | 3 |
| DRIVE SHAFT | 1 |
| PRESS PIN | 6 |
| ALL GUIDE SPACER | 1 |
| SPACER | 1 |
| COIL SPRING | 1 |
| SNAP RING | 1 |
Specifications-M2X / M5X Series Motor
| Model | M2X63 | M2X210 | M5X80 | M5X130 | M5X180 | M5X250 | |
| Displacement (cm3) | 64 | 210.1 | 79 | 129.2 | 180.1 | 250.1 | |
| Pressure (MPa) | Rated | 29.4 | 29.4 | 33 | 32.4 | 32.4 | 33 |
| Max | 34.3 | 34.3 | 40 | 39.2 | 39.2 | 40 | |
| Max speed (min-1) | 2,200 | 1,400 | 2,200 | 1,850 | 1,680 | 1,520 | |
M2X/M5X Series Swing Motors Features
1. Integrated Valving For Swing Function
The M2X/M5X Series Swing Motors are designed to operate two or five-section operator functions. The motors feature integrated valving for the swing function and are available in two voltage configurations.
2.Compact Design
The M2X/M5X Series Swing Motors are high-quality, long-lasting products that have been designed to withstand the rigors of high-volume commercial applications. The motors feature a compact design that allows you to easily integrate them into your existing equipment.
3.Directly Connected To Reduction Gear
The M2X / M5X series swing motors are used to drive the main swing. They can be directly connected to reduction gearboxes with high torque and low speed, so that the overall performance is good.
EXCAVATOR MODELS:
CATERPILLAR: 311C, 311DLRR, 312C, 312CL, 312D, 312DL, 313D, 314CLCR, 315CL, 315DL, 315D, 318CL, 318D, 320B, 320C, 320CL, 320D, 320DL, 321CLCR, 322D, 323D, 323DL, 324D, 326D, 325B, 325C, 325D, 329D, 329DL, 330B, 330C, 330D, 330CL, 330DL, 336B, 336C, 336D, 336DL, 345B, 345C, 345CL, 345D, 345DL, 349D, 349DL, 365C, 365CL, 374D, 374DL, 385C, 385CL, 390D, 390DL, 304CCR, 305.5, 305CCR, 305.5E, 305.5E2, 306, 306E, 306E2, 307, 307C, 307CSB, 307D, 307E, 307E2, 308, 308DCR, 308DCRSB, 308C, 308D,308E, 308E2, 313D2, 318D2, 320D2, 323D2, 326D2, 329D2, 330D2, 336D2, 349D2, 374F, 390F
HYUNDAI: R140LC-7 R140LC-7A R140LC-9 R145CR-9 R160LC-3 R160LC-7 R160LC-7A R160LC-9 R180LC-7 R180LC-7A R180LC-9 R210LC-7 R210LC-7A R210LC-7H R210LC-9 R210NLC-7 R210NLC-7A R210NLC-9 R235LCR-9 R250LC-7 R250LC-7A R250LC-9 R290LC-7 R290LC-7A R290LC-7H R290LC-9 R300LC-7 R305LC-7 R320LC-7 R320LC-7A R320LC-9 R360LC-7 R360LC-7A R360LC-9 R370LC-7 R450LC-7 R450LC-7A R480LC-9 R500LC-7 R500LC-7A R520LC-9 R800LC-7A
VOLVO: EC160B EC180B EC135B EC130 EC130C EC140 EC140B EC150 EC150C EC160 EC210 EC210B EC200 EC210F EC210BF EC230 EC230B EC240 EC240B EC280 EC290 EC290B EC300 EC330B EC340 EC360 EC360B EC390 EC420 EC450 EC460 EC460B EC620 EC650 EC700B
DOOSAN: DH55 DX60 DH60-7 DX75 DX80 DX120 DX150LC DH150LC-7 DH215-9 DH215-9E DH220LC-9E DH225LC-9 DX260LC DX300LC DH300LC-7 DX345LC DH370LC-9 DX380LC DX420LC DH420LC-7 DX500LC DH500LC-7 DX700LC
SANY: SY50, SY55, SY60, SY65, SY75, SY80, SY85, SY95, SY115, SY135, SY140, SY155, SY205, SY210, SY215, SY220, SY225, SY235, SY240, SY245, SY265, SY305, SY335, SY365, SY385, SY465
We offer wide range of hydraulic swing motors that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our swing motors are packed well in wooden case.
