Product Details:
|
| Features: | High Reliability | Product Name: | Rotary Hydraulic Motor |
|---|---|---|---|
| Type: | Construction Machinery Parts | Model: | M5X180CHB-10A-2KB/270-149 |
| Condition: | 100% Original New | Application: | VOLVO Excavator |
| Application Model: | EC240D | Keywords: | Excavator Swing Motor |
| High Light: | EC240D Rotary Hydraulic Motor,M5X180CHB-10A-2KB/270-149 Rotary Hydraulic Motor |
||

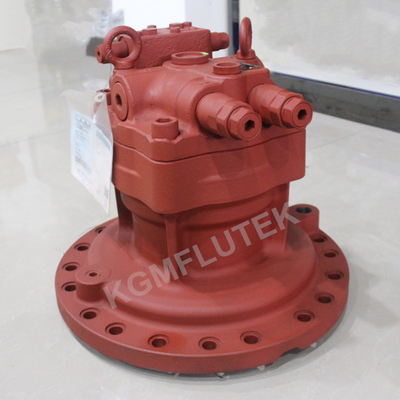

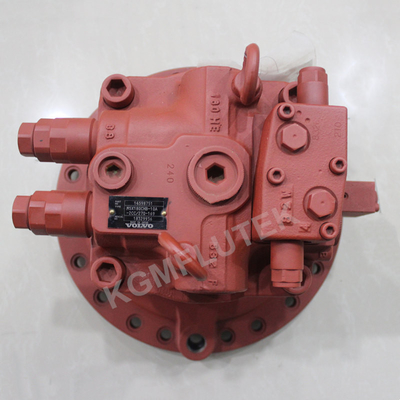

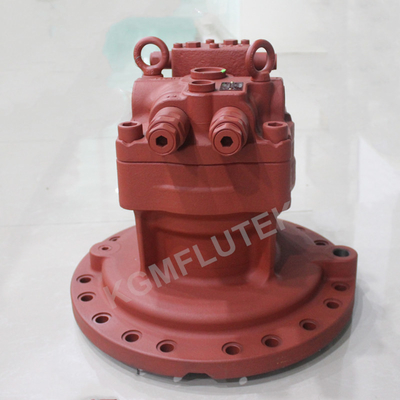

Volvo Excavators Parts EC240D Rotary Hydraulic Motor M5X180CHB-10A-2KB/270-149
Product Details Of Rotary Hydraulic Motor
| Volvo Excavators Parts EC240D Rotary Hydraulic Motor M5X180CHB-10A-2KB/270-149 | |
| Product name: | Rotary Hydraulic Motor |

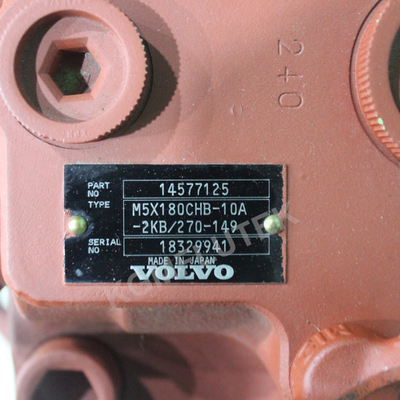

| Model: | M5X180CHB-10A-2KB/270-149 |
| Part name: | Hydraulic swing motor |
| Brand Name: | VOLVO |
| Place of Origin: | Japan |
| Condition: | 100% genuine brand New |
| Material: | Casting Iron + Steel |
| Application: | VOLVO Excavator |
| Applicable model: | EC240D |
| Usage: | Hydraulic Machinery Industry, Construction Machinery Parts |
| Dimension(L*W*H): | 60x60x60CM |
| Weight(KGS): | about 80KGS |
| Delivery time: | 1-3 Days after we received the payment |
| After Warranty Service: | Free Online Technical Support |
| Warranty: | 6 months |
| Guarantee: We will check the swing motor and send detail pictures to buyer to confirm before shipping. | |
M5X180CHB Hydraulic Swing Motor Spare Parts
We offer swing motor spare parts for M5X180. Spare parts include: Piston Shoe, Cylinder Block, Valve Plate, Retainer Plate/Set plate, Ball Guide, Shoe Plate/Thrust Plate, Friction Plate, Steel Plate, Drive Shaft, Press Pin, Guide Space, Coil spring and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement swing motor parts. Our parts can totally interchange with original Kawasaki, same specification and duration.
| PART DESCRIPTION | QTY |
| M5X180CHB PISTON SHOE | 9 |
| M5X180CHB CYLINDER BLOCK | 1 |
| M5X180CHB VALVE PLATE M | 1 |
| M5X180CHB RETAINER PLATE | 1 |
| M5X180CHB BALL GUIDE | 1 |
| M5X180CHB SHOE PLATE | 1 |
| M5X180CHB FRICTION PLATE | 2 |
| M5X180CHB STEEL PLATE | 3 |
| M5X180CHB DRIVE SHAFT | 1 |
| M5X180CHB PRESS PIN | 6 |
| M5X180CHB ALL GUIDE SPACER | 1 |
| M5X180CHB SPACER | 1 |
| M5X180CHB COIL SPRING | 1 |
| M5X180CHB SNAP RING | 1 |
Specifications-M2X / M5X Series Motor
| Model | M2X63 | M2X210 | M5X80 | M5X130 | M5X180 | M5X250 | |
| Displacement (cm3) | 64 | 210.1 | 79 | 129.2 | 180.1 | 250.1 | |
| Pressure (MPa) | Rated | 29.4 | 29.4 | 33 | 32.4 | 32.4 | 33 |
| Max | 34.3 | 34.3 | 40 | 39.2 | 39.2 | 40 | |
| Max speed (min-1) | 2,200 | 1,400 | 2,200 | 1,850 | 1,680 | 1,520 | |
M2X / M5X Series Swing Motors Features
1. Integrated Valving For Swing Function
The M2X / M5X Series Swing Motors are designed to operate two or five-section operator functions. The motors feature integrated valving for the swing function and are available in two voltage configurations.
2.Compact Design
The M2X / M5X Series Swing Motors are high-quality, long-lasting products that have been designed to withstand the rigors of high-volume commercial applications. The motors feature a compact design that allows you to easily integrate them into your existing equipment.
3.Directly Connected To Reduction Gear
The M2X / M5X series swing motors are used to drive the main swing. They can be directly connected to reduction gearboxes with high torque and low speed, so that the overall performance is good.
We offer wide range of hydraulic swing motors that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our swing motors are packed well in wooden case.
