Product Details:
|
| Features: | Directly Connected To Reduction Gear | Product Name: | Hydraulic Swing Motor Reducing Device |
|---|---|---|---|
| Type: | Construction Machinery Parts | Model: | M5X130CHB-10A-35D/280 |
| Condition: | Original Brand New | Application: | DOOSAN Excavator |
| Application Model: | DH225-7 | Keywords: | Hydraulic Swing Device |
| High Light: | M5X130CHB-10A-35D/280 Hydraulic Swing Motor,DH225-7 Hydraulic Swing Motor |
||

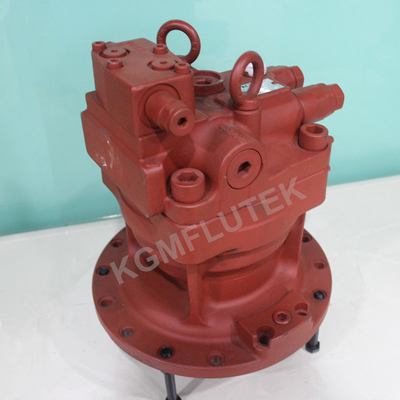

Hydraulic Swing Motor Reducing Device M5X130CHB-10A-35D/280 For DH225-7
Product Details
| Hydraulic Swing Motor Reducing Device M5X130CHB-10A-35D/280 For DH225-7 | |
| Product name: | Hydraulic Swing Motor Reducing Device |
| Model: | M5X130CHB-10A-35D/280 |
| Part name: | Hydraulic swing motor |
| Brand Name: | KAWASAKI KPM |
| Place of Origin: | Japan |
| Condition: | genuine brand New |
| Material: | Casting Iron & Steel |
| Application: | DOOSANExcavator |
| Applicable model: | DH225-7 |
| Usage: | Hydraulic Machinery Industry, Construction Machinery Parts, Construction works |
| Dimension(L*W*H): | 52x52x60CM |
| Weight(KGS): | about 80KGS |
| Delivery time: | 1-3 Days after we received the payment |
| After Warranty Service: | Free Online Technical Support |
| Warranty: | 6 months |
| Guarantee: We will check the swing motor and send detail pictures to buyer to confirm before shipping. | |
M5X130 Hydraulic Swing Motor Spare Parts
We offer swing motor spare parts for M5X180. Spare parts include: Piston Shoe, Cylinder Block, Valve Plate, Retainer Plate/Set plate, Ball Guide, Shoe Plate/Thrust Plate, Friction Plate, Steel Plate, Drive Shaft, Press Pin, Guide Space, Coil spring and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement swing motor parts. Our parts can totally interchange with original Kawasaki, same specification and duration.
| PART DESCRIPTION | QTY |
| M5X130 PISTON SHOE | 9 |
| M5X130 CYLINDER BLOCK | 1 |
| M5X130 VALVE PLATE M | 1 |
| M5X130 RETAINER PLATE | 1 |
| M5X130 BALL GUIDE | 1 |
| M5X130 SHOE PLATE | 1 |
| M5X130 FRICTION PLATE | 2 |
| M5X130 STEEL PLATE | 3 |
| M5X130 DRIVE SHAFT | 1 |
| M5X130 PRESS PIN | 6 |
| M5X130 ALL GUIDE SPACER | 1 |
| M5X130 SPACER | 1 |
| M5X130 COIL SPRING | 1 |
| M5X130 SNAP RING | 1 |
Specifications-M2X / M5X Series Motor
| Model | M2X63 | M2X210 | M5X80 | M5X130 | M5X180 | M5X250 | |
| Displacement (cm3) | 64 | 210.1 | 79 | 129.2 | 180.1 | 250.1 | |
| Pressure (MPa) | Rated | 29.4 | 29.4 | 33 | 32.4 | 32.4 | 33 |
| Max | 34.3 | 34.3 | 40 | 39.2 | 39.2 | 40 | |
| Max speed (min-1) | 2,200 | 1,400 | 2,200 | 1,850 | 1,680 | 1,520 | |
EXCAVATOR MODELS:
DOOSAN: DH55 DX60 DH60-7 DX75 DX80 DX120 DX150LC DH150LC-7 DH215-9 DH215-9E DH220LC-9E DH225LC-9 DX260LC DX300LC DH300LC-7 DX345LC DH370LC-9 DX380LC DX420LC DH420LC-7 DX500LC DH500LC-7 DX700LC
CATERPILLAR: 311C, 311DLRR, 312C, 312CL, 312D, 312DL, 313D, 314CLCR, 315CL, 315DL, 315D, 318CL, 318D, 320B, 320C, 320CL, 320D, 320DL, 321CLCR, 322D, 323D, 323DL, 324D, 326D, 325B, 325C, 325D, 329D, 329DL, 330B, 330C, 330D, 330CL, 330DL, 336B, 336C, 336D, 336DL, 345B, 345C, 345CL, 345D, 345DL, 349D, 349DL, 365C, 365CL, 374D, 374DL, 385C, 385CL, 390D, 390DL, 304CCR, 305.5, 305CCR, 305.5E, 305.5E2, 306, 306E, 306E2, 307, 307C, 307CSB, 307D, 307E, 307E2, 308, 308DCR, 308DCRSB, 308C, 308D,308E, 308E2, 313D2, 318D2, 320D2, 323D2, 326D2, 329D2, 330D2, 336D2, 349D2, 374F, 390F
KOBELCO: SK07N2, SK07-7, SK04-2, SK09, SK12, SK40, SK60, SK115, SK120-1/2/3, SK100-2/3, SK160, SK140, SK140-8, SK160 MARK 1V, SK200, SK200-3/5, SK200-6, SK200-8S, SK210LC-8, SK220, SK220-10, SK230-6, SK230-6, SK235SR, SK250-6E, SK260-8, SK250-8, SK250-10, SK260-10, SK260LC-8, SK300, SK320, SK330-6, SK330-8, SK350-6, SK350LC-8, SK380D, SK450-1, SK450-6, SK450-8, SK460-8, SK480-8
SUMITOMO: SH110,SH120, SH120-1/2/3/5,SH125X-3,SH130-3/5,SH135X-3,SH145,SH150,SH160,SH180,SH200-1/2/ 3,SH210-5,SH210A5,SH210LC-5,SH200LC-3,SH225X-3,SH260,SH265,SH280, SH300, SH300-2, SH330LC-3,SH330-3,SH350-5,SH350-3B,SH340,SH400,SH400-3,SH450HD-3B
We offer wide range of hydraulic swing motors that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our swing motors are packed well in wooden case.
