Product Details:
|
| Features: | Superior Performance | Product Name: | M2X170 Excavator Swing Device Motor |
|---|---|---|---|
| Type: | Construction Machinery | Model: | M2X170CHB-11A-28/280 |
| Condition: | 100% Genuine Brand New | Application: | Excavator |
| Application Model: | CAT330B | Keywords: | Excavator Swing Motor |
| High Light: | Kawasaki Excavator Swing Device Motor,CAT330B Excavator Swing Device Motor,M2X170CHB-11A-28/280 Swing Device Motor |
||

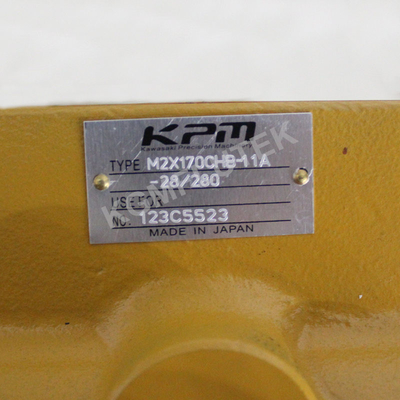

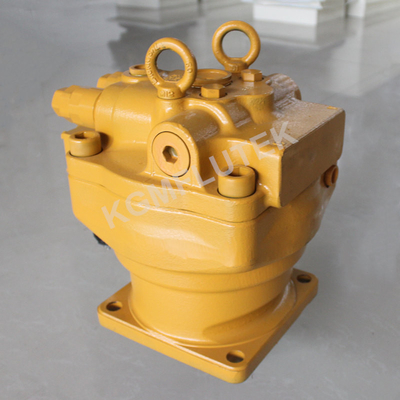

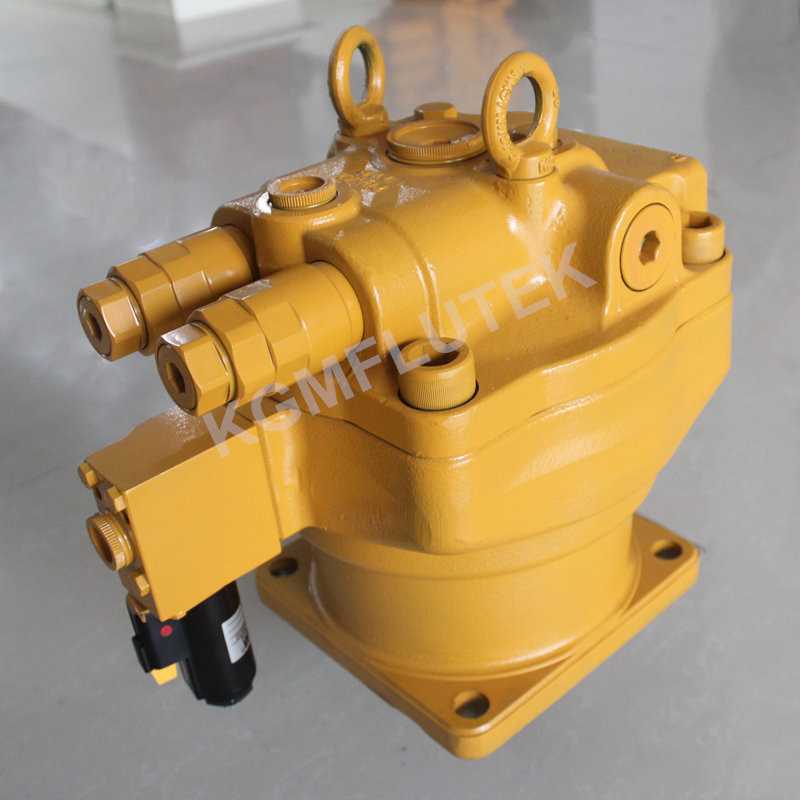

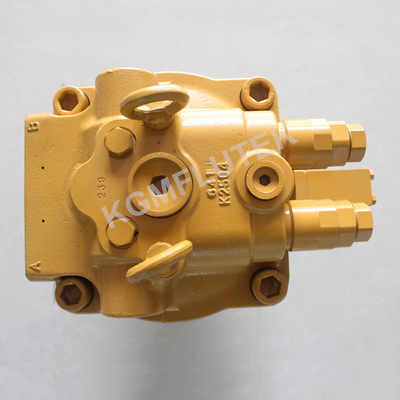

CAT330B Kawasaki Excavator Swing Device Motor M2X170CHB-11A-28/280
Product Details
| CAT330B Kawasaki Excavator Swing Device Motor M2X170CHB-11A-28/280 | |
| Product name: | M2X170 Excavator Swing Device Motor |
| Model: | M2X170CHB-11A-28/280 |
| Part name: | Hydraulic swing motor |
| Brand Name: | KAWASAKI KPM |
| Place of Origin: | Japan |
| Condition: | 100% genuine brand New |
| Material: | Casting Iron & Steel |
| Application: | Excavator |
| Applicable model: | CAT330B |
| Usage: | Hydraulic Machinery Industry, Construction Machinery Parts, Construction works |
| Dimension(L*W*H): | 52x52x60CM |
| Weight(KGS): | about 80KGS |
| Delivery time: | 1-3 Days after we received the payment |
| After Warranty Service: | Free Online Technical Support |
| Warranty: | 6 months |
| Guarantee: We will check the swing motor and send detail pictures to buyer to confirm before shipping. | |
M2X170 Hydraulic Swing Motor Spare Parts
We offer swing motor spare parts for M2X170. Spare parts include: Piston Shoe, Cylinder Block, Valve Plate, Retainer Plate/Set plate, Ball Guide, Shoe Plate/Thrust Plate, Friction Plate, Steel Plate, Drive Shaft, Press Pin, Guide Space, Coil spring and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement swing motor parts. Our parts can totally interchange with original Kawasaki, same specification and duration.
| PART DESCRIPTION | QTY |
| M2X170 PISTON SHOE | 9 |
| M2X170 CYLINDER BLOCK | 1 |
| M2X170 VALVE PLATE M | 1 |
| M2X170 RETAINER PLATE | 1 |
| M2X170 BALL GUIDE | 1 |
| M2X170 SHOE PLATE | 1 |
| M2X170 FRICTION PLATE | 2 |
| M2X170 STEEL PLATE | 3 |
| M2X170 DRIVE SHAFT | 1 |
| M2X170 PRESS PIN | 6 |
| M2X170 ALL GUIDE SPACER | 1 |
| M2X170 SPACER | 1 |
| M2X170 COIL SPRING | 1 |
| M2X170 SNAP RING | 1 |
Specifications-M2X / M5X Series Motor
| Model | M2X63 | M2X210 | M5X80 | M5X130 | M5X180 | M5X250 | |
| Displacement (cm3) | 64 | 210.1 | 79 | 129.2 | 180.1 | 250.1 | |
| Pressure (MPa) | Rated | 29.4 | 29.4 | 33 | 32.4 | 32.4 | 33 |
| Max | 34.3 | 34.3 | 40 | 39.2 | 39.2 | 40 | |
| Max speed (min-1) | 2,200 | 1,400 | 2,200 | 1,850 | 1,680 | 1,520 | |
ADAVANTAGES:
1. HIGH RELIABILITY
Integrated structure with Axial Piston Motor and Reducer.
2. HIGH EFFICIENCY
The axial piston motor maintains highefficiency.
3. TWO-SPEED FUNCTION
Exchange in high speed and strong torque.
4. PARKING BRAKE
Included as standard for safety
We offer wide range of hydraulic swing motors that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our swing motors are packed well in wooden case.
Contact Person: Ms. Jacy Cai
Tel: +8619924353627
