Product Details:
|
| Features: | High Efficiency | Product Name: | ZX330-1 Swing Hydraulic Motor |
|---|---|---|---|
| Type: | Excavator Hydraulic Parts | Model: | M5X180CHB-12A-51A/260-169 |
| Condition: | Genuine New | Application: | Hitachi Excavator |
| Application Model: | ZX330-1 | Stock: | Available |
| High Light: | ZX330-1 Swing Hydraulic Motor,M5X180CHB-12A-51A/260-169 Swing Hydraulic Motor,ZX330-1 Excavator Swing Motor |
||

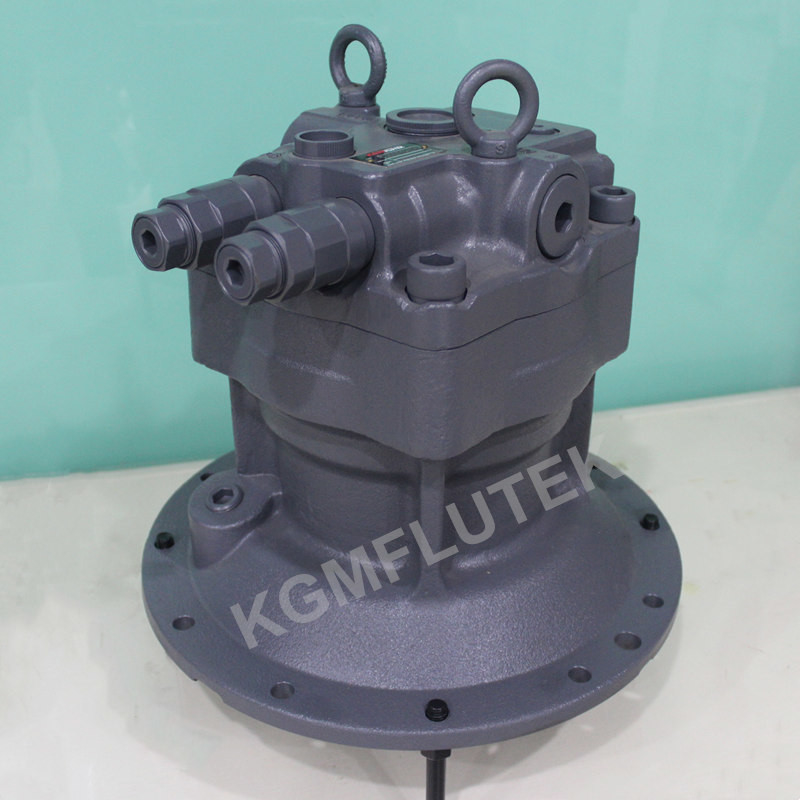

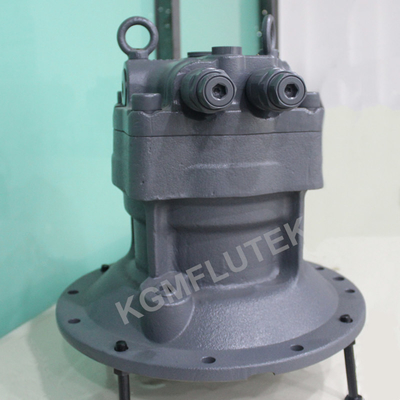

ZX330-1 Swing Hydraulic Motor Without Gearbox M5X180CHB-12A-51A/260-169
Product Details
| ZX330-1 Swing Hydraulic Motor Without Gearbox M5X180CHB-12A-51A/260-169 | |
| Product name: | ZX330-1 Swing Hydraulic Motor |

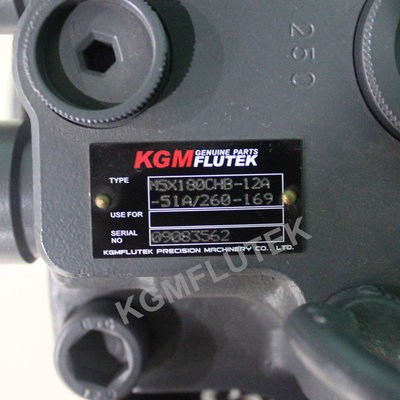

| Model: | M5X180CHB-12A-51A/260-169 |
| Part name: | Hydraulic swing motor |
| Brand Name: | KGM FLUTEK |
| Place of Origin: | Japan |
| Condition: | Genuine brand New |
| Material: | Casting Iron & Steel |
| Application: | Hitachi Excavator |
| Applicable model: | ZX330-1 |
| Usage: | Hydraulic Machinery Industry, Construction Machinery Parts |
| Dimension(L*W*H): | 52x52x60CM |
| Weight(KGS): | about 80KGS |
| Delivery time: | 1-3 Days after we received the payment |
| After Warranty Service: | Free Online Technical Support |
| Warranty: | 6 months |
| Guarantee: We will check the swing motor and send detail pictures to buyer to confirm before shipping. | |
M5X180 Hydraulic Swing Motor Spare Parts
We offer swing motor spare parts for M5X180. Spare parts include: Piston Shoe, Cylinder Block, Valve Plate, Retainer Plate/Set plate, Ball Guide, Shoe Plate/Thrust Plate, Friction Plate, Steel Plate, Drive Shaft, Press Pin, Guide Space, Coil spring and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement swing motor parts. Our parts can totally interchange with original Kawasaki, same specification and duration.
| PART DESCRIPTION | QTY |
| M5X180 PISTON SHOE | 9 |
| M5X180 CYLINDER BLOCK | 1 |
| M5X180 VALVE PLATE M | 1 |
| M5X180 RETAINER PLATE | 1 |
| M5X180 BALL GUIDE | 1 |
| M5X180 SHOE PLATE | 1 |
| M5X180 FRICTION PLATE | 2 |
| M5X180 STEEL PLATE | 3 |
| M5X180 DRIVE SHAFT | 1 |
| M5X180 PRESS PIN | 6 |
| M5X180 ALL GUIDE SPACER | 1 |
| M5X180 SPACER | 1 |
| M5X180 COIL SPRING | 1 |
| M5X180 SNAP RING | 1 |
Specifications-M2X / M5X Series Motor
| Model | M2X63 | M2X210 | M5X80 | M5X130 | M5X180 | M5X250 | |
| Displacement (cm3) | 64 | 210.1 | 79 | 129.2 | 180.1 | 250.1 | |
| Pressure (MPa) | Rated | 29.4 | 29.4 | 33 | 32.4 | 32.4 | 33 |
| Max | 34.3 | 34.3 | 40 | 39.2 | 39.2 | 40 | |
| Max speed (min-1) | 2,200 | 1,400 | 2,200 | 1,850 | 1,680 | 1,520 | |
We offer wide range of hydraulic swing motors that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our swing motors are packed well in wooden case.
