Product Details:
|
| Features: | Compact Design | Product Name: | Slewing Device For Sany SY335 |
|---|---|---|---|
| Type: | Excavator Hydraulic Parts | Model: | M5X180CHB-10A-3NA/265 |
| Condition: | 100% Original Brand New | Application: | Sany Excavator |
| Application Model: | SY335 | After-sales Service Provided: | Online Support |
| High Light: | M5X180CHB-10A-3NA/265 Excavator Swing Motor,Sany SY335 Excavator Swing Motor,Sany Excavator Swing Motor |
||

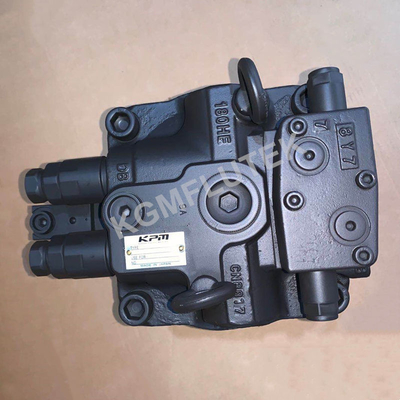

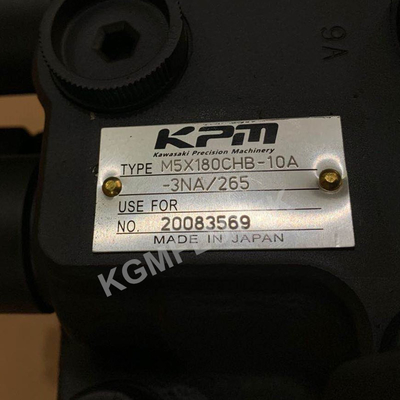

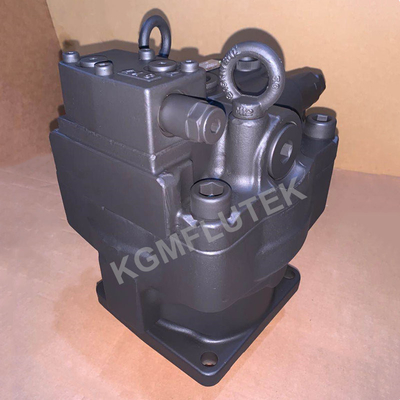

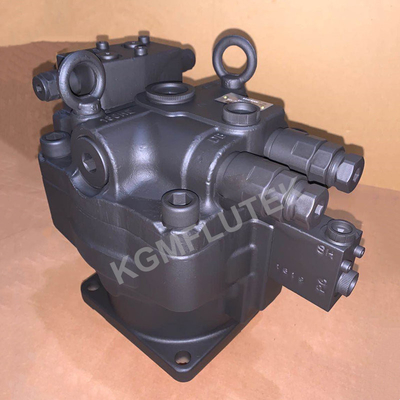

Swing Motor M5X180CHB-10A-3NA/265 Slewing Device For Sany SY335
Product Details
| Swing Motor M5X180CHB-10A-3NA/265 Slewing Device For Sany SY335 | |
| Product name: | Slewing Device For Sany SY335 |
| Model: | M5X180CHB-10A-3NA/265 |
| Part name: | Hydraulic swing motor |
| Brand Name: | KAWASAKI KPM |
| Place of Origin: | Japan |
| Condition: | 100% original brand New |
| Material: | Casting Iron & Steel |
| Application: | Sany Excavator |
| Applicable model: | SY335 |
| Usage: | Hydraulic Machinery Industry, Construction Machinery Parts |
| Dimension(L*W*H): | 52x52x60CM |
| Weight(KGS): | about 85KGS |
| Delivery time: | 1-3 Days after we received the payment |
| After Warranty Service: | Free Online Technical Support |
| Warranty: | 6 months |
| Guarantee: We will check the swing motor and send detail pictures to buyer to confirm before shipping. | |
M5X180 Hydraulic Swing Motor Spare Parts
We offer swing motor spare parts for M5X180. Spare parts include: Piston Shoe, Cylinder Block, Valve Plate, Retainer Plate/Set plate, Ball Guide, Shoe Plate/Thrust Plate, Friction Plate, Steel Plate, Drive Shaft, Press Pin, Guide Space, Coil spring and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement swing motor parts. Our parts can totally interchange with original Kawasaki, same specification and duration.
| PART DESCRIPTION | QTY |
| M5X180 PISTON SHOE | 9 |
| M5X180 CYLINDER BLOCK | 1 |
| M5X180 VALVE PLATE M | 1 |
| M5X180 RETAINER PLATE | 1 |
| M5X180 BALL GUIDE | 1 |
| M5X180 SHOE PLATE | 1 |
| M5X180 FRICTION PLATE | 2 |
| M5X180 STEEL PLATE | 3 |
| M5X180 DRIVE SHAFT | 1 |
| M5X180 PRESS PIN | 6 |
| M5X180 ALL GUIDE SPACER | 1 |
| M5X180 SPACER | 1 |
| M5X180 COIL SPRING | 1 |
| M5X180 SNAP RING | 1 |
Features
1. Integrated Valving For Swing Function
The M2X / M5X Series Swing Motors are designed to operate two or five-section operator functions. The motors feature integrated valving for the swing function and are available in two voltage configurations.
2. Compact Design
The M2X / M5X Series Swing Motors are high-quality, long-lasting products that have been designed to withstand the rigors of high-volume commercial applications. The motors feature a compact design that allows you to easily integrate them into your existing equipment.
3. Directly Connected To Reduction Gear
The M2X / M5X series swing motors are used to drive the main swing. They can be directly connected to reduction gearboxes with high torque and low speed, so that the overall performance is good.
Specifications-M2X / M5X Series Motor
| Model | M2X63 | M2X210 | M5X80 | M5X130 | M5X180 | M5X250 | |
| Displacement (cm3) | 64 | 210.1 | 79 | 129.2 | 180.1 | 250.1 | |
| Pressure (MPa) | Rated | 29.4 | 29.4 | 33 | 32.4 | 32.4 | 33 |
| Max | 34.3 | 34.3 | 40 | 39.2 | 39.2 | 40 | |
| Max speed (min-1) | 2,200 | 1,400 | 2,200 | 1,850 | 1,680 | 1,520 | |
We offer wide range of hydraulic swing motors that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our swing motors are packed well in wooden case.
