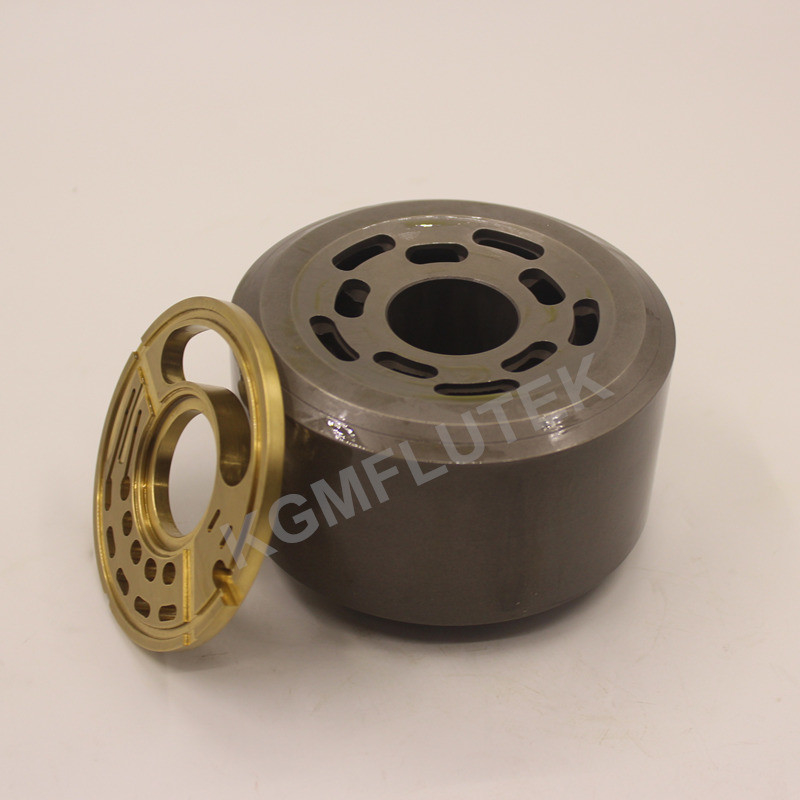

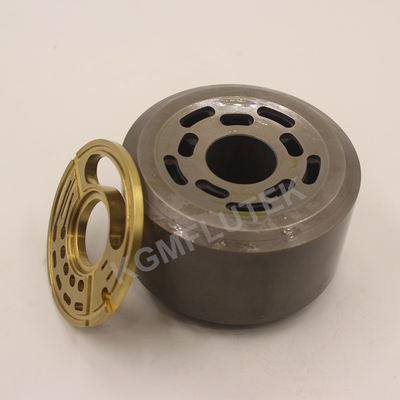

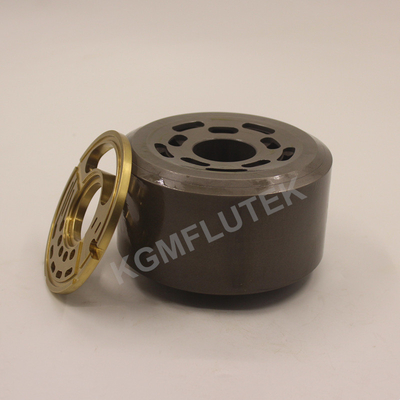

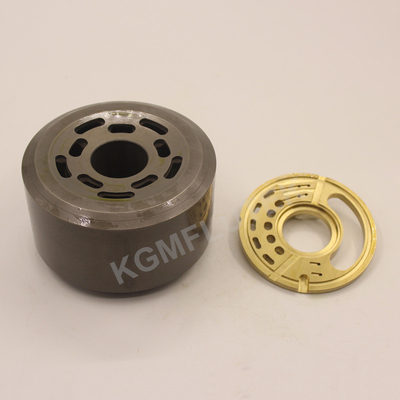

Product Details:
|
| Product Name: | Cylinder Block Valve Plate | Model: | K3SP36 |
|---|---|---|---|
| Type: | Hydraulic Parts | Material: | Alloy Copper+carbon Steel |
| Surface Technics: | Precision Grinding And Polishing | Application: | Crawler Excavator |
| Condition: | 100% Brand New | Packing: | Original Box |
| Highlight: | Hydraulic Cylinder Block Valve Plate,K3SP36 Cylinder Block Valve Plate,Alloy Copper Cylinder Block Valve Plate |
||
Cylinder Block And Valve Plate K3V180 K5V200 Excavator Hydraulic Parts
Product Details
| Type | Hydraulic parts |
| Part Name | Cylinder Block Valve Plate |
| Pump Model | K3SP36 |
| Brand Name | KPM |
| Place of Origin | Japan |
| Application | Crawler Excavator |
| Material | Alloy copper+carbon steel |
| Surface technics | Precision grinding and polishing |
| Usage | Hydraulic Machinery Industry, Construction Machinery Parts |
| Product Service | Checking according to customers' part number |
| Delivery Time | 1-3 days after we received the payment |
| Shipping way | By Express: DHL Fedex TNT EMS UPS or By Air / Sea |
| Payment | T/T, West Union, Alipay |
| MOQ | 1 set |
| Packing | 1)Original packing |
| 2)Neutral package & wooden package | |
| 3)Carton package+pallet | |
| 4)Wooden package+pallet | |
| 5)As customer request | |
| Guarantee: We will check the products and send detail pictures to buyer to confirm before shipping. | |
K3SP36C Hydraulic Pump Spare Parts
| Item No. | Name & Description | QTY (pcs) |
| 1 | K3SP36C DRIVE SHAFT | 2 |
| 2 | K3SP36C BALL OF SWASH PLATE | 2 |
| 3 | K3SP36C SUPPORT | 1 |
| 4 | K3SP36C SWASH PLATE | 1 |
| 5 | K3SP36C TILTING PIN | 1 |
| 6 | K3SP36C SERVO PISTON | 1 |
| 7 | K3SP36C PISTON SHOE | 10 |
| 8 | K3SP36C SET PLATE | 1 |
| 9 | K3SP36C BALL GUIDE | 1 |
| 10 | K3SP36C COIL SPRING | 10 |
| 11 | K3SP36C CYLINDER BLOCK | 1 |
| 12 | K3SP36C VALVE PLATE | 1 |
Features
The K3SP36C swash plate variable piston pump for open hydraulic system, the total power control mode, used in construction machinery, especially suitable for 6 to 8 tons excavators. The piston pump has high pressure, compact design, light weight, wide range of applications, convenient installation, low noise and easy maintenance features.
| Model | K3SP36C |
| Displacement | 36x2 mL/r |
| Rotation(viewed from shaft end) | R:clockwise L:counter clockwise |
| Rated speed | 2000 r/min |
| Max. speed | 2300 r/min |
| Inlet pressure | 0.05~0.2 MPa |
| Rated pressure | 28 MPa |
| Max. pressure | 30 MPa |
| Recommend oil | L-HM46(summer) L-HM32(winter) |
| Housing pressure | ≤0.15 MPa |
| Gear pump displ. | 9 mL/r |
| Max. working pressure for gear pump | 5 MPa |
ADVANTAGES
1. Completely inerchangeable with original
2. This pump is for open loop hydraulic system
3. The total power control mode
4. Used in construction machinery, especially suitable for 6 to 8 tons excavators
5. The flow can be continuously adjusted by mechanical adjustment of the angle of the swash plate
6. It features high pressure,compact structure,light weight,convenient installation,low noise,and easy maintenance
