Product Details:
|
| Product Name: | K7V Series Axial Piston Pumps | Usage: | Construction Machinery Spare Parts |
|---|---|---|---|

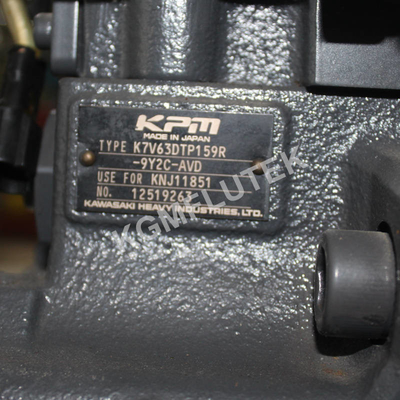

| Model: | K7V63DTP159R-9Y2C-AVD | Part Number: | KNJ11851 |
| Application: | SUMITOMO Excavator | Application Model: | SH130-5 |
| Material: | Casting Iron + Steel | Function: | High Reliavility |
| High Light: | K7V Hydraulic Axial Piston Pump,SH130-5 Hydraulic Axial Piston Pump,K7V63DTP159R-9Y2C-AVD Excavator Hydraulic Pump |
||

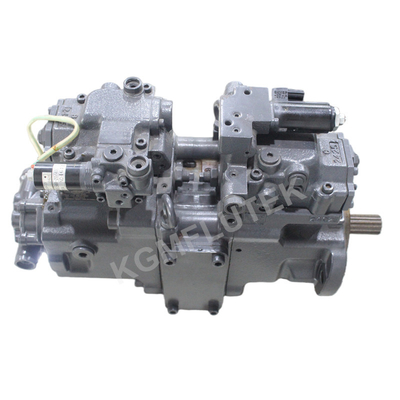

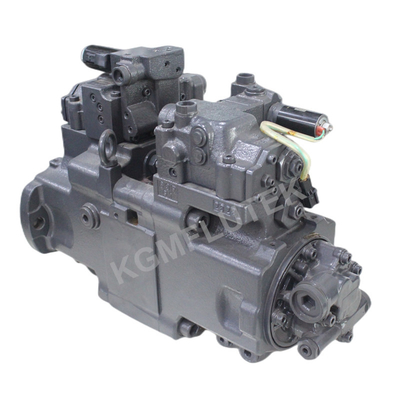

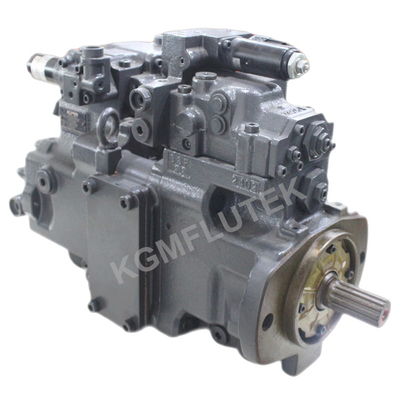

K7V Series Axial Piston Pumps K7V63DTP159R-9Y2C-AVD For SUMITOMO SH130-5
Product Details
K7V Series Axial Piston Pumps K7V63DTP159R-9Y2C-AVD For SUMITOMO SH130-5 | |
| Product name: | K7V Series Axial Piston Pumps |
| Model: | K7V63DTP159R-9Y2C-AVD |
| Part number: | KNJ11851 |
| Brand Name: | KPM |
| Place of Origin: | Japan |
| Condition: | 100% Original Brand New |
| Material: | Good quality Casting Iron & Steel |
| Application: | SUMITOMO Excavator |
| Applicable Model: | SH130-5 |
| Usage: | Hydraulic Machinery Industry, Excavator hydraulic parts,Construction Machinery Parts |
| Packing: | Wooden case |
| Package Size: | 75*30*45CM |
| Weight: | about 100KGS |
| Payment Term: | T/T, Western Union, Paypal, Wechat, Alipay |
| Shiping method: | By air, by sea, by express (DHL/ UPS/ FEDEX) |
| Delivery time: | 1-3 Days after received the payment |
| After Warranty Service: | Online support and technical video support |
| Warranty: | 6 months |
| Guarantee: We will check the hydraulic pump and send detail pictures to buyer to confirm before shipping. | |
K7V63 Hydraulic Pump Spare Parts
We offer hydraulic pump spare parts, range from K7V63, K7V125, K7V140. Spare parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Thrust Plate, Retainer Plate, Ball Guide, Piston Shoe, Cylinder Block, Valve Plate and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement piston pump parts. Precision piston pump parts can totally interchange with original Kawasaki, same specification and duration.
| Item No. | Name & Description | QTY (pcs) |
| 1 | K7V63 DRIVE SHAFT | 1 |
| 2 | K7V63 SUPPORT | 1 |
| 3 | K7V63 SWASH PLATE | 1 |
| 4 | K7V63 THRUST PLATE | 1 |
| 5 | K7V63 RETAINER PLATE | 1 |
| 6 | K7V63 BALL GUIDE | 1 |
| 7 | K7V63 COIL SPRING | 9 |
| 8 | K7V63 PISTON SHOE | 9 |
| 9 | K7V63 CYLINDER BLOCK | 1 |
| 10 | K7V63 VALVE PLATE | 1 |
Features
K7V series: K7V63, K7V125, K7V140
The K7V series are variable displacement axial piston pumps of swash plate design, suitable for use in mobile applications such as Excavators, Cranes, etc. With the Kawasaki's latest technologies for improving efficiency and lowering noise, they achieve the world's top-level pump efficiency and low noise which contribute to energy saving on applications and comfortable working environment. A long life is obtained by adopting large capacity of bearing and thicker shaft which reduces the load on the edge of bearing rollers. Power density is 1.5 times higher than K3V series.
| Model | K7V63 | K7V125 | K7V140 | |
|---|---|---|---|---|
| Displacement (cm3) | 65 | 130 | 140 | |
| Pressure (MPa) | Rated | 35 | ||
| Peak | 40 | |||
| Max Self Priming Speed (min-1) | 2,650 | 2,380 | 2,200 | |
Advantages
1. 100% Product quality protection | 6.Mix color & design for you winner market | ||
2. 100% On-time shipment protection | 7.More than 10 years' manufacture for hydraulic spare parts | ||
3. 100% Payment protection | 8 .more than 10+ years for export experience | ||
4.100% inspection before shipment | 9.All products passed ISO9001 | ||
5. Most Popular "excavator parts" factory | 10.One -stop service expariene more than 10+ years. |
We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our Hydraulic Pumps are packed well in wooden case.
