Product Details:
|
| Product Name: | Kawasaki Axial Piston Pump | Usage: | Construction Machinery Parts |
|---|---|---|---|
| Model: | K3V140DTP151R-9NG9-B | Part Number: | 60114325 |
| Application: | Sany Excavator | Application Model: | SY280 |
| Material: | Cast Iron + Steel | Condition: | 100% Genuine Brand New |
| High Light: | Excavator Axial Piston Pump,60114325 Axial Piston Pump,K3V140DTP151R-9NG9-B Excavator Hydraulic Pump |
||

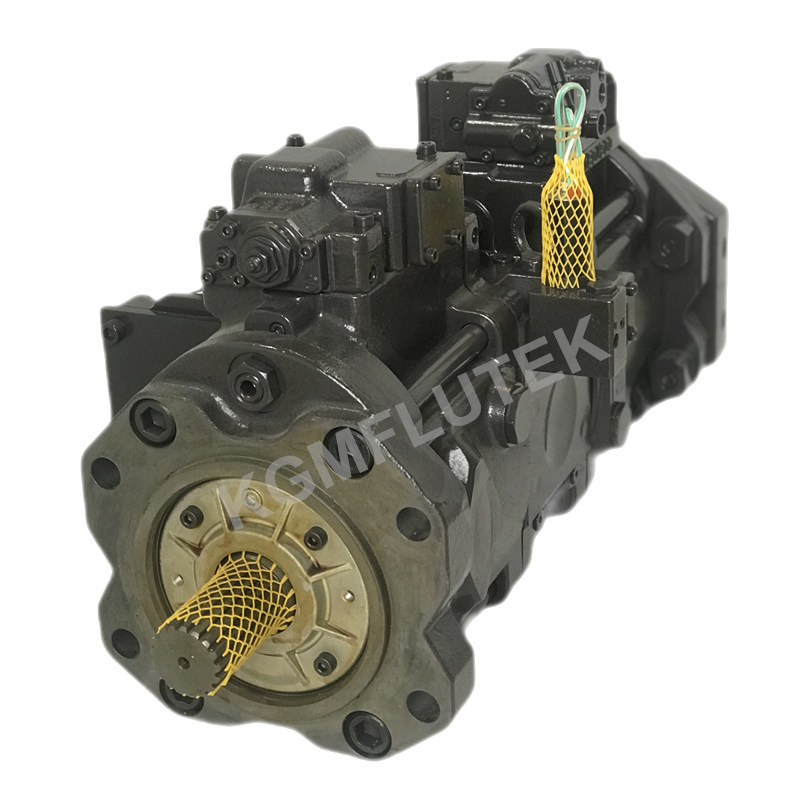

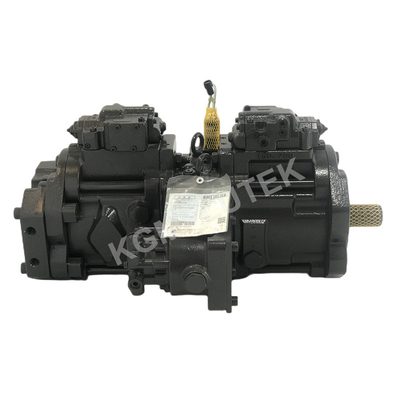

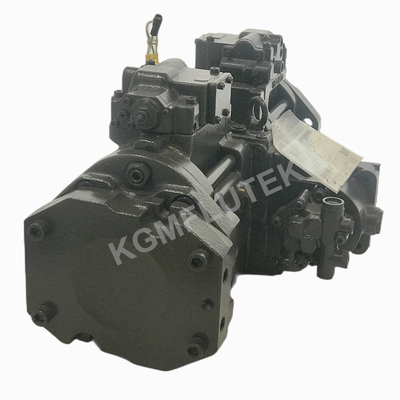

60114325 SANY SY280 Excavator Kawasaki Axial Piston Pump K3V140DTP151R-9NG9-B
Product Details
| 60114325 SANY SY280 Excavator Kawasaki Axial Piston Pump K3V140DTP151R-9NG9-B | |||
|
Product Name:
|
Kawasaki Axial Piston Pump
|
Model Number:
|
K3V140DTP151R-9NG9-B
|
| Brand Name: | KAWASAKI KPM | Place Of Origin: | Japan |
|
Condition:
|
100% Original Brand New
|
Delivery:
|
Within 1-3 days
|
|
Inventory:
|
In stock
|
Material: | Iron & Steel |
|
Packing:
|
Wooden Case
|
Payment Term:
|
T/T, Western Union, Paypal
|
| Application: | Sany Excavator | Applicable model: | SY280 |
| Weight: | 195KGS | Dimension(L*W*H): | 98X50X63CM |
| Warranty: | 6 months | After Warranty Service: | Online support, Video support |
|
Guarantee: We will check the pumps and send detail pictures to buyer to confirm before shipping.
|
|||
K3V140 Hydraulic Pump Spare Parts
We Provide Hydraulic Pump Spare Parts. Spare parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Yoke, Thrust Plate, Shoe Plate, Retainer Plate, Set Plate, Ball Guide, Piston Shoe, Pistons, Cylinder Block, Barrel, Valve Plate, Port Plate and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement piston pump parts. Precision piston pump parts can totally interchange with original Kawasaki, same specification and duration. 100% Compatible With Original Kawasaki, Good Quality Piston Pump Parts And More Cost Effective Price.
| Item No. | Name & Description | QTY (pcs) | Remark |
| 1 | K3V140 DRIVE SHAFT | 1 | SHAFT |
| 2 | K3V140 SUPPORT | 1 | |
| 3 | K3V140 SWASH PLATE | 1 | YOKE |
| 4 | K3V140 THRUST PLATE | 1 | SHOE PLATE |
| 5 | K3V140 RETAINER PLATE | 1 | SET PLATE |
| 6 | K3V140 BALL GUIDE | 1 | |
| 7 | K3V140 COIL SPRING | 1 | |
| 8 | K3V140 PISTON SHOE | 9 | PISTONS |
| 9 | K3V140 WASHER | 1 | |
| 10 | K3V140 CYLINDER BLOCK | 1 | BARREL |
| 11 | K3V140 VALVE PLATE | 1 | PORT PLATE |
Features
1. With new technology the K3V series has realized higher power density.
2. K3V series can cope with enlargement of displacement despite the same installation dimensions and regulator variations as K3V’s.
3. K3V series pumps have realized higher reliability and long life so as to meet requirement of larger torque.
| Model | K3V63 | K3V112 | K3V140 | K3V180 | K3V280 | |
| Displacement /cm3 | 63 | 112 | 140 | 180 | 280 | |
| Pressure MPa
(kgf/cm2)
|
Rated | 34.3 (350) | ||||
| Peak | 39.2 (400) | |||||
| Speed
/min-1
|
Max.for self priming | 2,650 | 2,360 | 2,150 | 1,950 | 1,600 |
| Max | 3,250 | 2,700 | 2,500 | 2,300 | 2,300 | |
Sany hydraulic pump models
| SY200-6/SY210-6/SY215-6 | K3V112DTP-9TCM |
| SY215-8 | K3V112DTP-9T8L |
| SY215-9 | K3V112DTP-0E11 |
| SY235-8 | K5V140DTP-9T1L |
| SY235-9 | K5V140DTP-0E01 |
| SY285 | K3V140DT-9TCM |
| SY305 | K5V160DTP-9T16 |
| SY335 | K5V200DTH-9N4H |
| SY365 | K5V160DTH1X4R-9T16-BV |
| SY215-10 | K7V125DTP-0E05 |
| SY235-10/SY245-10/SY265-10 | K7V125DTP-0E09 |
| SY150 | K3V112DP-9NG9 |
| SY200/SY220 | K5V140DTP-177R-9N19 |
| SY205C | K3V112DTP1Y9R-9P59-AV |
| SY465 | K5V200DTH-0E70 |
| SY485 | K5V212DPH-0E81 |
| SY280 | K3V140DTP-9NG9 |
| SY75 | K3VL80/B 1ARSMP01 |
| SY465 | K5V200DTH1SXR-0E70-BV |
|
Main Products
|
||||
| 1. Hydraulic parts | hydraulic pump, swing motor assy, travel motor assy, gearbox, main control valve, foot valve, operating od assy, pilot pump, regulator, center joint, relief valve, bearing, hydraulic spare parts, gear, etc. |
|||
|
2. engine parts
|
cylinder block, cylinder head, liner kits, con rod, engine bearing, in/ex valve, valve seat, gasket kit, head gaskit, crankshaft, cam shaft,water pump, fuel pump, oil pump, turbocharger, nozzle, oil cooler assy, manifold exhaust etc |
|||
|
3. Seal kits
|
boom/arm/bucket cylinder seal kit, hydraulic pump seal kit, swing motor seal kit,travel motor seal kit, control valve seal kit, adjuster seal kit, center joint seal kit,gear pump seal kit, regulator seal kit, breaker seal kit, bulldozer seal kit etc. |
|||
| 4. Rubber parts | coupling,engine cushion,belt | |||
| 5. Gear parts |
travel,swing motor:sun gear,shaft,carrier assy,housing,hub,cover
|
|||
We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our Hydraulic Pumps are packed well in wooden case.
