Product Details:
|
| Product Name: | SY750 Kawasaki Hydraulic Pump | Usage: | Hydraulic Machinery Industry |
|---|---|---|---|

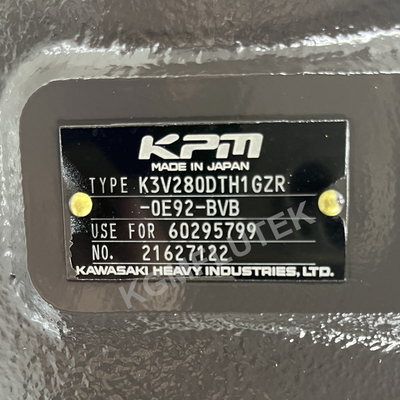

| Model: | K3V280DTH1GZR-OE92-BVB | Part Number: | 60295799 |
| Application: | Sany Excavator | Application Model: | SY750 |
| Material: | Casting Iron | Condition: | 100% Original New |
| High Light: | SY750 Excavator Hydraulic Pump,K3V280DTH1GZR-OE92-BVB Excavator Hydraulic Pump,Heavy Duty Excavator Hydraulic Pump |
||

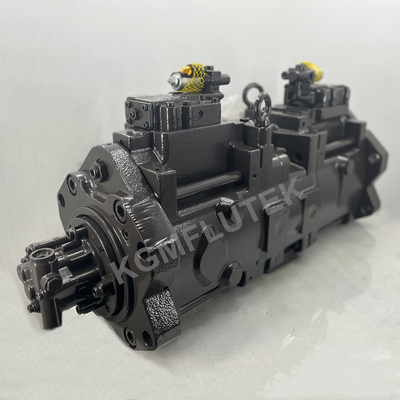

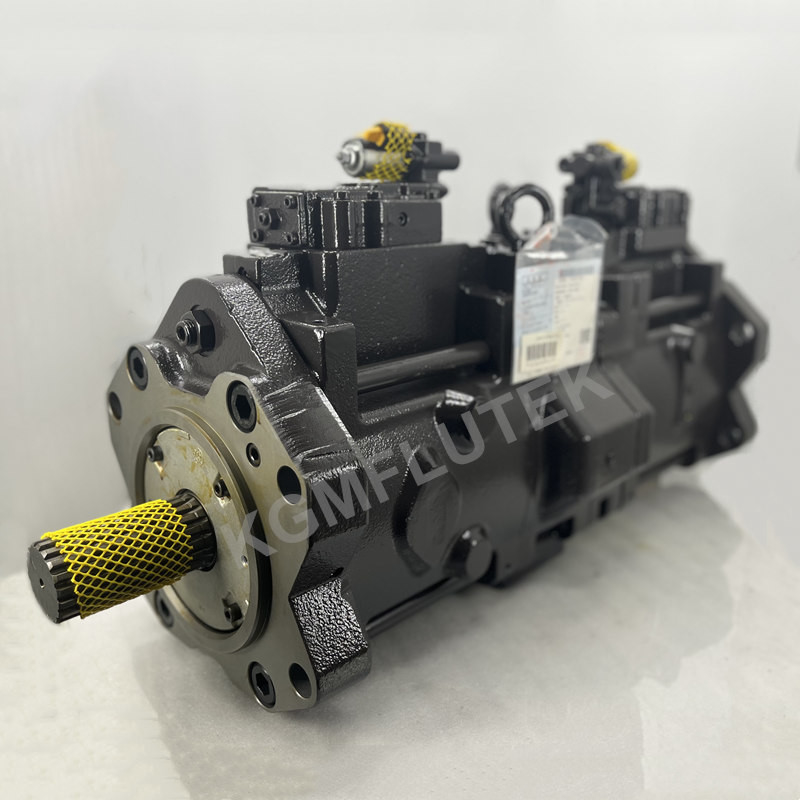

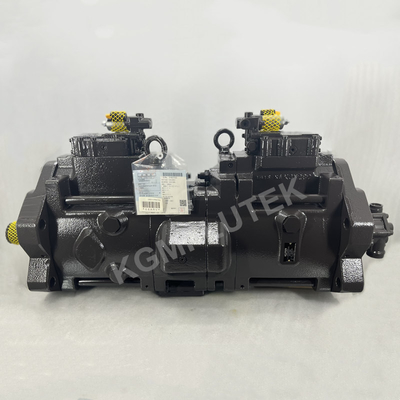

Heavy Duty Excavator SY750 Kawasaki Hydraulic Pump K3V280DTH1GZR-OE92-BVB
Product Details
Heavy Duty Excavator SY750 Kawasaki Hydraulic Pump K3V280DTH1GZR-OE92-BVB | |
| Product name: | SY750 Kawasaki Hydraulic Pump |
| Model: | K3V280DTH1GZR-OE92-BVB |
| Part number: | 60295799 |
| Brand Name: | KPM |
| Place of Origin: | Japan |
| Condition: | 100% Original New |
| Material: | Good quality Casting Iron & Steel |
| Application: | Sany Excavator |
| Applicable Model: | SY750 |
| Usage: | Hydraulic Machinery Industry, Construction Machinery Parts |
| Packing: | Wooden case |
| Package Size: | 95*46*63CM |
| Weight: | 350KGS |
| Payment Term: | T/T, Paypal, Western Union, Wechat, Alipay |
| Delivery time: | 1-3 Days after received the payment |
| After Warranty Service: | Online support and technical support |
| Warranty: | 6 months |
| Guarantee: We will check the hydraulic pump and send detail pictures to buyer to confirm before shipping. | |
K3V280 Hydraulic Pump Spare Parts
We offer K3V series hydraulic pump parts, range from K3V63, K3V112, K3V140, K3V180, K3V280. Spare parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Yoke, Thrust Plate, Shoe Plate, Retainer Plate, Set Plate, Ball Guide, Piston Shoe, Pistons, Cylinder Block, Barrel, Valve Plate, Port Plate and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement piston pump parts. Precision piston pump parts can totally interchange with original Kawasaki, same specification and duration.
| Item No. | Name & Description | QTY (pcs) |
| 1 | K3V280 DRIVE SHAFT/SHAFT | 1 |
| 2 | K3V280 SUPPORT | 1 |
| 3 | K3V280 SWASH PLATE/YOKE | 1 |
| 4 | K3V280 THRUST PLATE/SHOE PLATE | 1 |
| 5 | K3V280 RETAINER PLATE/SET PLATE | 1 |
| 6 | K3V280 BALL GUIDE | 1 |
| 7 | K3V280 COIL SPRING | 1 |
| 8 | K3V280 PISTON SHOE/PISTONS | 9 |
| 9 | K3V280 WASHER | 1 |
| 10 | K3V280 CYLINDER BLOCK/BARREL | 1 |
| 11 | K3V280 VALVE PLATE/PORT PLATE | 1 |
Features
1. With new technology the K3V series has realized higher power density.
2. K3V series can cope with enlargement of displacement despite the same installation dimensions and regulator variations as K3V’s.
3. K3V series pumps have realized higher reliability and long life so as to meet requirement of larger torque.
| Model | K3V63 | K3V112 | K3V140 | K3V180 | K3V280 | |
| Displacement /cm3 | 63 | 112 | 140 | 180 | 280 | |
| Pressure MPa (kgf/cm2) | Rated | 34.3 (350) | ||||
| Peak | 39.2 (400) | |||||
| Speed /min-1 | Max.for self priming | 2,650 | 2,360 | 2,150 | 1,950 | 1,600 |
| Max | 3,250 | 2,700 | 2,500 | 2,300 | 2,300 | |
We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our Hydraulic Pumps are packed well in wooden case.
