Product Details:
|
| Product Name: | K5V Kawasaki Hydraulic Pump | Usage: | Construction Machinery Parts |
|---|---|---|---|
| Model: | K5V200DTH1SXR-0E70-BV | Part Number: | 60217062 |
| Application: | Excavator | Application Model: | Sany SY465 |
| Material: | Casting Iron+Steel | Condition: | 100% Original Brand New |
| High Light: | SY465 Excavator Hydraulic Pump,K5V200DTH1SXR-0E70-BV Excavator Hydraulic Pump |
||

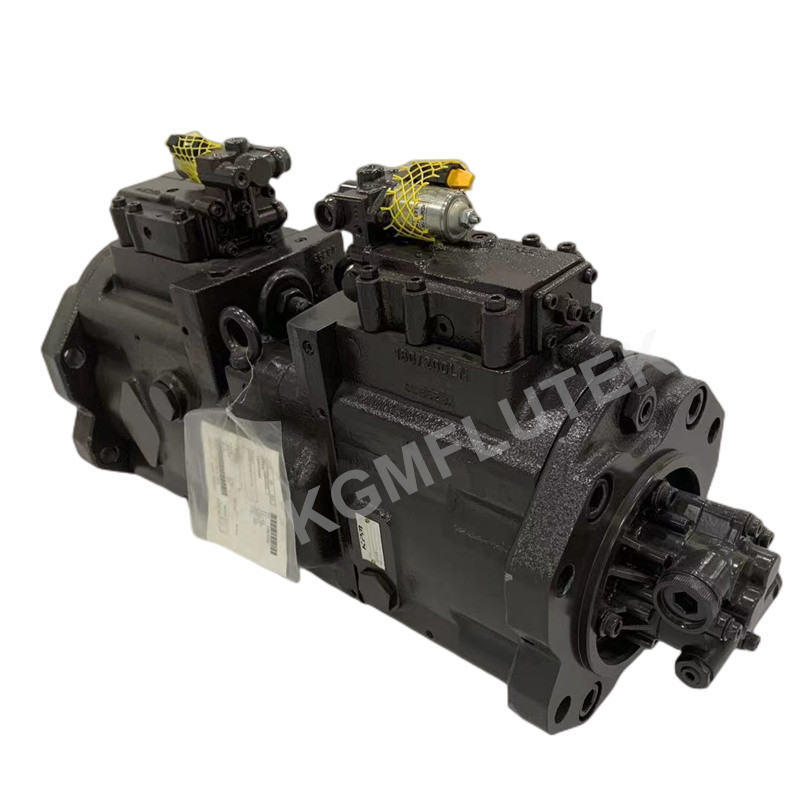

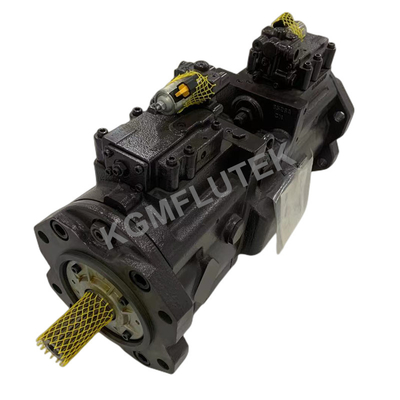

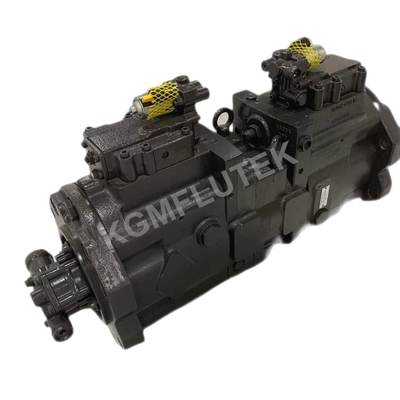

Sany SY465 New Style K5V Kawasaki Hydraulic Pump K5V200DTH1SXR-0E70-BV
Product Details
|
Sany SY465 New Style K5V Kawasaki Hydraulic Pump K5V200DTH1SXR-0E70-BV |
|
| Product name: | K5V Kawasaki Hydraulic Pump |
| Model: | K5V200DTH1SXR-0E70-BV |
| Part number: | 60217062 |

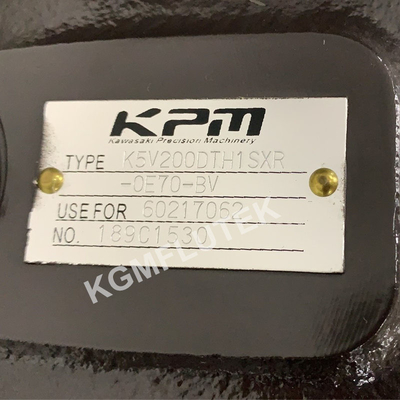

| Brand Name: | KPM |
| Place of Origin: | Japan |
| Condition: | 100% Genuine Brand New |
| Material: | Good quality cast Iron & Steel |
| Application: | Sany Excavator |
| Applicable Model: | Sany SY465 |
| Usage: | Hydraulic Machinery Industry, Construction Machinery Parts |
| Packing: | Wooden case |
| Package Size: | 85X45X64CM |
| Weight: | 185 KGS |
| Payment Term: | T/T, Western Union, Paypal, Alipay, Wechat |
| Delivery time: | 1-3 Days after we received the payment |
| After Warranty Service: | Online support and technical video support |
| Warranty: | 6 months |
| Guarantee: We will check the hydraulic pump and send detail pictures to buyer to confirm before shipping. | |
K5V200 Hydraulic Pump Spare Parts
We offer hydraulic pump spare parts, range from K5V80, K5V140, K5V160, K5V200, K5V212. Spare parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Thrust Plate, Retainer Plate, Ball Guide, Piston Shoe, Cylinder Block, Valve Plate and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement piston pump parts. Precision piston pump parts can totally interchange with original Kawasaki, same specification and duration.
| Item No. | Name & Description | QTY (pcs) |
| 1 | K5V200 DRIVE SHAFT | 1 |
| 2 | K5V200 SUPPORT | 1 |
| 3 | K5V200 SWASH PLATE | 1 |
| 4 | K5V200 THRUST PLATE | 1 |
| 5 | K5V200 RETAINER PLATE | 1 |
| 6 | K5V200 BALL GUIDE | 1 |
| 7 | K5V200 COIL SPRING | 9 |
| 8 | K5V200 PISTON SHOE | 9 |
| 9 | K5V200 WASHER | 1 |
| 10 | K5V200 CYLINDER BLOCK | 1 |
| 11 | K5V200 VALVE PLATE | 1 |
Features
K5V series: K5V80, K5V140, K5V160, K5V200, K5V212
The K5V series are variable displacement axial piston pumps of swash plate design, suitable for use in mobile applications such as Excavators, Cranes, etc. Various rotary group layouts, tandem type with PTO and parallel type are available to respond to applications. There are high reliability and more than 25 years of experience in the on mobile applications.
| Model | K5V80 | K5V140 | K5V160 | K5V200 | K5V212 | |
| Displacement (cm3) | 80 | 140 | 160 | 200 | 214 | |
| Pressure (MPa) | Rated | 34.3 | ||||
| Peak | 39.2 | |||||
| Max Self Priming Speed (min-1) | 2,460 | 2,160 | 2000 [2,350]*1 |
1850 [2,200]*1 |
2,000*1 | |
| Structure | Single | ◯ | ◯ | ◯ | ◯ | - |
| Tandem | ◯ | ◯ | ◯ | ◯ | - | |
| Parallel | - | ◯ | ◯ | ◯ | ||
Advantages
1) High Power Density and Low-noisy
2) High Efficiency and Long life
3) Stable Performance
4) High Quality and Competitive Price
Sany hydraulic pump models
| SY200-6/SY210-6/SY215-6 | K3V112DTP-9TCM |
| SY215-8 | K3V112DTP-9T8L |
| SY215-9 | K3V112DTP-0E11 |
| SY235-8 | K5V140DTP-9T1L |
| SY235-9 | K5V140DTP-0E01 |
| SY285 | K3V140DT-9TCM |
| SY305 | K5V160DTP-9T16 |
| SY335 | K5V200DTH-9N4H |
| SY365 | K5V160DTH1X4R-9T16-BV |
| SY215-10 | K7V125DTP-0E05 |
| SY235-10/SY245-10/SY265-10 | K7V125DTP-0E09 |
| SY150 | K3V112DP-9NG9 |
| SY200/SY220 | K5V140DTP-177R-9N19 |
| SY205C | K3V112DTP1Y9R-9P59-AV |
| SY465 | K5V200DTH-0E70 |
| SY485 | K5V212DPH-0E81 |
| SY280 | K3V140DTP-9NG9 |
| SY75 | K3VL80/B 1ARSMP01 |
| SY465 | K5V200DTH1SXR-0E70-BV |
We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our Hydraulic Pumps are packed well in wooden case.
