SY150 Rotary Drilling Rig Axial Piston Pump K3V112DP-135R-9NG9-1EB

SY150 Rotary Drilling Rig Axial Piston Pump K3V112DP-135R-9NG9-1EB
SY150 Rotary Drilling Rig Axial Piston Pump K3V112DP-135R-9NG9-1EB SY150 Rotary Drilling Rig Axial Piston Pump K3V112DP-135R-9NG9-1EB SY150 Rotary Drilling Rig Axial Piston Pump K3V112DP-135R-9NG9-1EB SY150 Rotary Drilling Rig Axial Piston Pump K3V112DP-135R-9NG9-1EB

Large Image :  SY150 Rotary Drilling Rig Axial Piston Pump K3V112DP-135R-9NG9-1EB

Product Details:
Place of Origin: Japan
Brand Name: KPM
Certification: ISO
Model Number: K3V112DP-135R-9NG9-1EB
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 1-3 days
Payment Terms: T/T, Western Union
Supply Ability: 1000sets per month

SY150 Rotary Drilling Rig Axial Piston Pump K3V112DP-135R-9NG9-1EB

Description
Product Name: Rotary Drilling Rig Pump Type: Drilling Machinery Part
Model: K3V112DP-135R-9NG9-1EB Part Number: 60114324
Application: Sany Drilling Machinery Application Model: SY150
Material: Casting Iron Condition: Genuine Brand New
High Light:

Drilling Rig Axial Piston Pump

,

SY150 Axial Piston Pump

,

K3V112DP-135R-9NG9-1EB Axial Piston Pump

SY150 Rotary Drilling Rig Axial Piston Pump K3V112DP-135R-9NG9-1EB



Product Details


SY150 Rotary Drilling Rig Axial Piston Pump K3V112DP-135R-9NG9-1EB

Product name:Rotary Drilling Rig Pump
Model:K3V112DP-135R-9NG9-1EB
Part number:60114324
Brand Name:KPM
Place of Origin:Japan
Condition:Original Brand New
Material:Good quality Iron & Steel
Application:Rotary Drilling Rig
Applicable Model:Sany SY150
Usage:Hydraulic Machinery Industry, Machinery Repair Shops, Drilling Machinery Part
Packing:Wooden case
Package Size:68X68X73CM
Weight:195 KGS
Payment Term:T/T, Paypal, Western Union, Wechat, Alipay
Delivery time:1-3 Days after received the payment
After Warranty Service:Online support and technical support
Warranty:6 months
Guarantee: We will check the hydraulic pump and send detail pictures to buyer to confirm before shipping.




K3V112 Hydraulic Pump Spare Parts
We offer K3V series hydraulic pump parts, range from K3V63, K3V112, K3V140, K3V180, K3V280. Spare parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Yoke, Thrust Plate, Shoe Plate, Retainer Plate, Set Plate, Ball Guide, Piston Shoe, Pistons, Cylinder Block, Barrel, Valve Plate, Port Plate and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement piston pump parts. Precision piston pump parts can totally interchange with original Kawasaki, same specification and duration.


Item No.Name & DescriptionQTY (pcs)
1K3V112 DRIVE SHAFT/SHAFT1
2K3V112 SUPPORT1
3K3V112 SWASH PLATE/YOKE1
4K3V112 THRUST PLATE/SHOE PLATE1
5K3V112 RETAINER PLATE/SET PLATE1
6K3V112 BALL GUIDE1
7K3V112 COIL SPRING1
8K3V112 PISTON SHOE/PISTONS9
9K3V112 WASHER1
10K3V112 CYLINDER BLOCK/BARREL1
11K3V112 VALVE PLATE/PORT PLATE1




Features


K3V series: K3V63, K3V112, K3V140, K3V180, K3V280

1. With new technology the K3V series has realized higher power density.
2. K3V series can cope with enlargement of displacement despite the same installation dimensions and regulator variations as K3V’s.
3. K3V series pumps have realized higher reliability and long life so as to meet requirement of larger torque.



ModelK3V63K3V112K3V140K3V180K3V280
Displacement /cm363112140180280
Pressure MPa
(kgf/cm2)
Rated34.3 (350)
Peak39.2 (400)
Speed
/min-1
Max.for self priming2,6502,3602,1501,9501,600
Max3,2502,7002,5002,3002,300

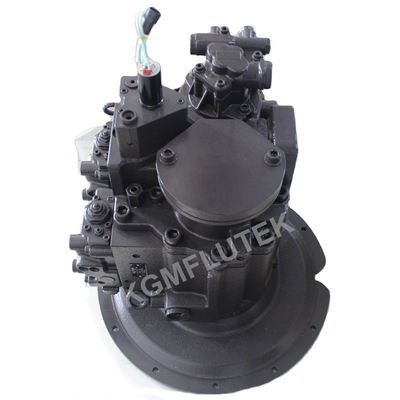

 SY150 Rotary Drilling Rig Axial Piston Pump K3V112DP-135R-9NG9-1EB 0

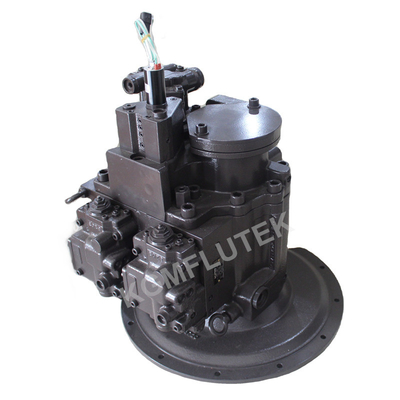

SY150 Rotary Drilling Rig Axial Piston Pump K3V112DP-135R-9NG9-1EB 1







We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.

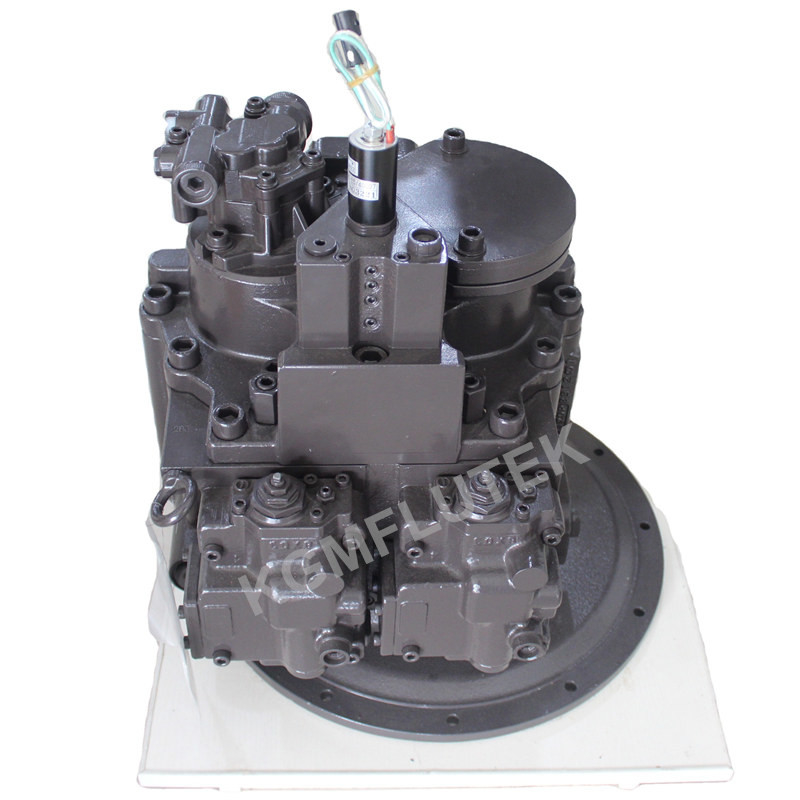

SY150 Rotary Drilling Rig Axial Piston Pump K3V112DP-135R-9NG9-1EB 2



All of our Hydraulic Pumps are packed well in wooden case.

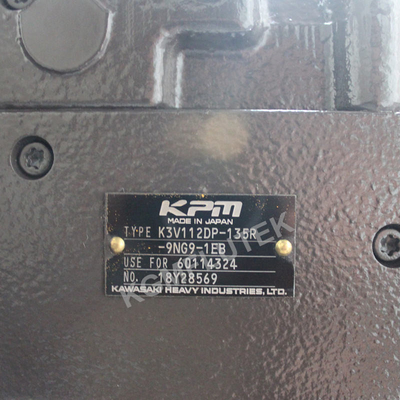

SY150 Rotary Drilling Rig Axial Piston Pump K3V112DP-135R-9NG9-1EB 3

SY150 Rotary Drilling Rig Axial Piston Pump K3V112DP-135R-9NG9-1EB 4
