Product Details:
|
Product Name: | Rotary Drilling Rig Hydraulic Main Pump | Type: | Axial Piston Pump |
---|---|---|---|
Model: | K3VL45/B-10RTS-PO | Application: | Rotary Drilling Rig |
Application Model: | Sany SY150 | Material: | Cast Iron |
Condition: | Original Brand New | Feature: | Low Noise |
High Light: | Rotary Drilling Rig Hydraulic Main Pump,SY150 Hydraulic Main Pump,Hydraulic Main Pump K3VL45/B-10RTS-PO |

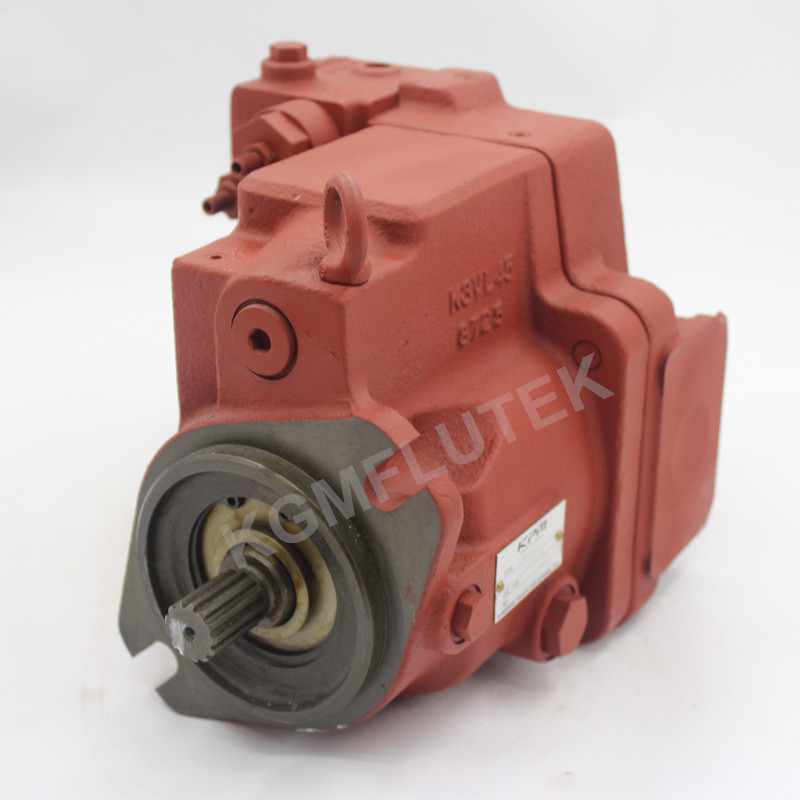

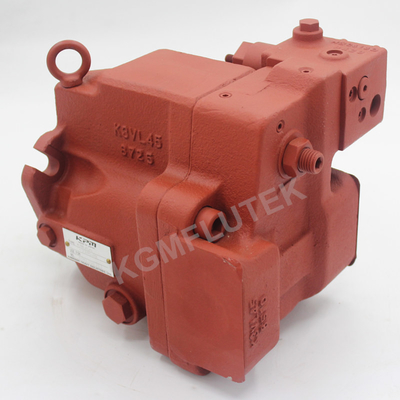

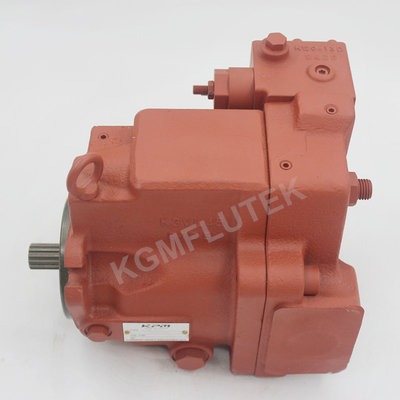

K3VL45/B-10RTS-PO Rotary Drilling Rig Hydraulic Main Pump For SY150
Product Details
K3VL45/B-10RTS-PO Rotary Drilling Rig Hydraulic Main Pump For SY150 |
|
Product name: | Rotary Drilling Rig Hydraulic Main Pump |
Model: | K3VL45/B-10RTS-PO |

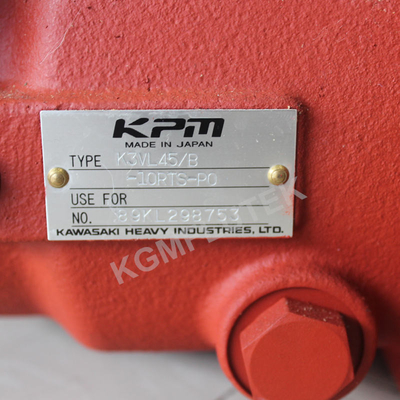

Brand Name: | KPM |
Place of Origin: | Japan |
Condition: | Original Brand New |
Material: | Good quality Iron & Steel |
Application: | Rotary Drilling Rig |
Applicable Model: | Sany SY150 |
Usage: | Hydraulic Machinery Industry, Machinery Repair Shops |
Packing: | Wooden case |
Package Size: | 40X40X40CM |
Weight: | 50 KGS |
Payment Term: | T/T, Paypal, Western Union, Wechat, Alipay |
Delivery time: | 1-3 Days after received the payment |
After Warranty Service: | Online support and technical support |
Warranty: | 6 months |
Guarantee: We will check the hydraulic pump and send detail pictures to buyer to confirm before shipping. |
K3VL45 Hydraulic Pump Spare Parts
We offer hydraulic pump parts, range from K3VL28, K3VL45, K3VL80, K3VL112, K3VL140, K3VL200, K3VL200H. Spare parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Thrust/Shoe Plate, Retainer/Set Plate, Ball Guide, Piston Shoe/Pistons, Cylinder Block, Valve Plate and other parts.
Item No. | Name & Description | QTY (pcs) |
1 | K3VL45 SUPPORT | 1 |
2 | K3VL45 SWASH PLATE | 1 |
3 | K3VL45 THRUST PLATE | 1 |
4 | K3VL45 RETAINER PLATE | 1 |
5 | K3VL45 BALL GUIDE | 1 |
6 | K3VL45 COIL SPRING | 9 |
7 | K3VL45 PISTON SHOE | 9 |
8 | K3VL45 CYLINDER BLOCK | 1 |
9 | K3VL45 VALVE PLATE | 1 |
10 | K3VL45 DRIVE SHAFT | 1 |
Features
K3VL series: K3VL28, K3VL45, K3VL80, K3VL112, K3VL140, K3VL200, K3VL200H
The K3VL series are variable displacement axial piston pumps of swash plate design, suitable for use in mobile and industrial applications. The unique mechanism has drastically reduced pressure pulsation. Unload and variable pressure controls are made possible remotely in addition to load-sensing and pressure constant. In addition, the horsepower control is available.
Model | K3VL28 | K3VL45 | K3VL80 | K3VL112 | K3VL140 | K3VL200 | K3VL200H*1 | |
Displacement (cm3) | 28 | 45 | 80 | 112 | 140 | 200 | 200 | |
Pressure (MPa) | Rated | 32 | ||||||
Peak | 35 | |||||||
Max Self Priming Speed (min-1) | 2,600 | 2,700 | 2,400 | 2,200 | 2,200 | 1,900 | 2,200 | |
Mass (approx.) (kg) | 20 | 25 | 35 | 65 | 65 | 95 | 130 |
Advantages
1. High Pump Efficiency
2. Low Noise
3. Wide range of control options
4. Stable Performance
5. High Quality and Competitive Price
We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our Hydraulic Pumps are packed well in wooden case.
