YB10V00001F1 Hydraulic Pump Assy K5V80DTP-10BR-0E02-AV For SK200SR

Certification
China Guangzhou Yunki Hydraulic Mechanical Co., Ltd certification
China Guangzhou Yunki Hydraulic Mechanical Co., Ltd certification
I'm Online Chat Now

YB10V00001F1 Hydraulic Pump Assy K5V80DTP-10BR-0E02-AV For SK200SR

YB10V00001F1 Hydraulic Pump Assy K5V80DTP-10BR-0E02-AV For SK200SR
YB10V00001F1 Hydraulic Pump Assy K5V80DTP-10BR-0E02-AV For SK200SR YB10V00001F1 Hydraulic Pump Assy K5V80DTP-10BR-0E02-AV For SK200SR YB10V00001F1 Hydraulic Pump Assy K5V80DTP-10BR-0E02-AV For SK200SR YB10V00001F1 Hydraulic Pump Assy K5V80DTP-10BR-0E02-AV For SK200SR

Large Image :  YB10V00001F1 Hydraulic Pump Assy K5V80DTP-10BR-0E02-AV For SK200SR

Product Details:
Place of Origin: Japan
Brand Name: KPM
Certification: ISO
Model Number: K5V80DTP-10BR-0E02-AV
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 1-3 days
Payment Terms: T/T, Western Union
Supply Ability: 1000sets per month

YB10V00001F1 Hydraulic Pump Assy K5V80DTP-10BR-0E02-AV For SK200SR

Description
Product Name: Kobelco Hydraulic Pump Assy Type: Hydraulic Piston Pump Assy
Part Number: YB10V00001F1 Model: K5V80DTP-10BR-0E02-AV
Application: Kobelco Excavator Application Model: SK200SR
Material: Cast Iron & Steel Condition: 100% Original Brand New
High Light:

YB10V00001F1 Hydraulic Pump Assy

,

K5V80DTP-10BR-0E02-AV Hydraulic Pump Assy

,

SK200SR Hydraulic Pump Assy

YB10V00001F1 Hydraulic Pump Assy K5V80DTP-10BR-0E02-AV For SK200SR



Product Details


YB10V00001F1 Hydraulic Pump Assy K5V80DTP-10BR-0E02-AV For SK200SR

Product name: Kobelco Hydraulic Pump Assy
Model: K5V80DTP-10BR-0E02-AV
Part number: YB10V00001F1
Brand Name: KPM
Place of Origin: Japan
Condition: 100% Original Brand New
Material: Good quality Iron & Steel
Application: Kobelco Excavator
Applicable Model: SK200SR
Usage: Hydraulic Machinery Industry, Machinery Repair Shops
Packing: Wooden case
Package Size: 98X50X70CM
Weight: 180 KGS
Payment Term: T/T, Paypal, Western Union, Wechat, Alipay
Delivery time: 1-3 Days after received the payment
After Warranty Service: Online support and technical support
Warranty: 6 months
Guarantee: We will check the hydraulic pump and send detail pictures to buyer to confirm before shipping.




K5V80 Hydraulic Pump Spare Parts

We offer Kawasaki K5V160 hydraulic pump parts, range from K5V80, K5V140, K5V160, K5V200, K5V212. Spare parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Yoke, Thrust Plate, Shoe Plate, Retainer Plate, Set Plate, Ball Guide, Piston Shoe, Pistons, Cylinder Block, Barrel, Valve Plate, Port Plate and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement piston pump parts. Precision piston pump parts can totally interchange with original Kawasaki, same specification and duration.


Item No. Name & Description QTY (pcs)
1 K5V80 DRIVE SHAFT/SHAFT 1
2 K5V80 SUPPORT 1
3 K5V80 SWASH PLATE/YOKE 1
4 K5V80 THRUST PLATE/SHOE PLATE 1
5 K5V80 RETAINER PLATE/SET PLATE 1
6 K5V80 BALL GUIDE 1
7 K5V80 COIL SPRING 1
8 K5V80 PISTON SHOE/PISTONS 9
9 K5V80 WASHER 1
10 K5V80 CYLINDER BLOCK/BARREL 1
11 K5V80 VALVE PLATE/PORT PLATE 1




Features

K5V series: K5V80, K5V140, K5V160, K5V200, K5V212
The K5V series are variable displacement axial piston pumps of swash plate design, suitable for use in mobile applications such as Excavators, Cranes, etc. Various rotary group layouts, tandem type with PTO and parallel type are available to respond to applications. There are high reliability and more than 25 years of experience in the on mobile applications.


Model K5V80 K5V140 K5V160 K5V200 K5V212
Displacement (cm3) 80 140 160 200 214
Pressure (MPa) Rated 34.3
Peak 39.2
Max Self Priming Speed (min-1) 2,460 2,160 2000
[2,350]*1
1850
[2,200]*1
2,000*1
Structure Single -
Tandem -
Parallel   -

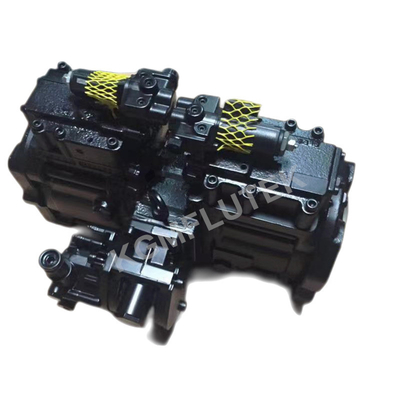

 YB10V00001F1 Hydraulic Pump Assy K5V80DTP-10BR-0E02-AV For SK200SR 0

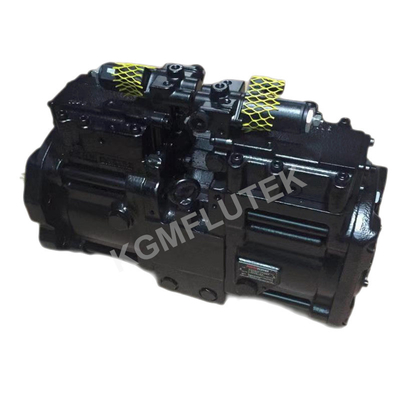

YB10V00001F1 Hydraulic Pump Assy K5V80DTP-10BR-0E02-AV For SK200SR 1




Parts on group (SK200SR)



Pos. Part No Qty Parts name Comments
0 YB10V00001F1 [1] HYDRAULIC PUMP,80 CC KOB PUMP ASSY
0 YB10V00001F2 [1] PUMP KOB PUMP ASSY Superseded by part number: YB10V00001F6
0 YB10V00001F3 [1] PUMP KOB PUMP ASSY Superseded by part number: YB10V00001F6
1 YB10V00004F1 [1] PUMP ASSY (NOT IN SERVICE)SEE FIG. 08-009
2 YB10V01001F1 [2] VOLTAGE REGULATOR KOB SEE FIG. 08-021
3 YB46W00001F1 [1] CASE KOB SEE FIG. 08-036 (Use oring ZD12G09500 at attach point) Superseded by part number: YB46W00001F2
4 YN35V00018F2 [2] SOLENOID VALVE KOB SEE FIG. 08-047,FOR F1 ONLY
5 YX10V00004F1 [1] PUMP KOB SEE FIG. 08-058,FOR F1,F2 ONLY Superseded by part number: 77279971, YX10V00004F2
6 YB35V00003F1 [2] VALVE KOB SOLENOID GEAR SEE FIG. 08-008,FOR F2,F3 ONLY
7 YX10V00004F2 [1] PUMP KOB GEAR,FOR F3 ONLY





We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.

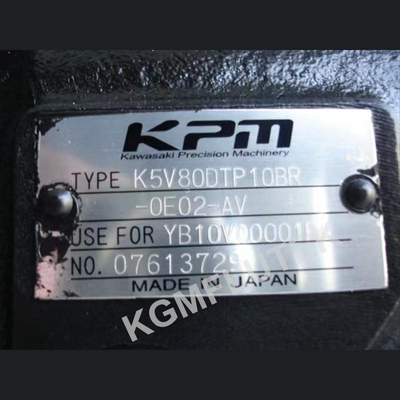

YB10V00001F1 Hydraulic Pump Assy K5V80DTP-10BR-0E02-AV For SK200SR 2



All of our Hydraulic Pumps are packed well in wooden case.

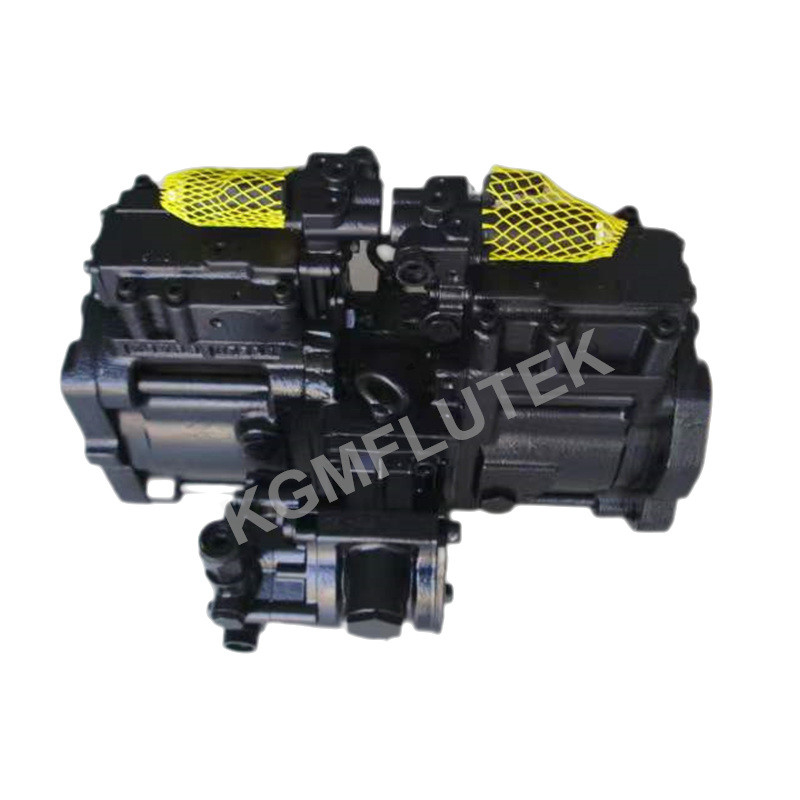

YB10V00001F1 Hydraulic Pump Assy K5V80DTP-10BR-0E02-AV For SK200SR 3

YB10V00001F1 Hydraulic Pump Assy K5V80DTP-10BR-0E02-AV For SK200SR 4
