1195408 CAT312B Excavator Hydraulic Pump K3V63DT-12MR-9N2D

1195408 CAT312B Excavator Hydraulic Pump K3V63DT-12MR-9N2D
1195408 CAT312B Excavator Hydraulic Pump K3V63DT-12MR-9N2D 1195408 CAT312B Excavator Hydraulic Pump K3V63DT-12MR-9N2D 1195408 CAT312B Excavator Hydraulic Pump K3V63DT-12MR-9N2D 1195408 CAT312B Excavator Hydraulic Pump K3V63DT-12MR-9N2D

Large Image :  1195408 CAT312B Excavator Hydraulic Pump K3V63DT-12MR-9N2D

Product Details:
Place of Origin: Japan
Brand Name: KGM FLUTEK
Certification: ISO
Model Number: K3V63DT-12MR-9N2D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 1-3 days
Payment Terms: T/T, Western Union
Supply Ability: 1000sets per month

1195408 CAT312B Excavator Hydraulic Pump K3V63DT-12MR-9N2D

Description
Product Name: CAT312B Complete Hydraulic Pump Usage: Construction Machinery Parts
Model: K3V63DT-12MR-9N2D Application: Crawler Excavator
Application Model: CAT312B Material: Cast Iron
Condition: 100% New Color: Yellow
High Light:

CAT312B Excavator Hydraulic Pump

,

1195408 Complete Hydraulic Pump

,

Excavator Hydraulic Pump K3V63DT-12MR-9N2D

1195408 Main Pump CAT312B Complete Hydraulic Pump K3V63DT-12MR-9N2D



Product Details

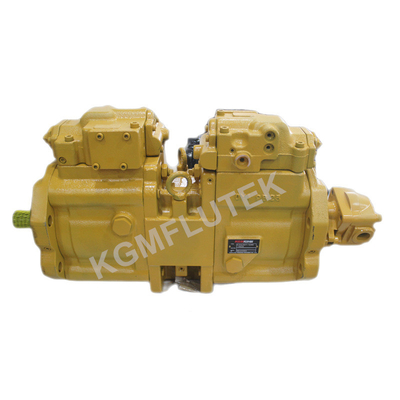

1195408 Main Pump CAT312B Complete Hydraulic Pump K3V63DT-12MR-9N2D

Product name:CAT312B Complete Hydraulic Pump
Model:K3V63DT-12MR-9N2D
Part number:1195408
Brand Name:KGM FLUTEK
Place of Origin:Japan
Condition:100% New
Material:Good quality Cast Iron & Steel
Application:CAT Excavator
Applicable Model:CAT312B
Usage:Hydraulic Machinery Industry, Construction Machinery Parts
Packing:Wooden case
Package Size:85*45*63CM
Payment Term:T/T, Paypal, Western Union, Wechat, Alipay
Delivery time:1-3 Days after received the payment
After Warranty Service:Online support and technical support
Warranty:6 months
Guarantee: We will check the hydraulic pump and send detail pictures to buyer to confirm before shipping.




K3V63 Hydraulic Pump Spare Parts

We offer K3V series hydraulic pump parts, range from K3V63, K3V112, K3V140, K3V180, K3V280. Spare parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Yoke, Thrust Plate, Shoe Plate, Retainer Plate, Set Plate, Ball Guide, Piston Shoe, Pistons, Cylinder Block, Barrel, Valve Plate, Port Plate and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement piston pump parts. Precision piston pump parts can totally interchange with original Kawasaki, same specification and duration.

Item No.Name & DescriptionQTY (pcs)
1K3V63 DRIVE SHAFT/SHAFT1
2K3V63 SUPPORT1
3K3V63 SWASH PLATE/YOKE1
4K3V63 THRUST PLATE/SHOE PLATE1
5K3V63 RETAINER PLATE/SET PLATE1
6K3V63 BALL GUIDE1
7K3V63 COIL SPRING1
8K3V63 PISTON SHOE/PISTONS9
9K3V63 WASHER1
10K3V63 CYLINDER BLOCK/BARREL1
11K3V63 VALVE PLATE/PORT PLATE1




Features


K3V series: K3V63, K3V112, K3V140, K3V180, K3V280

1. With new technology the K3V series has realized higher power density.
2. K3V series can cope with enlargement of displacement despite the same installation dimensions and regulator variations as K3V’s.
3. K3V series pumps have realized higher reliability and long life so as to meet requirement of larger torque.



ModelK3V63K3V112K3V140K3V180K3V280
Displacement /cm363112140180280
Pressure MPa
(kgf/cm2)
Rated34.3 (350)
Peak39.2 (400)
Speed
/min-1
Max.for self priming2,6502,3602,1501,9501,600
Max3,2502,7002,5002,3002,300




1195408 CAT312B Excavator Hydraulic Pump K3V63DT-12MR-9N2D 0
1195408 CAT312B Excavator Hydraulic Pump K3V63DT-12MR-9N2D 1




We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.



1195408 CAT312B Excavator Hydraulic Pump K3V63DT-12MR-9N2D 2



All of our Hydraulic Pumps are packed well in wooden case.



1195408 CAT312B Excavator Hydraulic Pump K3V63DT-12MR-9N2D 3

1195408 CAT312B Excavator Hydraulic Pump K3V63DT-12MR-9N2D 4
