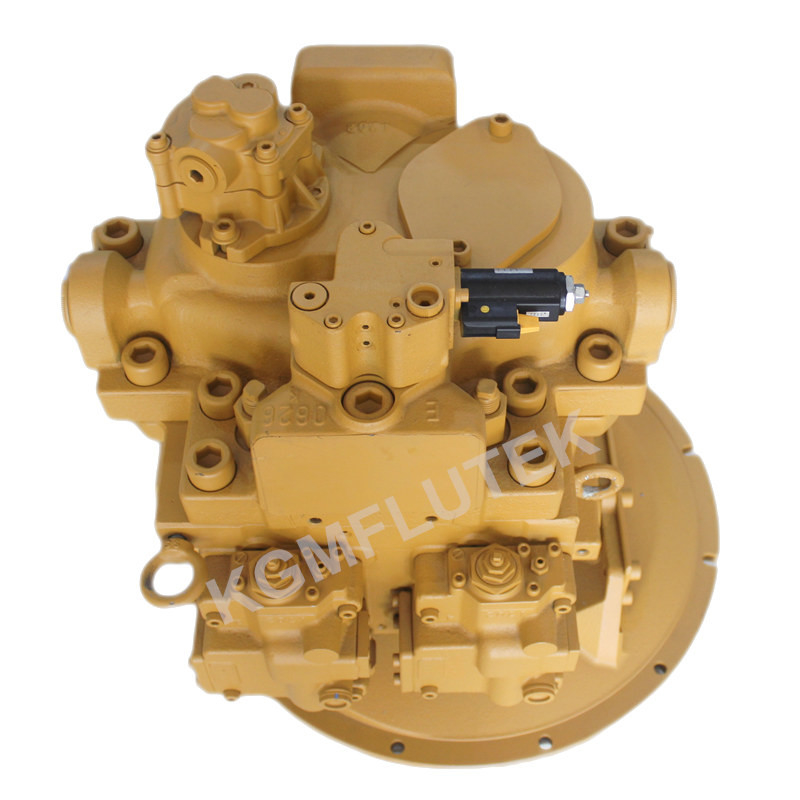

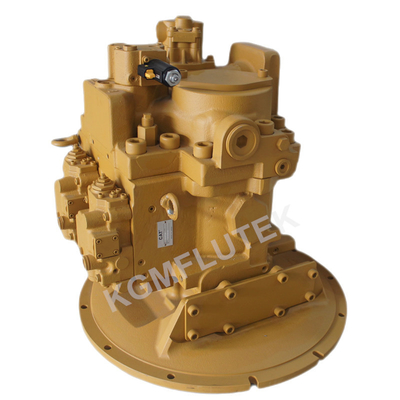

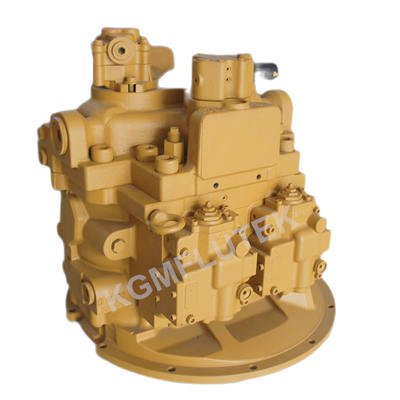

CAT336D Excavator Hydraulic Pump K5V160DP-1VWR-ZN7X-V 3228733 Caterpillar Piston Pump

Certification
China Guangzhou Yunki Hydraulic Mechanical Co., Ltd certification
China Guangzhou Yunki Hydraulic Mechanical Co., Ltd certification
I'm Online Chat Now

CAT336D Excavator Hydraulic Pump K5V160DP-1VWR-ZN7X-V 3228733 Caterpillar Piston Pump

CAT336D Excavator Hydraulic Pump K5V160DP-1VWR-ZN7X-V 3228733 Caterpillar Piston Pump
CAT336D Excavator Hydraulic Pump K5V160DP-1VWR-ZN7X-V 3228733 Caterpillar Piston Pump CAT336D Excavator Hydraulic Pump K5V160DP-1VWR-ZN7X-V 3228733 Caterpillar Piston Pump CAT336D Excavator Hydraulic Pump K5V160DP-1VWR-ZN7X-V 3228733 Caterpillar Piston Pump CAT336D Excavator Hydraulic Pump K5V160DP-1VWR-ZN7X-V 3228733 Caterpillar Piston Pump

Large Image :  CAT336D Excavator Hydraulic Pump K5V160DP-1VWR-ZN7X-V 3228733 Caterpillar Piston Pump

Product Details:
Place of Origin: Japan
Brand Name: CAT
Certification: ISO
Model Number: K5V160DP-1VWR-ZN7X-V
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 1-3 days
Payment Terms: T/T, Western Union
Supply Ability: 1000sets per month

CAT336D Excavator Hydraulic Pump K5V160DP-1VWR-ZN7X-V 3228733 Caterpillar Piston Pump

Description
Product Name: Caterpillar Piston Pump Type: Hydraulic Piston Pump

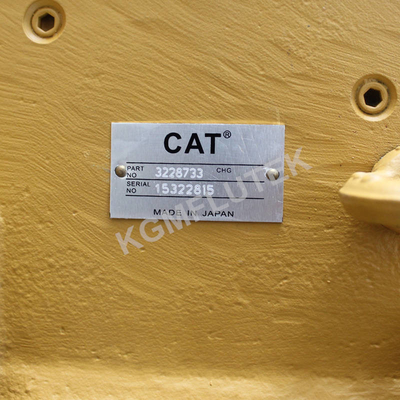

Part Number: 3228733 Model: K5V160DP-1VWR-ZN7X-V
Application: CAT Excavator Application Model: CAT336D
Material: Iron & Steel Condition: 100% Genuine Brand New
High Light:

CAT336D Excavator Hydraulic Pump

,

K5V160DP-1VWR-ZN7X-V Excavator Hydraulic Pump

,

3228733 Piston Pump


3228733 Caterpillar Piston Pump CAT336D Hydraulic Pump K5V160DP-1VWR-ZN7X-V



Product Details


3228733 Caterpillar Piston Pump CAT336D Hydraulic Pump K5V160DP-1VWR-ZN7X-V

Product name: Caterpillar Piston Pump
Model: K5V160DP-1VWR-ZN7X-V
Part number: 3228733
Brand Name: CAT
Place of Origin: Japan
Condition: 100% Genuine Brand New
Material: Good quality Iron & Steel
Application: CAT Excavator
Applicable Model: CAT336D
Usage: Hydraulic Machinery Industry, Machinery Repair Shops
Packing: Wooden case
Package Size: 98X50X70CM
Weight: 260 KGS
Payment Term: T/T, Paypal, Western Union, Wechat, Alipay
Delivery time: 1-3 Days after received the payment
After Warranty Service: Online support and technical support
Warranty: 6 months
Guarantee: We will check the hydraulic pump and send detail pictures to buyer to confirm before shipping.




K5V160 Hydraulic Pump Spare Parts

We offer Kawasaki K5V160 hydraulic pump parts, range from K5V80, K5V140, K5V160, K5V200, K5V212. Spare parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Yoke, Thrust Plate, Shoe Plate, Retainer Plate, Set Plate, Ball Guide, Piston Shoe, Pistons, Cylinder Block, Barrel, Valve Plate, Port Plate and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement piston pump parts. Precision piston pump parts can totally interchange with original Kawasaki, same specification and duration.


Item No. Name & Description QTY (pcs)
1 K5V160 DRIVE SHAFT/SHAFT 1
2 K5V160 SUPPORT 1
3 K5V160 SWASH PLATE/YOKE 1
4 K5V160 THRUST PLATE/SHOE PLATE 1
5 K5V160 RETAINER PLATE/SET PLATE 1
6 K5V160 BALL GUIDE 1
7 K5V160 COIL SPRING 1
8 K5V160 PISTON SHOE/PISTONS 9
9 K5V160 WASHER 1
10 K5V160 CYLINDER BLOCK/BARREL 1
11 K5V160 VALVE PLATE/PORT PLATE 1




Features

K5V series: K5V80, K5V140, K5V160, K5V200, K5V212
The K5V series are variable displacement axial piston pumps of swash plate design, suitable for use in mobile applications such as Excavators, Cranes, etc. Various rotary group layouts, tandem type with PTO and parallel type are available to respond to applications. There are high reliability and more than 25 years of experience in the on mobile applications.


Model K5V80 K5V140 K5V160 K5V200 K5V212
Displacement (cm3) 80 140 160 200 214
Pressure (MPa) Rated 34.3
Peak 39.2
Max Self Priming Speed (min-1) 2,460 2,160 2000
[2,350]*1
1850
[2,200]*1
2,000*1
Structure Single -
Tandem -
Parallel   -



CAT336D Excavator Hydraulic Pump K5V160DP-1VWR-ZN7X-V 3228733 Caterpillar Piston Pump 0
CAT336D Excavator Hydraulic Pump K5V160DP-1VWR-ZN7X-V 3228733 Caterpillar Piston Pump 1
CAT336D Excavator Hydraulic Pump K5V160DP-1VWR-ZN7X-V 3228733 Caterpillar Piston Pump 2


Compatible equipment models​

EXCAVATOR 330D 330D FM 330D L 330D LN 330D MH 336D 336D L 336D LN 336D2 340D L 340D2 L
MOBILE HYD POWER UNIT 330D 330D L 336D L
WHEELED EXCAVATOR M330D Caterpillar



We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.



CAT336D Excavator Hydraulic Pump K5V160DP-1VWR-ZN7X-V 3228733 Caterpillar Piston Pump 3



All of our Hydraulic Pumps are packed well in wooden case.



CAT336D Excavator Hydraulic Pump K5V160DP-1VWR-ZN7X-V 3228733 Caterpillar Piston Pump 4

CAT336D Excavator Hydraulic Pump K5V160DP-1VWR-ZN7X-V 3228733 Caterpillar Piston Pump 5
