Product Details:
|
| Product Name: | Hitachi Hydraulic Fan Pump | Usage: | Construction Machinery |
|---|---|---|---|
| Model: | K3V63S-102R-1F29 | Part Number: | 4633474 |
| Application: | Excavator | Application Model: | ZX450-3 ZX470-3 |
| Material: | Iron + Steel | Condition: | Genuine Brand New |
| High Light: | 4633474 Hydraulic Fan Pump,K3V63S-102R-1F29 Hydraulic Fan Pump,ZX470-3 Hydraulic Fan Pump |
||

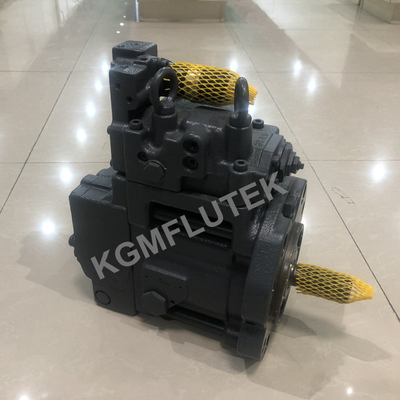

4633474 Hydraulic Fan pump K3V63S-102R-1F29 For Hitachi ZX450-3 ZX470-3
Product Details
| 4633474 Hydraulic Fan pump K3V63S-102R-1F29 For Hitachi ZX450-3 ZX470-3 | |||
|
Product Name:
|
Hydraulic fan pump
|
Model Number:
|
K3V63S-102R-1F29
|
| Brand Name: | KAWASAKI KPM | Place Of Origin: | Japan |
|
Condition:
|
Original Brand New
|
Delivery:
|
Within 1-3 days
|
|
Inventory:
|
In stock
|
Material: | Iron & Steel |
|
Packing:
|
Wooden Case
|
Payment Term:
|
T/T, Western Union
|
| Application: | Hitachi Excavator | Applicable model: | ZX450-3 ZX470-3 |
| Weight: | 65KGS | Dimension(L*W*H): | 40X40X40CM |
| Warranty: | 6 months | After Warranty Service: | Online support |
|
Guarantee: We will check the pumps and send detail pictures to buyer to confirm before shipping.
|
|||
K3V63 Hydraulic Pump Spare Parts
We Provide K3V63 Spare Parts.Spare parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Yoke, Thrust Plate, Shoe Plate, Retainer Plate, Set Plate, Ball Guide, Piston Shoe, Pistons, Cylinder Block, Barrel, Valve Plate, Port Plate and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement piston pump parts. Precision piston pump parts can totally interchange with original Kawasaki, same specification and duration. 100% Compatible With Original Kawasaki, Good Quality Piston Pump Parts And More Cost Effective Price.
| Item No. | Name & Description | QTY (pcs) | Remark |
| 1 | K3V63 DRIVE SHAFT | 1 | SHAFT |
| 2 | K3V63 SUPPORT | 1 | |
| 3 | K3V63 SWASH PLATE | 1 | YOKE |
| 4 | K3V63 THRUST PLATE | 1 | SHOE PLATE |
| 5 | K3V63 RETAINER PLATE | 1 | SET PLATE |
| 6 | K3V63 BALL GUIDE | 1 | |
| 7 | K3V63 COIL SPRING | 1 | |
| 8 | K3V63 PISTON SHOE | 9 | PISTONS |
| 9 | K3V63 WASHER | 1 | |
| 10 | K3V63 CYLINDER BLOCK | 1 | BARREL |
| 11 | K3V63 VALVE PLATE | 1 | PORT PLATE |
Features
1. With new technology the K3V series has realized higher power density.
2. K3V series can cope with enlargement of displacement despite the same installation dimensions and regulator variations as K3V’s.
3. K3V series pumps have realized higher reliability and long life so as to meet requirement of larger torque.
| Model | K3V63 | K3V112 | K3V140 | K3V180 | K3V280 | |
| Displacement /cm3 | 63 | 112 | 140 | 180 | 280 | |
| Pressure MPa
(kgf/cm2)
|
Rated | 34.3 (350) | ||||
| Peak | 39.2 (400) | |||||
| Speed
/min-1
|
Max.for self priming | 2,650 | 2,360 | 2,150 | 1,950 | 1,600 |
| Max | 3,250 | 2,700 | 2,500 | 2,300 | 2,300 | |
|
Main Products
|
||||
| 1. Hydraulic parts | hydraulic pump, swing motor assy, travel motor assy, gearbox, main control valve, foot valve, operating od assy, pilot pump, regulator, center joint, relief valve, bearing, hydraulic spare parts, gear, etc. |
|||
|
2. engine parts
|
cylinder block, cylinder head, liner kits, con rod, engine bearing, in/ex valve, valve seat, gasket kit, head gaskit, crankshaft, cam shaft,water pump, fuel pump, oil pump, turbocharger, nozzle, oil cooler assy, manifold exhaust etc |
|||
|
|
boom/arm/bucket cylinder seal kit, hydraulic pump seal kit, swing motor seal kit,travel motor seal kit, control valve seal kit, adjuster seal kit, center joint seal kit,gear pump seal kit, regulator seal kit, breaker seal kit, bulldozer seal kit etc. |
|||
| 4.Rubber parts | coupling,engine cushion,belt | |||
| 5.Gear parts |
travel,swing motor:sun gear,shaft,carrier assy,housing,hub,cover
|
|||
We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our Hydraulic Pumps are packed well in wooden case.
