4667614 Excavator Hydraulic Fan Pump K3V63S-104L-1F29 For EX1200-5

Certification
China Guangzhou Yunki Hydraulic Mechanical Co., Ltd certification
China Guangzhou Yunki Hydraulic Mechanical Co., Ltd certification
I'm Online Chat Now

4667614 Excavator Hydraulic Fan Pump K3V63S-104L-1F29 For EX1200-5

4667614 Excavator Hydraulic Fan Pump K3V63S-104L-1F29 For EX1200-5
4667614 Excavator Hydraulic Fan Pump K3V63S-104L-1F29 For EX1200-5 4667614 Excavator Hydraulic Fan Pump K3V63S-104L-1F29 For EX1200-5 4667614 Excavator Hydraulic Fan Pump K3V63S-104L-1F29 For EX1200-5 4667614 Excavator Hydraulic Fan Pump K3V63S-104L-1F29 For EX1200-5

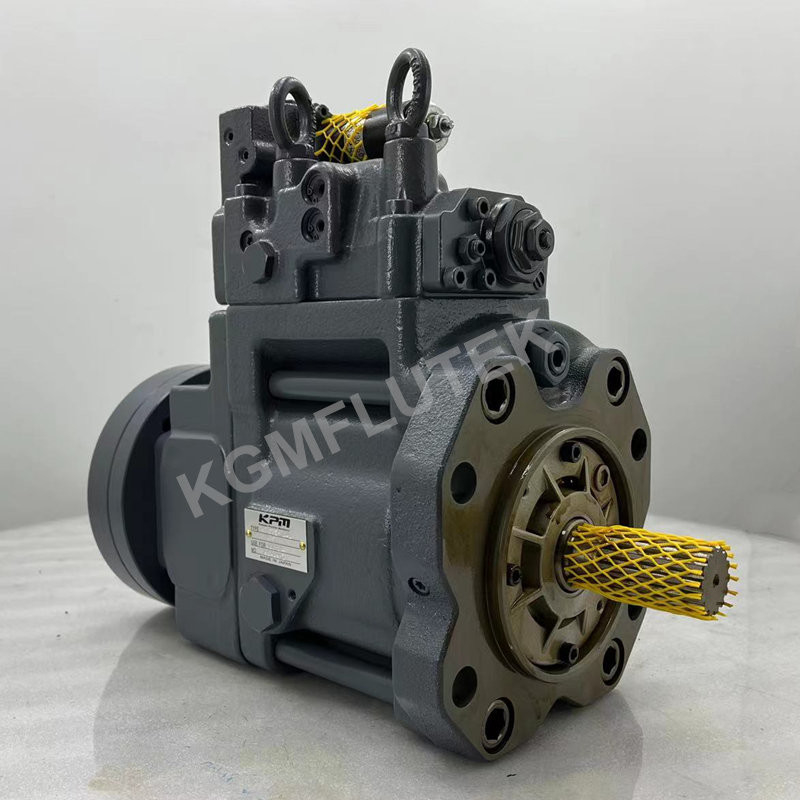

Large Image :  4667614 Excavator Hydraulic Fan Pump K3V63S-104L-1F29 For EX1200-5

Product Details:
Place of Origin: Japan
Brand Name: KAWASAKI KPM
Certification: ISO
Model Number: K3V63S-104L-1F29
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 1-3 days
Payment Terms: T/T, Western Union
Supply Ability: 1000sets per month

4667614 Excavator Hydraulic Fan Pump K3V63S-104L-1F29 For EX1200-5

Description
Product Name: Excavator Hydraulic Fan Pump Usage: Construction Machinery Parts
Model: K3V63S-104L-1F29 Part Number: 4667614
Application: Hitachi Excavator Application Model: EX1200-5
Material: Iron & Steel Condition: Original Brand New
High Light:

Excavator Hydraulic Fan Pump

,

4667614 Hydraulic Fan Pump

,

EX1200-5 Hydraulic Fan Pump



4667614 Excavator Hydraulic Fan Pump K3V63S-104L-1F29 For EX1200-5





Product Details





4667614 Excavator Hydraulic Fan Pump K3V63S-104L-1F29 For EX1200-5
Product Name:
Hydraulic fan pump
Model Number:
K3V63S-104L-1F29
Brand Name: KAWASAKI KPM Place Of Origin: Japan
Condition:
Original Brand New
Delivery:
Within 1-3 days
Inventory:
In stock
Material: Iron & Steel
Packing:
Wooden Case
Payment Term:
T/T, Western Union
Application: Hitachi Excavator Applicable model: EX1200-5
Weight: 50KGS Dimension(L*W*H): 40X40X40CM
Warranty: 6 months After Warranty Service: Online support
Guarantee: We will check the pumps and send detail pictures to buyer to confirm before shipping.





K3V63 Hydraulic Pump Spare Parts



We Provide New Kawasaki K3V63 Piston Pump Rotary Group, Replacement And Spare Parts, 100% Compatible With Original Kawasaki, Good Quality Piston Pump Parts And More Cost Effective Price. Spare parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Yoke, Thrust Plate, Shoe Plate, Retainer Plate, Set Plate, Ball Guide, Piston Shoe, Pistons, Cylinder Block, Barrel, Valve Plate, Port Plate and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement piston pump parts. Precision piston pump parts can totally interchange with original Kawasaki, same specification and duration.



Item No. Name & Description QTY (pcs) Remark
1 K3V63 DRIVE SHAFT 1 SHAFT
2 K3V63 SUPPORT 1
3 K3V63 SWASH PLATE 1 YOKE
4 K3V63 THRUST PLATE 1 SHOE PLATE
5 K3V63 RETAINER PLATE 1 SET PLATE
6 K3V63 BALL GUIDE 1
7 K3V63 COIL SPRING 1
8 K3V63 PISTON SHOE 9 PISTONS
9 K3V63 WASHER 1
10 K3V63 CYLINDER BLOCK 1 BARREL
11 K3V63 VALVE PLATE 1 PORT PLATE





Features



K3V series: K3V63, K3V112, K3V140, K3V180, K3V280

1. With new technology the K3V series has realized higher power density.

2. K3V series can cope with enlargement of displacement despite the same installation dimensions and regulator variations as K3V’s.

3. K3V series pumps have realized higher reliability and long life so as to meet requirement of larger torque.



Model K3V63 K3V112 K3V140 K3V180 K3V280
Displacement /cm3 63 112 140 180 280
Pressure MPa
(kgf/cm2)
Rated 34.3 (350)
Peak 39.2 (400)
Speed
/min-1
Max.for self priming 2,650 2,360 2,150 1,950 1,600
Max 3,250 2,700 2,500 2,300 2,300





4667614 Excavator Hydraulic Fan Pump K3V63S-104L-1F29 For EX1200-5 0

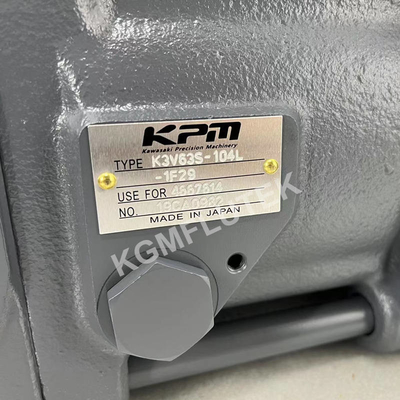

4667614 Excavator Hydraulic Fan Pump K3V63S-104L-1F29 For EX1200-5 1





Hitachi Excavator Hydraulic Pump Models



HITACHI HPVO102FW-RE23A & SENSOR HPVO102FW-RE23A & SENSOR
HPVO102FW-RH23B & NORMAL HPVO102GW-RH23A & EPR V / V
HPVO102GW-RH23A & EPR V / V HPVO118HW-RH26A & EPR V / V
HPVO118HW-RH26A & EPR V / V HPVO105FW-RH25B & NORMAL
HPVO105FW-RH25B & NORMAL HPVO105FW-RE25A & SENSOR
HPVO105FW-RE25A & SENSOR HPVO102FW-RH23C & NORMAL
HPVO102FW-RH23C & NORMAL HPVO118FW-RH26B & NORMAL
HPVO118FW-RH26B & NORMAL HPVO105GW-RH25A & EPR V / V
HPVO105GW-RH25A & EPR V / V HPV145WHITOUT REGULATOR
HPVO102FW-RH23B & NORMAL K3V63S-104L-1F29





We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.

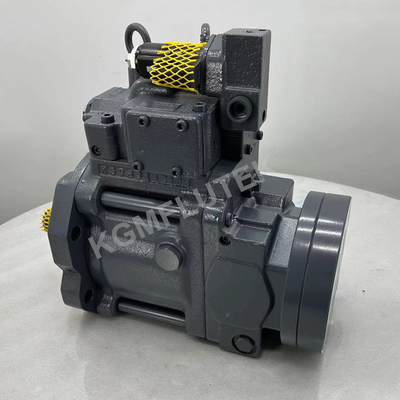

4667614 Excavator Hydraulic Fan Pump K3V63S-104L-1F29 For EX1200-5 2



All of our Hydraulic Pumps are packed well in wooden case.

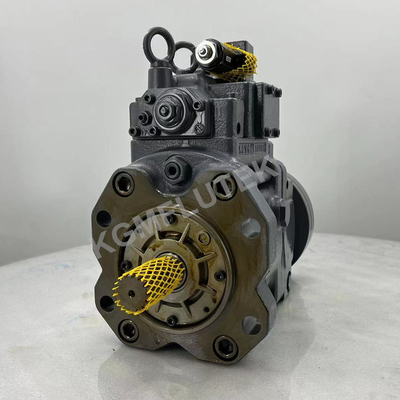

4667614 Excavator Hydraulic Fan Pump K3V63S-104L-1F29 For EX1200-5 3

4667614 Excavator Hydraulic Fan Pump K3V63S-104L-1F29 For EX1200-5 4
