Product Details:
|
| Product Name: | Original Volvo Axial Piston Pump | Type: | Hydraulic Piston Pump |
|---|---|---|---|

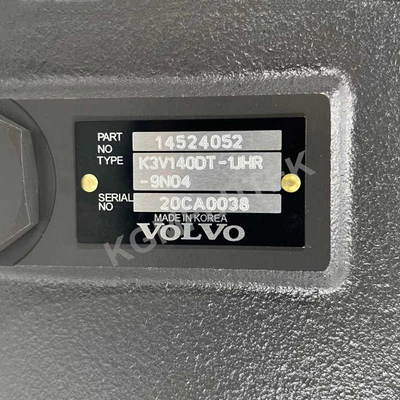

| Model: | K3V140DT-1JHR-9N04 | Part Number: | 14524052 |
| Application: | Crawler Excavator | Application Model: | EC290B |
| Material: | Casting Iron + Steel | Condition: | 100% Genuine Brand New |
| High Light: | Volvo Axial Piston Pump,14524052 Axial Piston Pump,EC290B Axial Piston Pump |
||

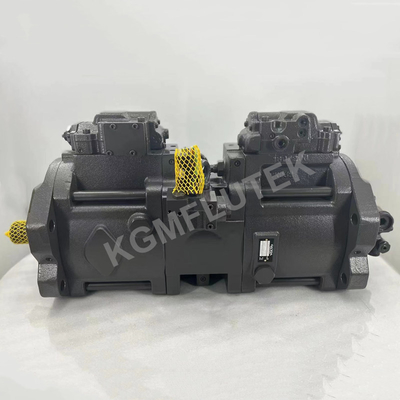

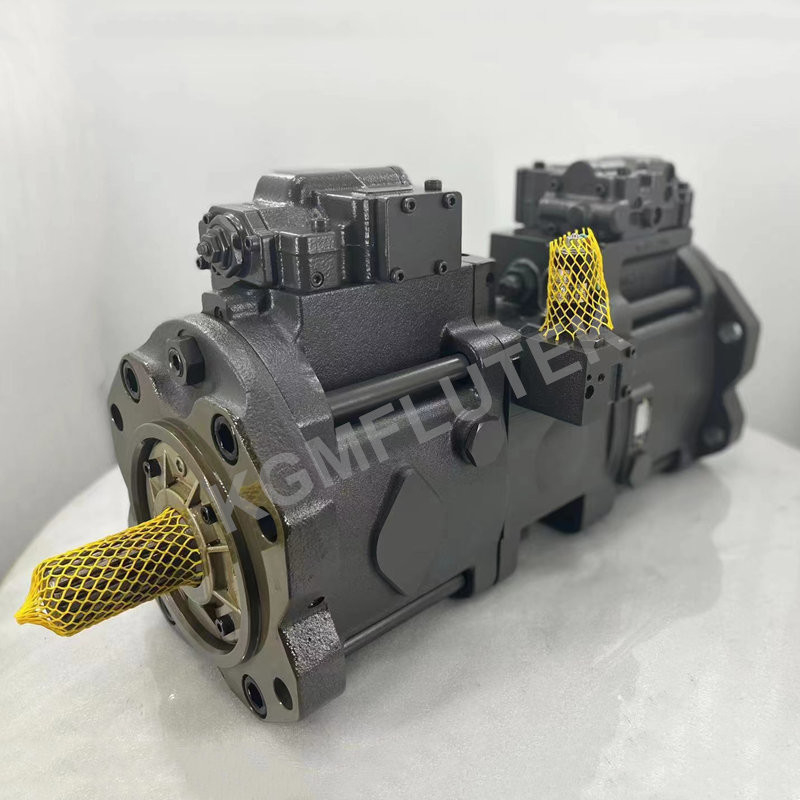

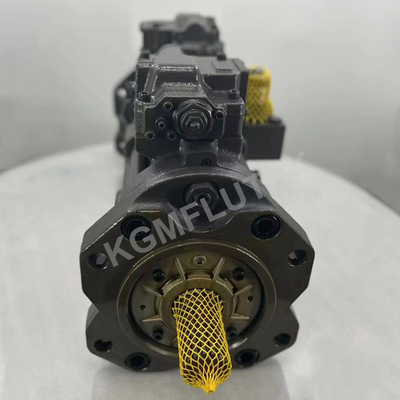

14524052 Original Volvo Axial Piston Pump K3V140DT-1JHR-9N04 For EC290B
Product Details
| 14524052 Original Volvo Axial Piston Pump K3V140DT-1JHR-9N04 For EC290B | |||
|
Product Name:
|
Hydraulic pump
|
Model Number:
|
K3V140DT-1JHR-9N04
|
| Brand Name: | VOLVO | Place Of Origin: | Japan |
|
Condition:
|
Genuine Brand New
|
Delivery:
|
Within 1-3 days
|
|
Inventory:
|
In stock
|
Material: | Iron & Steel |
|
Packing:
|
Wooden Case
|
Payment Term:
|
T/T, Western Union, Paypal |
| Application: | VOLVO Excavator | Applicable model: | VOLVO EC290B |
| Weight: | 185KGS | Dimension(L*W*H): | 85X45X64CM |
| Warranty: | 6 months | After Warranty Service: | Online support |
|
Guarantee: We will check the pumps and send detail pictures to buyer to confirm before shipping.
|
|||
K3V140DT Hydraulic Pump Spare Parts
We supply K3V140 Piston Pump Rotary Group, Replacement And Spare Parts, 100% Compatible With Original Kawasaki, Good Quality Piston Pump Parts And More Cost Effective Price. Spare parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Yoke, Thrust Plate, Shoe Plate, Retainer Plate, Set Plate, Ball Guide, Piston Shoe, Pistons, Cylinder Block, Barrel, Valve Plate, Port Plate and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement piston pump parts. Precision piston pump parts can totally interchange with original Kawasaki, same specification and duration.
| Item No. | Name & Description | QTY (pcs) | Remark |
| 1 | K3V140DT DRIVE SHAFT | 1 | SHAFT |
| 2 | K3V140DT SUPPORT | 1 | |
| 3 | K3V140DT SWASH PLATE | 1 | YOKE |
| 4 | K3V140DT THRUST PLATE | 1 | SHOE PLATE |
| 5 | K3V140DT RETAINER PLATE | 1 | SET PLATE |
| 6 | K3V140DT BALL GUIDE | 1 | |
| 7 | K3V140DT COIL SPRING | 1 | |
| 8 | K3V140DT PISTON SHOE | 9 | PISTONS |
| 9 | K3V140DT WASHER | 1 | |
| 10 | K3V140DT CYLINDER BLOCK | 1 | BARREL |
| 11 | K3V140DT VALVE PLATE | 1 | PORT PLATE |
Features
1. With new technology the K3V series has realized higher power density.
2. K3V series can cope with enlargement of displacement despite the same installation dimensions and regulator variations as K3V’s.
3. K3V series pumps have realized higher reliability and long life so as to meet requirement of larger torque.
| Model | K3V63 | K3V112 | K3V140 | K3V180 | K3V280 | |
| Displacement /cm3 | 63 | 112 | 140 | 180 | 280 | |
| Pressure MPa
(kgf/cm2)
|
Rated | 34.3 (350) | ||||
| Peak | 39.2 (400) | |||||
| Speed
/min-1
|
Max.for self priming | 2,650 | 2,360 | 2,150 | 1,950 | 1,600 |
| Max | 3,250 | 2,700 | 2,500 | 2,300 | 2,300 | |
Excavator Models
| Doosan |
DH55,DH60,DH80,DH130 DH150, DH180 DH200, DH215, DH220, DH225,DH280,DH300,DH320 DH350, DH370, DX55,DX60,DX63, DX75, DX80,DX88-9, DX120, DX150, DX160, DX180, DX220, DX215, DX220, DX225, DX230, DX235, DX255, DX260, DX300, DX340,DX350,DH370,DX380,DX420 |
| Volvo | EC55B,ECR58, EC60C,EC70 ECR88 EC140, EC160B EC200, EC210B, EC240B,E C290B,EC360B,EC460B,EC480B,EC700B |
| Hyundai | R55-5-7-9,R60-5-7-9,R75, R80-7-9,R130, R140 R150-7,R160, R170, R180, R200, R205, R210, R215,R220,R225, R235, R250, R270, R280, R290 R300, R320,R325 ,R330 R360 R370 R450 |
| Kobelco | SK60,SK75,SK80 SK100 SK115SR SK120 SK130, SK135,SK140, SK160 SK170 SK200, SK210, SK220,SK230,SK250,SK300,SK330,SK350,SK450 |
| Sany | SY50,SY55,SY60,SY65,SY75,SY80,SY85, SY95, SY115, SY135, SY140, SY155, SY205, SY210,SY215, SY220,SY225,SY235, SY240,SY245,SY265,SY305, SY335, SY365,SY385, SY465 |
| Sumitomo | SH60,SH75,SH100,SH120,SH130 SH200, SH210, SH240, SH250, SH300, SH330, SH350,SH370 |
| Komatsu | PC56,PC60,PC70,PC80 PC90 PC100 PC110,PC120 PC128 PC130 PC138,PC150 PC160,PC200,PC210,PC220,PC240, PC270,PC300, PC360, PC400, PC450 |
| Caterpillar | 304C CR,305.5,305C CR,307C,307C SB,307D,308D CR,308D CR SB, 311C,311D LRR,312C,312CL,312D,312DL,314C LCR,315C L,315D L,318C L,320B 320C,320D 320D,321C LCR, 322D 320B,320C, 320D,325B,325C,325D, 330B,330C,330D,336B,336C,336D,345B |
We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our Hydraulic Pumps are packed well in wooden case.
