SH120-3 KAWASAKI KPM Excavator Hydraulic Pump K3V63DTP169R-9N2B-A

SH120-3 KAWASAKI KPM Excavator Hydraulic Pump K3V63DTP169R-9N2B-A
SH120-3 KAWASAKI KPM Excavator Hydraulic Pump K3V63DTP169R-9N2B-A SH120-3 KAWASAKI KPM Excavator Hydraulic Pump K3V63DTP169R-9N2B-A SH120-3 KAWASAKI KPM Excavator Hydraulic Pump K3V63DTP169R-9N2B-A SH120-3 KAWASAKI KPM Excavator Hydraulic Pump K3V63DTP169R-9N2B-A

Large Image :  SH120-3 KAWASAKI KPM Excavator Hydraulic Pump K3V63DTP169R-9N2B-A

Product Details:
Place of Origin: Japan
Brand Name: KPM
Certification: ISO
Model Number: K3V63DTP169R-9N2B-A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 1-3 days
Payment Terms: T/T, Western Union
Supply Ability: 1000sets per month

SH120-3 KAWASAKI KPM Excavator Hydraulic Pump K3V63DTP169R-9N2B-A

Description
Product Name: K3V63 Hydraulic Main Pump Type: Hydraulic Piston Pump
Model: K3V63DTP169R-9N2B-A Application: SUMITOMO Excavator
Application Model: SH120-3 Material: Casting Iron + Steel
Condition: 100% Brand New Color: Dark Grey
High Light:

SH120-3 Excavator Hydraulic Pump

,

K3V63DTP169R-9N2B-A Excavator Hydraulic Pump



SH120-3 KAWASAKI KPM Excavator Hydraulic Pump K3V63DTP169R-9N2B-A





Product Details





SH120-3 KAWASAKI KPM Excavator Hydraulic Pump K3V63DTP169R-9N2B-A
Product Name:
Hydraulic Main Pump
Model Number:
K3V63DTP169R-9N2B-A
Brand Name: KAWASAKI KPM Place Of Origin: Japan
Condition:
Original Brand New
Delivery:
Within 1-3 days
Inventory:
In stock
Material: Iron & Steel
Packing:
Wooden Case
Payment Term:
T/T, Western Union
Application: SUMITOMO Excavator Applicable model: SH120-3
Weight: 180KGS Dimension(L*W*H): 85X45X64CM
Warranty: 6 months After Warranty Service: Online support
Guarantee: We will check the pumps and send detail pictures to buyer to confirm before shipping.





K3V63DTP Hydraulic Pump Spare Parts



We Provide New Kawasaki K3V63DTP Piston Pump Rotary Group, Replacement And Spare Parts, 100% Compatible With Original Kawasaki, Good Quality Piston Pump Parts And More Cost Effective Price. Spare parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Yoke, Thrust Plate, Shoe Plate, Retainer Plate, Set Plate, Ball Guide, Piston Shoe, Pistons, Cylinder Block, Barrel, Valve Plate, Port Plate and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement piston pump parts. Precision piston pump parts can totally interchange with original Kawasaki, same specification and duration.



Item No. Name & Description QTY (pcs) Remark
1 K3V63DTP DRIVE SHAFT 1 SHAFT
2 K3V63DTP SUPPORT 1
3 K3V63DTP SWASH PLATE 1 YOKE
4 K3V63DTP THRUST PLATE 1 SHOE PLATE
5 K3V63DTP RETAINER PLATE 1 SET PLATE
6 K3V63DTP BALL GUIDE 1
7 K3V63DTP COIL SPRING 1
8 K3V63DTP PISTON SHOE 9 PISTONS
9 K3V63DTP WASHER 1
10 K3V63DTP CYLINDER BLOCK 1 BARREL
11 K3V63DTP VALVE PLATE 1 PORT PLATE





Features



K3V series: K3V63, K3V112, K3V140, K3V180, K3V280

1. With new technology the K3V series has realized higher power density.

2. K3V series can cope with enlargement of displacement despite the same installation dimensions and regulator variations as K3V’s.

3. K3V series pumps have realized higher reliability and long life so as to meet requirement of larger torque.



Model K3V63 K3V112 K3V140 K3V180 K3V280
Displacement /cm3 63 112 140 180 280
Pressure MPa
(kgf/cm2)
Rated 34.3 (350)
Peak 39.2 (400)
Speed
/min-1
Max.for self priming 2,650 2,360 2,150 1,950 1,600
Max 3,250 2,700 2,500 2,300 2,300

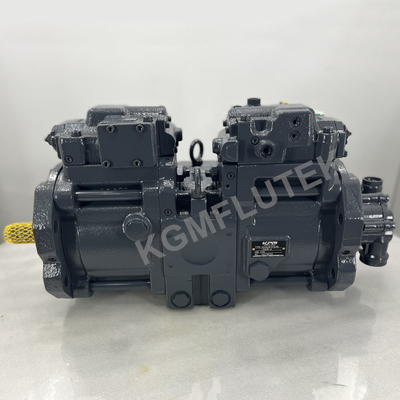

SH120-3 KAWASAKI KPM Excavator Hydraulic Pump K3V63DTP169R-9N2B-A 0

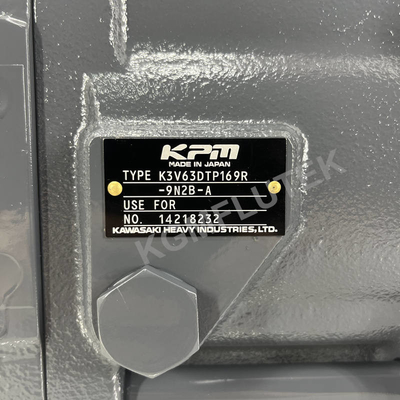

SH120-3 KAWASAKI KPM Excavator Hydraulic Pump K3V63DTP169R-9N2B-A 1





SUMITOMO Excavator Hydraulic Pump Models



SUMITOMO HYDRAULIC MAIN PUMP ASSY
SH120-3 K3V63DTP169R-9N2B-A
SH130-5 K7V63DTP159R-9Y2C-AVD
SH200-3 K3V112DTP16AR-9N49-Z
SH210-1 K3V112DT-1G4R-9C12-1
SH210/240-5 K3V112DTP1F9R-9Y14-HV
SH290-5 K5V140DTP-9Y00
SH330-3 K5V140DTP1G9R-9N0A-V
SH350-5 K5V160DTP1FLR-9Y04-HV
SH450-3 K3V180DTP-9N6A
SH450-5 K3V180DTP-9Y0A
SH700/750 K3V280DTH131R-9N24-V
SH460-5 K3V180DTP1FAR-9Y0A-V





We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.

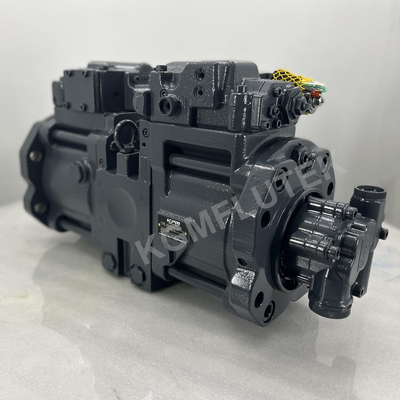

SH120-3 KAWASAKI KPM Excavator Hydraulic Pump K3V63DTP169R-9N2B-A 2



All of our Hydraulic Pumps are packed well in wooden case.

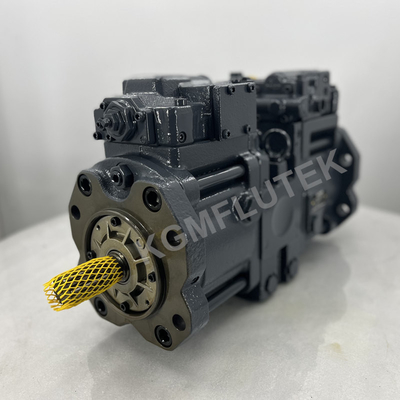

SH120-3 KAWASAKI KPM Excavator Hydraulic Pump K3V63DTP169R-9N2B-A 3

SH120-3 KAWASAKI KPM Excavator Hydraulic Pump K3V63DTP169R-9N2B-A 4
