Product Details:
|
Product Name: | VOLVO Hydraulic Main Pump | Type: | Hydraulic Piston Pump Assy |
---|---|---|---|

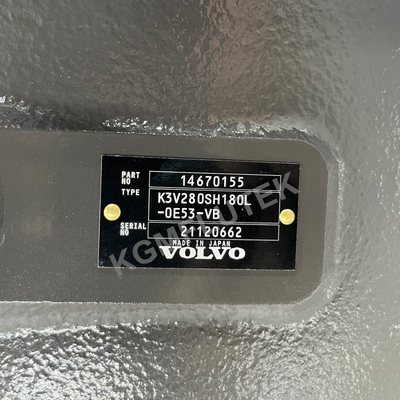

Model: | K3V280SH180L-0E53-VB | Part Number: | 14670155 |
Application: | VOLVO Excavator | Application Model: | EC950E |
Material: | Casting Iron & Steel | Condition: | 100% Original Brand New |
High Light: | K3V280SH180L-0E53-VB Hydraulic Main Pump,EC950E Hydraulic Main Pump,14670155 Hydraulic Main Pump |

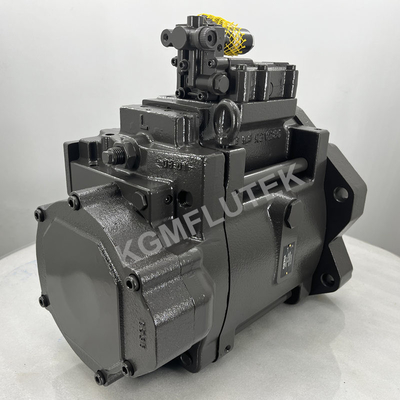

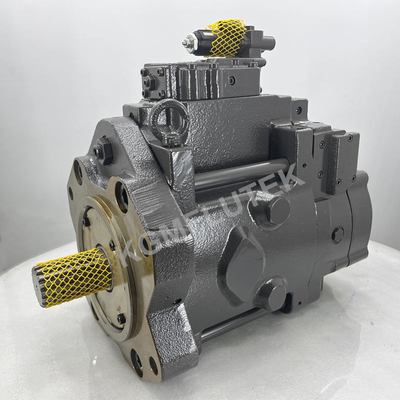

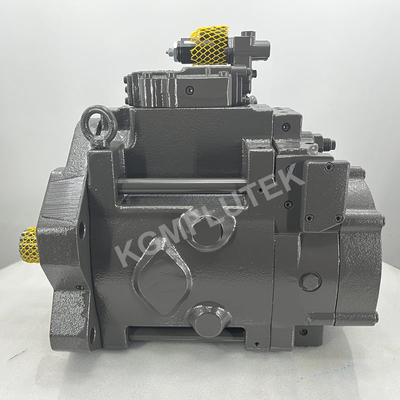

K3V280SH180L-0E53-VB VOLVO Hydraulic Main Pump 14670155 For EC950E
Product Details
K3V280SH180L-0E53-VB VOLVO Hydraulic Main Pump 14670155 For EC950E | |||
Product Name:
|
Hydraulic pump
|
Model Number:
|
K3V280SH180L-0E53-VB
|
Brand Name: | VOLVO | Place Of Origin: | Japan |
Condition:
|
Original Brand New
|
Delivery:
|
Within 1-3 days
|
Inventory:
|
In stock
|
Material: | Iron & Steel |
Packing:
|
Wooden Case
|
Payment Term:
|
T/T, Western Union
|
Application: | VOLVO Excavator | Applicable model: | VOLVO EC950E |
Weight: | 180KGS | Dimension(L*W*H): | 85X45X64CM |
Warranty: | 6 months | After Warranty Service: | Online support |
Guarantee: We will check the pumps and send detail pictures to buyer to confirm before shipping.
|
K3V280SH Hydraulic Pump Spare Parts
We Provide New Kawasaki K3V280 Piston Pump Rotary Group, Replacement And Spare Parts, 100% Compatible With Original Kawasaki, Good Quality Piston Pump Parts And More Cost Effective Price. Spare parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Yoke, Thrust Plate, Shoe Plate, Retainer Plate, Set Plate, Ball Guide, Piston Shoe, Pistons, Cylinder Block, Barrel, Valve Plate, Port Plate and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement piston pump parts. Precision piston pump parts can totally interchange with original Kawasaki, same specification and duration.
Item No. | Name & Description | QTY (pcs) | Remark |
1 | K3V280SH DRIVE SHAFT | 1 | SHAFT |
2 | K3V280SH SUPPORT | 1 | |
3 | K3V280SH SWASH PLATE | 1 | YOKE |
4 | K3V280SH THRUST PLATE | 1 | SHOE PLATE |
5 | K3V280SH RETAINER PLATE | 1 | SET PLATE |
6 | K3V280SH BALL GUIDE | 1 | |
7 | K3V280SH COIL SPRING | 1 | |
8 | K3V280SH PISTON SHOE | 9 | PISTONS |
9 | K3V280SH WASHER | 1 | |
10 | K3V280SH CYLINDER BLOCK | 1 | BARREL |
11 | K3V280SH VALVE PLATE | 1 | PORT PLATE |
Features
1. With new technology the K3V series has realized higher power density.
2. K3V series can cope with enlargement of displacement despite the same installation dimensions and regulator variations as K3V’s.
3. K3V series pumps have realized higher reliability and long life so as to meet requirement of larger torque.
Model | K3V63 | K3V112 | K3V140 | K3V180 | K3V280 | |
Displacement /cm3 | 63 | 112 | 140 | 180 | 280 | |
Pressure MPa
(kgf/cm2)
|
Rated | 34.3 (350) | ||||
Peak | 39.2 (400) | |||||
Speed
/min-1
|
Max.for self priming | 2,650 | 2,360 | 2,150 | 1,950 | 1,600 |
Max | 3,250 | 2,700 | 2,500 | 2,300 | 2,300 |
VOLVO Excavator Hydraulic Pump Models
VOLVO | 14508164 | 1142-06230 | K3V63DT-1RCR-9N03-1 |
14508164 | 14500380 | K3V63DT-1R0R-9NOT | |
14510170 | 14508164 | K3V63DT-1Y0R-9NOT | |
14520050 | 14512271 | K3V63DT-1ZDR-9N0T-ZV | |
14520750 | 14516405 | K3V112DT-1RCR-9N09 | |
14526609 | 14522561 | K3V112DT-1XER-9N24-2 | |
14531300 | 14524052 | K3V112DT-1XDR-9N24-ZV | |
14531591 | 14526609 | K3V112DT-1XER-9N2A-2 | |
14531594 | 14531412 | K3V140DT-1RCR-9N19 | |
14533644 | 14531857 | K3V140DT-1JER-9N04-1 | |
14612484 | 14549798 | K3V180DT-1PCR-9N46 | |
14618624 | 14612484 | K3V180DTH-1POR-9N0S | |
1040-74390 | 14618624 | K3V180DT-1PER-9N56 | |
1042-02191A | 14621492 | K3V180DTH-1POR-9NOB | |
1042-07700 | 14623786 | K3V180DT-152R-9N05-AHV | |
1142-00010 | 7220-00601 | K5V80DT-1 PDR-9N0Y-ZV | |
1142-00530 | 1142-00900 | K5V80DT-1PDR-9N0J-ZV | |
14574463 | 14676708 | K5V80DT-1V9L-1E01-V | |
1142-00660 | 1142-05460 | K5V200DTP180R-9N8X-V |
We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our Hydraulic Pumps are packed well in wooden case.
