Product Details:
|
| Product Name: | VOLVO Hydraulic Fan Pump | Type: | Hydraulic Pump |
|---|---|---|---|
| Part Number: | 14676708 | Model: | K5V80DT-1V9L-1E01-V |
| Application: | VOLVO Excavator | Application Model: | EC950E |
| Material: | Iron & Steel | Condition: | Original Brand New |
| High Light: | EC950E Fan Pump,14676708 Fan Pump,K5V80DT-1V9L-1E01-V Fan Pump |
||

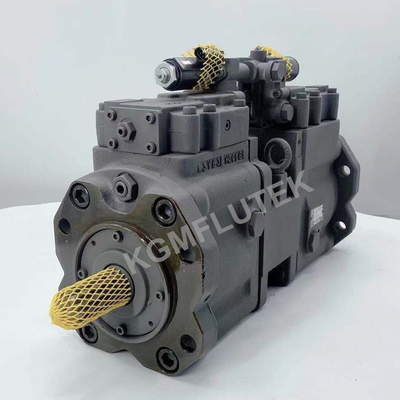

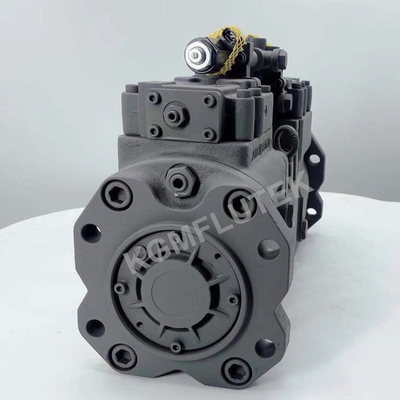

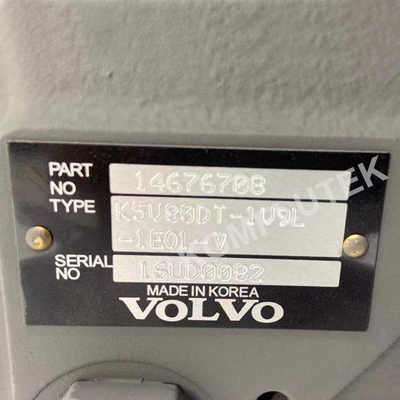

14676708 VOLVO Hydraulic Pump EC950E Fan Pump K5V80DT-1V9L-1E01-V
Product Details
| 14676708 VOLVO Hydraulic Pump EC950E Fan Pump K5V80DT-1V9L-1E01-V | |
| Product name: | Kawasaki Hydraulic Piston Pump |
| Model: | K5V80DT-1V9L-1E01-V |
| Part number: | 14676708 |
| Brand Name: | VOLVO |
| Place of Origin: | Japan |
| Condition: | 100% Original Brand New |
| Material: | Good quality Iron & Steel |
| Application: | VOLVO Excavator |
| Applicable Model: | EC950E |
| Usage: | Hydraulic Machinery Industry |
| Packing: | Wooden case |
| Package Size: | 82X37X49CM |
| Weight: | 100KGS |
| Payment Term: | T/T, Paypal, Western Union, Wechat, Alipay |
| Delivery time: | 1-3 Days after received the payment |
| After Warranty Service: | Online support and technical support |
| Warranty: | 6 months |
| Guarantee: We will check the hydraulic pump and send detail pictures to buyer to confirm before shipping. | |
K5V80 Hydraulic Pump Spare Parts
We offer Kawasaki K5V80 hydraulic pump parts, range from K5V80, K5V140, K5V160, K5V200, K5V212. Spare parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Yoke, Thrust Plate, Shoe Plate, Retainer Plate, Set Plate, Ball Guide, Piston Shoe, Pistons, Cylinder Block, Barrel, Valve Plate, Port Plate and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement piston pump parts. Precision piston pump parts can totally interchange with original Kawasaki, same specification and duration.
| Item No. | Name & Description | QTY (pcs) |
| 1 | K5V80 DRIVE SHAFT/SHAFT | 1 |
| 2 | K5V80 SUPPORT | 1 |
| 3 | K5V80 SWASH PLATE/YOKE | 1 |
| 4 | K5V80 THRUST PLATE/SHOE PLATE | 1 |
| 5 | K5V80 RETAINER PLATE/SET PLATE | 1 |
| 6 | K5V80 BALL GUIDE | 1 |
| 7 | K5V80 COIL SPRING | 1 |
| 8 | K5V80 PISTON SHOE/PISTONS | 9 |
| 9 | K5V80 WASHER | 1 |
| 10 | K5V80 CYLINDER BLOCK/BARREL | 1 |
| 11 | K5V80 VALVE PLATE/PORT PLATE | 1 |
Features
K5V series: K5V80, K5V140, K5V160, K5V200, K5V212
The K5V series are variable displacement axial piston pumps of swash plate design, suitable for use in mobile applications such as Excavators, Cranes, etc. Various rotary group layouts, tandem type with PTO and parallel type are available to respond to applications. There are high reliability and more than 25 years of experience in the on mobile applications.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
VOLVO Excavator Hydraulic Pump Models
| VOLVO | 14508164 | 1142-06230 | K3V63DT-1RCR-9N03-1 |
| 14508164 | 14500380 | K3V63DT-1R0R-9NOT | |
| 14510170 | 14508164 | K3V63DT-1Y0R-9NOT | |
| 14520050 | 14512271 | K3V63DT-1ZDR-9N0T-ZV | |
| 14520750 | 14516405 | K3V112DT-1RCR-9N09 | |
| 14526609 | 14522561 | K3V112DT-1XER-9N24-2 | |
| 14531300 | 14524052 | K3V112DT-1XDR-9N24-ZV | |
| 14531591 | 14526609 | K3V112DT-1XER-9N2A-2 | |
| 14531594 | 14531412 | K3V140DT-1RCR-9N19 | |
| 14533644 | 14531857 | K3V140DT-1JER-9N04-1 | |
| 14612484 | 14549798 | K3V180DT-1PCR-9N46 | |
| 14618624 | 14612484 | K3V180DTH-1POR-9N0S | |
| 1040-74390 | 14618624 | K3V180DT-1PER-9N56 | |
| 1042-02191A | 14621492 | K3V180DTH-1POR-9NOB | |
| 1042-07700 | 14623786 | K3V180DT-152R-9N05-AHV | |
| 1142-00010 | 7220-00601 | K5V80DT-1 PDR-9N0Y-ZV | |
| 1142-00530 | 1142-00900 | K5V80DT-1PDR-9N0J-ZV | |
| 14574463 | 14676708 | K5V80DT-1V9L-1E01-V | |
| 1142-00660 | 1142-05460 | K5V200DTP180R-9N8X-V |
We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our Hydraulic Pumps are packed well in wooden case.
