SY200 SY210 SY215-6 Kawasaki Hydraulic Piston Pump K3V112DTP1E9R-9TCM-V

Certification
China Guangzhou Yunki Hydraulic Mechanical Co., Ltd certification
China Guangzhou Yunki Hydraulic Mechanical Co., Ltd certification
I'm Online Chat Now

SY200 SY210 SY215-6 Kawasaki Hydraulic Piston Pump K3V112DTP1E9R-9TCM-V

SY200 SY210 SY215-6 Kawasaki Hydraulic Piston Pump K3V112DTP1E9R-9TCM-V
SY200 SY210 SY215-6 Kawasaki Hydraulic Piston Pump K3V112DTP1E9R-9TCM-V SY200 SY210 SY215-6 Kawasaki Hydraulic Piston Pump K3V112DTP1E9R-9TCM-V SY200 SY210 SY215-6 Kawasaki Hydraulic Piston Pump K3V112DTP1E9R-9TCM-V SY200 SY210 SY215-6 Kawasaki Hydraulic Piston Pump K3V112DTP1E9R-9TCM-V

Large Image :  SY200 SY210 SY215-6 Kawasaki Hydraulic Piston Pump K3V112DTP1E9R-9TCM-V

Product Details:
Place of Origin: Japan
Brand Name: Kawasaki KPM
Certification: ISO
Model Number: K3V112DTP1E9R-9TCM-V
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 1-3 days
Payment Terms: T/T, Western Union
Supply Ability: 1000sets per month

SY200 SY210 SY215-6 Kawasaki Hydraulic Piston Pump K3V112DTP1E9R-9TCM-V

Description
Product Name: Kawasaki Hydraulic Piston Pump Type: Hydraulic Piston Pump
Model: K3V112DTP1E9R-9TCM-V Application: Sany Excavator
Application Model: SY200 SY210 SY215-6 Material: Good Quality Iron & Steel
Condition: 100% Genuine New Inventory: Have Stock
High Light:

Kawasaki Hydraulic Piston Pump

,

SY200 Hydraulic Piston Pump

,

SY210 Hydraulic Piston Pump



SY200 SY210 SY215-6 Kawasaki Hydraulic Piston Pump K3V112DTP1E9R-9TCM-V





Product Details



SY200 SY210 SY215-6 Kawasaki Hydraulic Piston Pump K3V112DTP1E9R-9TCM-V
Product name: Kawasaki Hydraulic Piston Pump
Model: K3V112DTP1E9R-9TCM-V
Brand Name: Kawasaki KPM
Place of Origin: Japan
Condition: 100% Genuine New
Material: Good quality Iron & Steel
Application: Sany Excavator
Applicable Model: SY200 SY210 SY215-6
Usage: Hydraulic Machinery Industry
Packing: Wooden case
Package Size: 82X37X49CM
Weight: 150KGS
Payment Term: T/T, Western Union, Paypal, Wechat, Alipay
Delivery time: 1-3 Days after we received the payment
After Warranty Service: Online support and technical support
Warranty: 6 months
Guarantee: We will check the hydraulic pump and send detail pictures to buyer to confirm before shipping.




K3V112 Hydraulic Pump Spare Parts



We offer Kawasaki K3V112 hydraulic pump parts, range from K3V63DT, K3V112DT, K3V140DT, K3V180DT, K3V280. Spare parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Yoke, Thrust Plate, Shoe Plate, Retainer Plate, Set Plate, Ball Guide, Piston Shoe, Pistons, Cylinder Block, Barrel, Valve Plate, Port Plate and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement piston pump parts.



Item No. Name & Description QTY (pcs)
1 K3V112 DRIVE SHAFT/SHAFT 1
2 K3V112 SUPPORT 1
3 K3V112 SWASH PLATE/YOKE 1
4 K3V112 THRUST PLATE/SHOE PLATE 1
5 K3V112 RETAINER PLATE/SET PLATE 1
6 K3V112 BALL GUIDE 1
7 K3V112 COIL SPRING 1
8 K3V112 PISTON SHOE/PISTONS 9
9 K3V112 WASHER 1
10 K3V112 CYLINDER BLOCK/BARREL 1
11 K3V112 VALVE PLATE/PORT PLATE 1





Features



K3V series: K3V63, K3V112, K3V140, K3V180, K3V280

1. With new technology the K3V series has realized higher power density.

2. K3V series can cope with enlargement of displacement despite the same installation dimensions and regulator variations as K3V’s.

3. K3V series pumps have realized higher reliability and long life so as to meet requirement of larger torque.



Model K3V63 K3V112 K3V140 K3V180 K3V280
Displacement /cm3 63 112 140 180 280
Pressure MPa
(kgf/cm2)
Rated 34.3 (350)
Peak 39.2 (400)
Speed
/min-1
Max.for self priming 2,650 2,360 2,150 1,950 1,600
Max 3,250 2,700 2,500 2,300 2,300

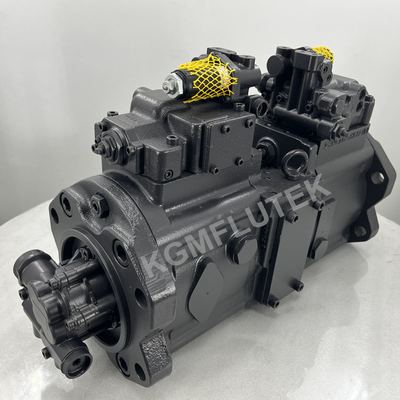

SY200 SY210 SY215-6 Kawasaki Hydraulic Piston Pump K3V112DTP1E9R-9TCM-V 0

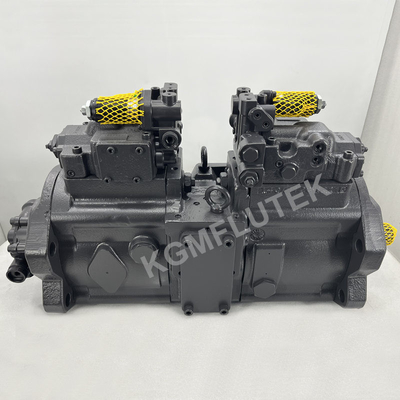

SY200 SY210 SY215-6 Kawasaki Hydraulic Piston Pump K3V112DTP1E9R-9TCM-V 1





SANY Excavator Applications



SANYHYDRAULIC MAIN PUMP ASSY
SY200/210/215-6 K3V112DTP-9TCM
SY215-8 K3V112DTP-9T8L
SY215-9 K3V112DTP-0E11
SY235-8 K5V140DTP-9T1L
SY235-9 K5V140DTP-0E01
SY285 K3V140DT-9TCM
SY305 K5V160DTP-9T16
SY335 K5V200DTH-9N4H
SY365 K5V160DTH1X4R-9T16-BV
SY215-10 K7V125DTP-0E05
SY235/245/265-10 K7V125DTP-0E09
SY150 K3V112DP-9NG9
SY200/220 K5V140DTP-177R-9N19
SY205C K3V112DTP1Y9R-9P59-AV
SY465 K5V200DTH-0E70
SY485 K5V212DPH-0E81
SY280 K3V140DTP-9NG9
SY75 K3VL80/B 1ARSMP01
SY465 K5V200DTH1SXR-0E70-BV





We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.

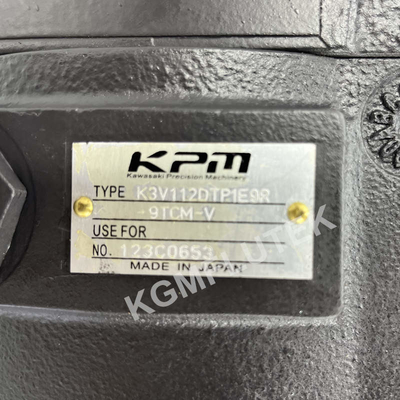

SY200 SY210 SY215-6 Kawasaki Hydraulic Piston Pump K3V112DTP1E9R-9TCM-V 2



All of our Hydraulic Pumps are packed well in wooden case.

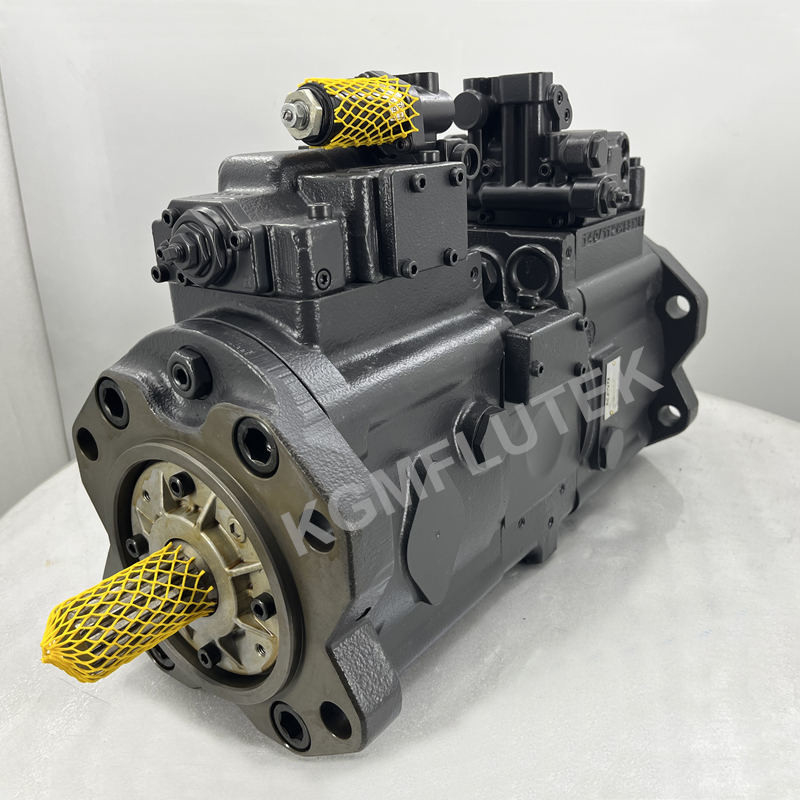

SY200 SY210 SY215-6 Kawasaki Hydraulic Piston Pump K3V112DTP1E9R-9TCM-V 3

SY200 SY210 SY215-6 Kawasaki Hydraulic Piston Pump K3V112DTP1E9R-9TCM-V 4
