Product Details:
|
| Product Name: | Rotary Drilling Rig Construction Hydraulic Pump | Type: | Hydraulic Pump Assembly |
|---|---|---|---|
| Model: | K3V63DT-1D0L-GN36 | Application: | Rotary Drilling Rig Construction |
| Application Model: | FURUKAWA | Material: | Casting Iron & Steel |
| Condition: | 100% New | Inventory: | In Stock |
| High Light: | Rotary Drilling Rig Construction Hydraulic Pump,K3V63DT-1D0L-GN36 Construction Hydraulic Pump |
||

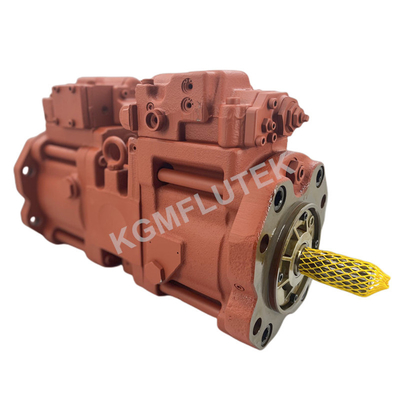

FURUKAWA Rotary Drilling Rig Construction Hydraulic Pump K3V63DT-1D0L-GN36
Product Details
| FURUKAWA Rotary Drilling Rig Construction Hydraulic Pump K3V63DT-1D0L-GN36 | |||
|
Product Name:
|
Hydraulic pump
|
Model Number:
|
K3V63DT-1D0L-GN36
|
| Brand Name: | KAWASAKI KPM | Place Of Origin: | Japan |
|
Condition:
|
Original Brand New
|
Delivery:
|
Within 1-3 days
|
|
Inventory:
|
In stock
|
Material: | Iron & Steel |
|
Packing:
|
Wooden Case
|
Payment Term:
|
T/T, Western Union
|
| Application: | Rotary Drilling Rig Construction | Applicable model: | FURUKAWA |
| Weight: | 115KGS | Dimension(L*W*H): | 85X45X64CM |
| Warranty: | 6 months | After Warranty Service: | Online support |
|
Guarantee: We will check the goods and send detail pictures to buyer to confirm before shipping.
|
|||
K3V63 Hydraulic Pump Spare Parts
We Provide New Kawasaki K3V63 Piston Pump Rotary Group, Replacement And Spare Parts, 100% Compatible With Original Kawasaki, Good Quality Piston Pump Parts And More Cost Effective Price. Spare parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Yoke, Thrust Plate, Shoe Plate, Retainer Plate, Set Plate, Ball Guide, Piston Shoe, Pistons, Cylinder Block, Barrel, Valve Plate, Port Plate and other parts.
| Item No. | Name & Description | QTY (pcs) | Remark |
| 1 | K3V63 DRIVE SHAFT | 1 | SHAFT |
| 2 | K3V63 SUPPORT | 1 | |
| 3 | K3V63 SWASH PLATE | 1 | YOKE |
| 4 | K3V63 THRUST PLATE | 1 | SHOE PLATE |
| 5 | K3V63 RETAINER PLATE | 1 | SET PLATE |
| 6 | K3V63 BALL GUIDE | 1 | |
| 7 | K3V63 COIL SPRING | 1 | |
| 8 | K3V63 PISTON SHOE | 9 | PISTONS |
| 9 | K3V63 WASHER | 1 | |
| 10 | K3V63 CYLINDER BLOCK | 1 | BARREL |
| 11 | K3V63 VALVE PLATE | 1 | PORT PLATE |
Features
1. With new technology the K3V series has realized higher power density.
2. K3V series can cope with enlargement of displacement despite the same installation dimensions and regulator variations as K3V’s.
3. K3V series pumps have realized higher reliability and long life so as to meet requirement of larger torque.
| Model | K3V63 | K3V112 | K3V140 | K3V180 | K3V280 | |
| Displacement /cm3 | 63 | 112 | 140 | 180 | 280 | |
| Pressure MPa
(kgf/cm2)
|
Rated | 34.3 (350) | ||||
| Peak | 39.2 (400) | |||||
| Speed
/min-1
|
Max.for self priming | 2,650 | 2,360 | 2,150 | 1,950 | 1,600 |
| Max | 3,250 | 2,700 | 2,500 | 2,300 | 2,300 | |
We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our Hydraulic Pumps are packed well in wooden case.
