Product Details:
|
| Product Name: | KAWASAKI Hydraulic Pump ASSY | Model: | K3V112DP-1F9R-9YB4 |
|---|---|---|---|
| Condition: | 100% New | Application: | CASE And SUMITOMO Excavator |
| Application Model: | Case210 Case240-B SH210 SH250-5 | Material: | Casting Iron & Steel |
| Packing: | Standar Wooden Case | Stock: | In Stock |
| High Light: | kawasaki Hydraulic Pump Assy,K3V112DP-1F9R-9YB4 Hydraulic Pump Assy,SH210 Hydraulic Pump Assy |
||

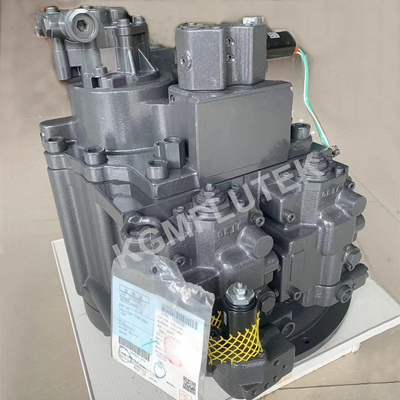

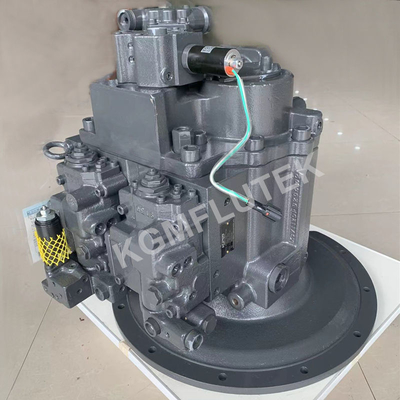

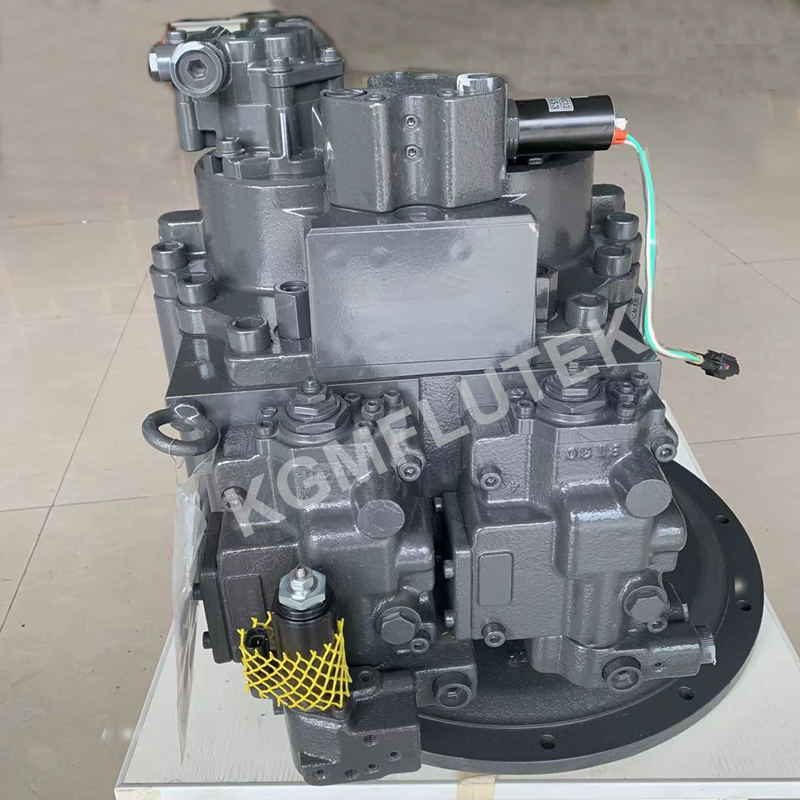

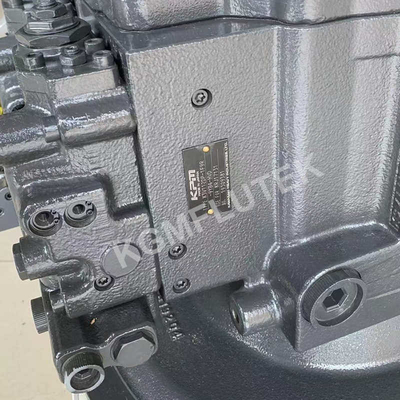

K3V112DP-1F9R-9YB4 KAWASAKI Hydraulic Pump ASSY For Case210 SH210
Product Details
| K3V112DP-1F9R-9YB4 KAWASAKI Hydraulic Pump ASSY For Case210 SH210 | |
| Product name: | KAWASAKI Hydraulic Pump ASSY |
| Model: | K3V112DP-1F9R-9YB4 |
| Brand Name: | KAWASAKI KPM |
| Place of Origin: | Japan |
| Condition: | 100% Genuine New |
| Material: | Casting Iron & Steel |
| Application: | CASE and SUMITOMO Excavator |
| Applicable Model: | Case210 Case240-B SH210 SH250-5 |
| Usage: | Construction Machine, Hydraulic Machinery Industry, Heavy Equipment |
| Packing: | Good quality wooden carton |
| Package Size: | 98X50X70CM |
| Payment Term: | T/T, Paypal, Western Union, Alipay, Wechat Pay |
| Delivery Time: | 1-3 Days after we received the payment |
| Shipping Mehod: | By express(DHL, FEDEX, UPS), by sea, by bus, by train, by air |
| After Warranty Service: | Video technical support & Online support |
| Warranty: | 6 months |
| Guarantee: We will check the hydraulic pumps and send detail pictures to buyer to confirm before shipping. | |
K3V112DP Hydraulic Pump Spare Parts
We provide genuine new Kawasaki K3V112DP hydraulic pump parts, range from K3V63DT, K3V112DT, K3V112DP, K3V140DT, K3V180DT, K3V280SH, K3V280DTH. Spare parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Yoke, Thrust Plate, Shoe Plate, Retainer Plate, Set Plate, Ball Guide, Piston Shoe, Pistons, Cylinder Block, Barrel, Valve Plate, Port Plate and other parts.
| Item No. | Name & Description | QTY (pcs) |
| 1 | K3V112DP DRIVE SHAFT/SHAFT | 1 |
| 2 | K3V112DP SUPPORT | 1 |
| 3 | K3V112DP SWASH PLATE/YOKE | 1 |
| 4 | K3V112DP THRUST PLATE/SHOE PLATE | 1 |
| 5 | K3V112DP RETAINER PLATE/SET PLATE | 1 |
| 6 | K3V112DP BALL GUIDE | 1 |
| 7 | K3V112DP COIL SPRING | 1 |
| 8 | K3V112DP PISTON SHOE/PISTONS | 9 |
| 9 | K3V112DP WASHER | 1 |
| 10 | K3V112DP CYLINDER BLOCK/BARREL | 1 |
| 11 | K3V112DP VALVE PLATE/PORT PLATE | 1 |
Features
1. With new technology the K3V series has realized higher power density.
2. K3V series can cope with enlargement of displacement despite the same installation dimensions and regulator variations as K3V’s.
3. K3V series pumps have realized higher reliability and long life so as to meet requirement of larger torque.
| Model | K3V63 | K3V112 | K3V140 | K3V180 | K3V280 | |
| Displacement /cm3 | 63 | 112 | 140 | 180 | 280 | |
| Pressure MPa
(kgf/cm2)
|
Rated | 34.3 (350) | ||||
| Peak | 39.2 (400) | |||||
| Speed
/min-1
|
Max.for self priming | 2,650 | 2,360 | 2,150 | 1,950 | 1,600 |
| Max | 3,250 | 2,700 | 2,500 | 2,300 | 2,300 | |
Advantages
1. We provide all kinds of Excavator Spare Prats, specialize in Hydraulic Parts.
2. Fast response ans quick delevery.
3. Mainly do wholesale price, 1pc also can get the best price
4. Support customer make, discuss with us get more details.
5. Shipping with safe packages to protect the goods.
6. Best Price And Cheap Shipping Cost, More Shipping Channel By Your Choose.
HYDRAULIC MAIN PUMP ASSY MODELS
| 14508164 | 1142-06230 | K3V63DT-1RCR-9N03-1 |
| 14508164 | 14500380 | K3V63DT-1R0R-9NOT |
| 14510170 | 14508164 | K3V63DT-1Y0R-9NOT |
| 14520050 | 14512271 | K3V63DT-1ZDR-9N0T-ZV |
| 14520750 | 14516405 | K3V112DT-1RCR-9N09 |
| 14526609 | 14522561 | K3V112DT-1XER-9N24-2 |
| 14531300 | 14524052 | K3V112DT-1XDR-9N24-ZV |
| 14531591 | 14526609 | K3V112DT-1XER-9N2A-2 |
| 14531594 | 14531412 | K3V140DT-1RCR-9N19 |
| 14533644 | 14531857 | K3V140DT-1JER-9N04-1 |
| 14612484 | 14549798 | K3V180DT-1PCR-9N46 |
| 14618624 | 14612484 | K3V180DTH-1POR-9N0S |
| 1040-74390 | 14618624 | K3V180DT-1PER-9N56 |
| 1042-02191A | 14621492 | K3V180DTH-1POR-9NOB |
| 1042-07700 | 14623786 | K3V180DT-152R-9N05-AHV |
| 14574463 | 14666232 | K3V280DTH1CER-0E52-AVB |
| 1142-00010 | 7220-00601 | K5V80DT-1 PDR-9N0Y-ZV |
| 1142-00530 | 1142-00900 | K5V80DT-1PDR-9N0J-ZV |
| 1142-00660 | 1142-05460 | K5V200DTP180R-9N8X-V |
| 2401-6228 | 2401-9236B | K3V112DT-112R-9C02 |
| 2401-9095P | 2401-9261 | K3V112DT-1CGR-HNOP |
| 14516405 | KRJ17131 | K3V112DP-1F9R-9YB4 |
| 2401-9158A | 401-00020B | K3V140DT-1A2R-9N09 |
| 2401-9186 | 401-00059B | K3V140DT-1UGR-HN02 |
| 2401-9225C | 401-00060C | K3V180DT-1PGR-HNOZ |
We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo, etc.
All of our Hydraulic Pumps are packed well in wooden case.
