Product Details:
|
| Product Name: | Axial Piston Motor For CAT349D2 | Part Name: | Hydraulic Swing Motors |
|---|---|---|---|
| Part Number: | 4865236 | Applicable: | CAT Excavator |
| Application Model: | CAT349D2 | Material: | Cast Iron |
| Packing: | Wooden Box | Weight: | 70 KGS |
| High Light: | CAT Excavator Swing Motor,M5X180 Excavator Swing Motor,4865236 Axial Piston Motor |
||

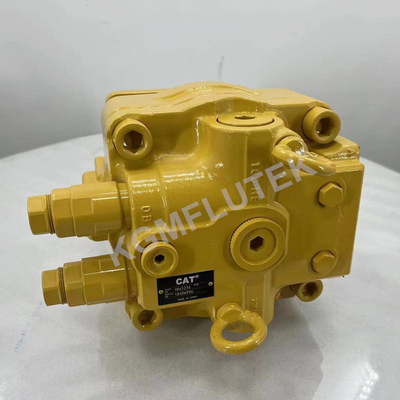

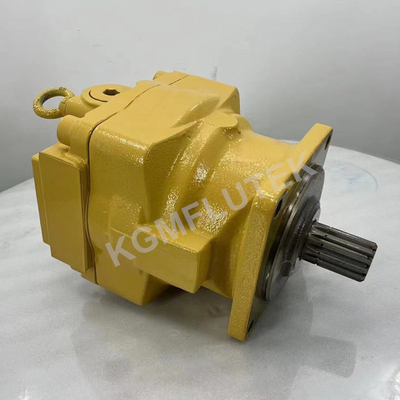

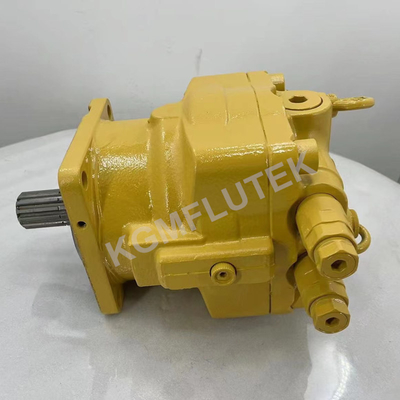

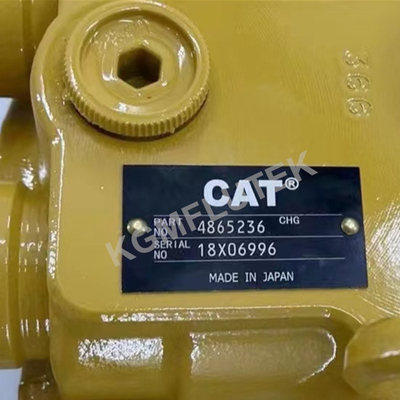

Original M5X180 CAT Swing Motor 4865236 Axial Piston Motor For CAT349D2
Product Details
| Original M5X180 CAT Swing Motor 4865236 Axial Piston Motor For CAT349D2 | |
| Product name: | Axial Piston Motor For CAT349D2 |
| Part number: | 4865236 |
| Part name: | Hydraulic swing motors |
| Brand Name: | CAT |
| Place of Origin: | Japan |
| Condition: | 100% original brand New |
| Material: | Cast Iron & Steel |
| Application: | Crawler Excavator |
| Applicable model: | CAT349D2 |
| Usage: | Construction Machinery, Hydraulic Machinery Industry |
| Dimension(L*W*H): | 52x52x60CM |
| Weight(KGS): | 75KGS |
| Shipment: | by sea, by air or by express door to door |
| Payment: | PAYPAL, WESTERN UNION, TT |
| Delivery time: | 1-3 Days after received the payment |
| After Warranty Service: | Online support and Video technical support |
| Warranty: | 6 months |
M5X180 Hydraulic Swing Motor Spare Parts
| PART DESCRIPTION | QTY |
| M5X180 PISTON SHOE | 9 |
| M5X180 CYLINDER BLOCK | 1 |
| M5X180 VALVE PLATE M | 1 |
| M5X180 RETAINER PLATE | 1 |
| M5X180 BALL GUIDE | 1 |
| M5X180 SHOE PLATE | 1 |
| M5X180 FRICTION PLATE | 2 |
| M5X180 STEEL PLATE | 3 |
| M5X180 DRIVE SHAFT | 1 |
| M5X180 PRESS PIN | 6 |
| M5X180 BALL GUIDE SPACER | 1 |
| M5X180 SPACER | 1 |
| M5X180 COIL SPRING | 1 |
| M5X180 SNAP RING | 1 |
Features
1. Swing Motor with high efficiency.
2. Extremely compact volume and light weight.
3. Build-in parking brake for safety.
4. Reliable quality and high durability.
5. Swings smoothly with very low noisy.
6. Automatic speed changing function is option.
Specifications-M2X/M5X Series Motor
Axial piston motor have been developed utilizing the latest technologies and have high reliability based on many year experience in the market, are widely applied in the construction machinery and the industrial equipment.
| Model | M2X63 | M2X210 | M5X80 | M5X130 | M5X180 | M5X250 | |
| Displacement (cm3) | 64 | 210.1 | 79 | 129.2 | 180.1 | 250.1 | |
| Pressure (MPa) | Rated | 29.4 | 29.4 | 33 | 32.4 | 32.4 | 33 |
| Max | 34.3 | 34.3 | 40 | 39.2 | 39.2 | 40 | |
| Max speed (min-1) | 2,200 | 1,400 | 2,200 | 1,850 | 1,680 | 1,520 | |
We offer wide range of hydraulic swing motors that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our swing motors are packed well in wooden case.
