Product Details:
|
| Product Name: | K3V112 KAWASAKI Hydraulic Pump | Model: | K3V112DT-1X7R-9NC9-2V |
|---|---|---|---|
| Condition: | Original Brand New | Application: | Volvo Liugong XCMG XGMA Zoomlion Excavator |
| Application Model: | EC210B LG922 XE210 XG822 ZE210 | Material: | Casting Iron |
| Packing: | Wooden Case | Weight: | 120kgs |
| High Light: | ZE210 Kawasaki Hydraulic Pump,EC210B Hydraulic Pump,K3V112DT-9NC9 Hydraulic Pump |
||

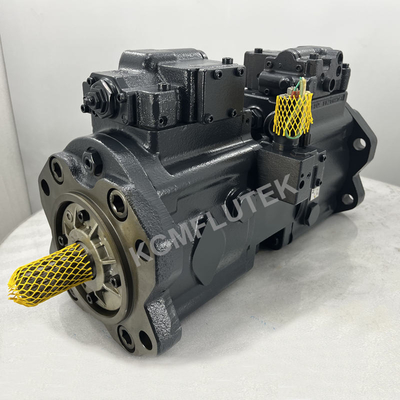

EC210B LG922 XE210 XG822 ZE210 KAWASAKI Hydraulic Pump K3V112DT-9NC9
Product Details
| EC210B LG922 XE210 XG822 ZE210 KAWASAKI Hydraulic Pump K3V112DT-9NC9 | |
| Product name: | K3V112 KAWASAKI Hydraulic Pump |
| Model: | K3V112DT-1X7R-9NC9-2V |
| Brand Name: | KAWASAKI KPM |
| Place of Origin: | Japan |
| Condition: | 100% Original Brand New |
| Material: | Iron & Steel |
| Application: | Volvo Liugong XCMG XGMA Zoomlion Excavator |
| Applicable Model: | EC210B LG922 XE210 XG822 ZE210 |
| Usage: | Heavy Equipment, Hydraulic Machinery Industry, Construction Machine |
| Packing: | Good quality wooden case |
| Package Size: | 87X45X65CM |
| Weight: | 120KGS |
| Payment Term: | T/T, Western Union, Paypal, Wechat Pay, Alipay |
| Delivery Time: | 1-3 Days after we received the payment |
| Shipping Mehod: | By express(DHL, FEDEX, UPS), by train, by bus, by air, by sea |
| After Warranty Service: | Video technical support, Online support |
| Warranty: | 6 months |
| Guarantee: We will check the hydraulic pumps and send detail pictures to buyer to confirm before shipping. | |
K3V112DT Hydraulic Pump Spare Parts
We provide new Kawasaki K3V1112DT hydraulic pump parts, range from K3V63DT, K3V112DT, K3V140DT, K3V180DT, K3V280SH. Spare parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Yoke, Thrust Plate, Shoe Plate, Retainer Plate, Set Plate, Ball Guide, Piston Shoe, Pistons, Cylinder Block, Barrel, Valve Plate, Port Plate and other parts.
| Item No. | Name & Description | QTY (pcs) |
| 1 | K3V1112DT DRIVE SHAFT/SHAFT | 1 |
| 2 | K3V1112DT SUPPORT | 1 |
| 3 | K3V1112DT SWASH PLATE/YOKE | 1 |
| 4 | K3V1112DT THRUST PLATE/SHOE PLATE | 1 |
| 5 | K3V1112DT RETAINER PLATE/SET PLATE | 1 |
| 6 | K3V1112DT BALL GUIDE | 1 |
| 7 | K3V1112DT COIL SPRING | 1 |
| 8 | K3V1112DT PISTON SHOE/PISTONS | 9 |
| 9 | K3V1112DT WASHER | 1 |
| 10 | K3V1112DT CYLINDER BLOCK/BARREL | 1 |
| 11 | K3V1112DT VALVE PLATE/PORT PLATE | 1 |
Features
1. With new technology the K3V series has realized higher power density.
2. K3V series can cope with enlargement of displacement despite the same installation dimensions and regulator variations as K3V’s.
3. K3V series pumps have realized higher reliability and long life so as to meet requirement of larger torque.
| Model | K3V63 | K3V112 | K3V140 | K3V180 | K3V280 | |
| Displacement /cm3 | 63 | 112 | 140 | 180 | 280 | |
| Pressure MPa
(kgf/cm2)
|
Rated | 34.3 (350) | ||||
| Peak | 39.2 (400) | |||||
| Speed
/min-1
|
Max.for self priming | 2,650 | 2,360 | 2,150 | 1,950 | 1,600 |
| Max | 3,250 | 2,700 | 2,500 | 2,300 | 2,300 | |
Advantages
1. High Power Density
2. High Suction Capability
2. High Reliability
3. Wide range of control options
4. High Efficiency and Long life
5. Stable Performance
6. High Quality and Competitive Price
HYDRAULIC MAIN PUMP ASSY MODELS
| 14508164 | 1142-06230 | K3V63DT-1RCR-9N03-1 |
| 14508164 | 14500380 | K3V63DT-1R0R-9NOT |
| 14510170 | 14508164 | K3V63DT-1Y0R-9NOT |
| 14520050 | 14512271 | K3V63DT-1ZDR-9N0T-ZV |
| 14520750 | 14516405 | K3V112DT-1RCR-9N09 |
| 14526609 | 14522561 | K3V112DT-1XER-9N24-2 |
| 14531300 | 14524052 | K3V112DT-1XDR-9N24-ZV |
| 14531591 | 14526609 | K3V112DT-1XER-9N2A-2 |
| 14531594 | 14531412 | K3V140DT-1RCR-9N19 |
| 14533644 | 14531857 | K3V140DT-1JER-9N04-1 |
| 14612484 | 14549798 | K3V180DT-1PCR-9N46 |
| 14618624 | 14612484 | K3V180DTH-1POR-9N0S |
| 1040-74390 | 14618624 | K3V180DT-1PER-9N56 |
| 1042-02191A | 14621492 | K3V180DTH-1POR-9NOB |
| 1042-07700 | 14623786 | K3V180DT-152R-9N05-AHV |
| 1142-00010 | 7220-00601 | K5V80DT-1 PDR-9N0Y-ZV |
| 1142-00530 | 1142-00900 | K5V80DT-1PDR-9N0J-ZV |
| 1142-00660 | 1142-05460 | K5V200DTP180R-9N8X-V |
| 2401-6228 | 2401-9236B | K3V112DT-112R-9C02 |
| 2401-9095P | 2401-9261 | K3V112DT-1CGR-HNOP |
| 2401-9158A | 401-00020B | K3V140DT-1A2R-9N09 |
| 2401-9186 | 401-00059B | K3V140DT-1UGR-HN02 |
| 2401-9225C | 401-00060C | K3V180DT-1PGR-HNOZ |
We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our Hydraulic Pumps are packed well in wooden case.
