Product Details:
|
Product Name: | Excavator Swing Device | Part Name: | Hydraulic Swing Motor |
---|---|---|---|
Part Number: | YA00019027 | Condition: | 100% Original New |
Applicable Industries: | Construction Machinery | Application Model: | ZX870LC-5G ZX890-5A |
After-sales Service Provided: | Online Technical Support | Application: | Excavator |
High Light: | ZX890-5A Excavator Swing Device,Hitachi Excavator Swing Device,YA00019027 Excavator Swing Device |

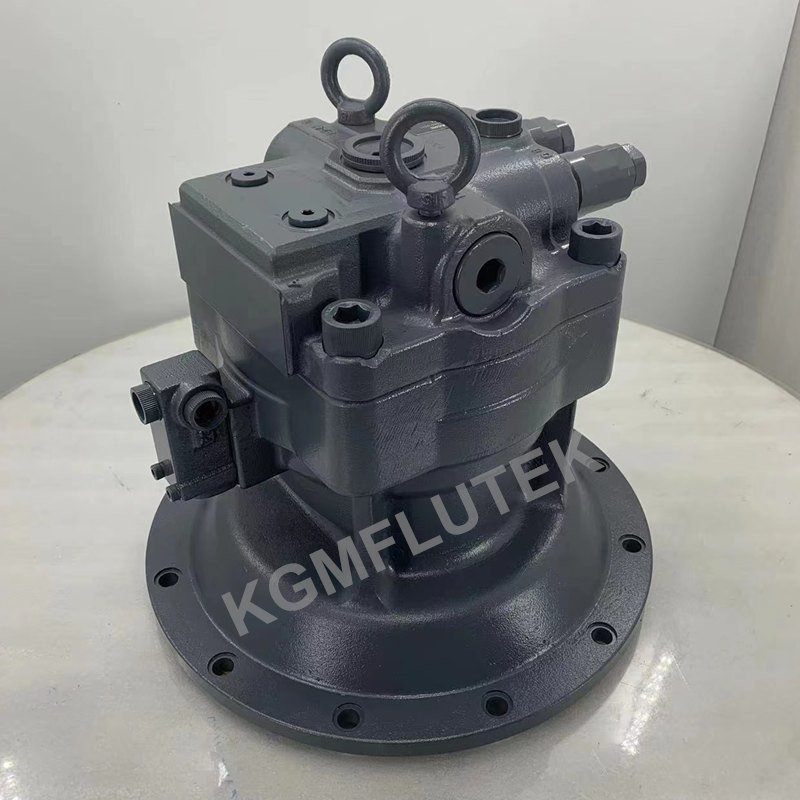

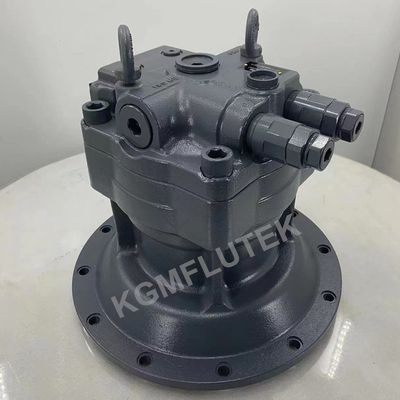

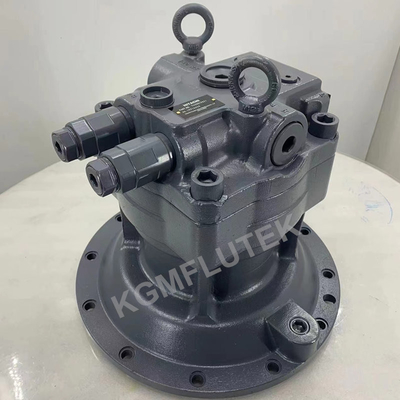

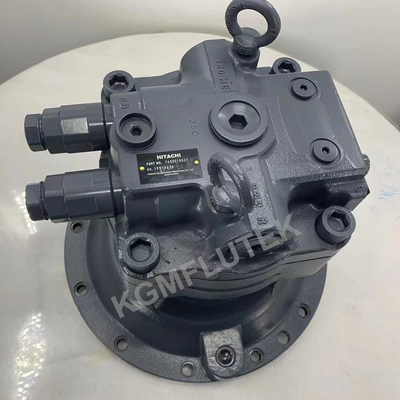

Original Hitachi ZX870LC-5G ZX890-5A Excavator Swing Device YA00019027
Product Details
Original Hitachi ZX870LC-5G ZX890-5A Excavator Swing Device YA00019027 | |
Product name: | Excavator Swing Device |
Part number: | YA00019027 |
Part name: | Hydraulic swing motor |
Brand Name: | Kawasaki KPM |
Place of Origin: | Japan |
Condition: | 100% original brand New |
Material: | Iron & Steel |
Application: | Crawler Excavator |
Applicable model: | Hitachi ZX870LC-5G ZX890-5A |
Usage: | Hydraulic Machinery Industry, Construction Machinery |
Dimension(L*W*H): | 52x52x60CM |
Weight(KGS): | 60KGS |
Delivery time: | 1-3 Days after we received the payment |
After Warranty Service: | Online support , Video technical support |
Warranty: | 6 months |
Hydraulic Swing Motor Spare Parts
PART DESCRIPTION | QTY |
PISTON SHOE | 9 |
CYLINDER BLOCK | 1 |
VALVE PLATE M | 1 |
RETAINER&BALL GUIDE | 1 |
RETAINER PLATE | 1 |
BALL GUIDE | 1 |
SHOE PLATE | 1 |
FRICTION PLATE | 2 |
STEEL PLATE | 3 |
DRIVE SHAFT | 1 |
PRESS PIN | 6 |
BALL GUIDE SPACER | 1 |
SPACER | 1 |
COIL SPRING | 1 |
SNAP RING | 1 |
Features
1. Integrated valving for swing function.
2. Compact design
3. Directly connected to reduction gear.
4. Swings smoothly with very low noisy.
5. Reliable quality and high durability.
Specifications-M2X/M5X Series Motor
Model | M2X63 | M2X210 | M5X80 | M5X130 | M5X180 | M5X250 | |
Displacement (cm3) | 64 | 210.1 | 79 | 129.2 | 180.1 | 250.1 | |
Pressure (MPa) | Rated | 29.4 | 29.4 | 33 | 32.4 | 32.4 | 33 |
Max | 34.3 | 34.3 | 40 | 39.2 | 39.2 | 40 | |
Max speed (min-1) | 2,200 | 1,400 | 2,200 | 1,850 | 1,680 | 1,520 |
Main products
Our business covers hydraulic pump, gear pump, pilot pump, solenoid valve, pilot valve, relief valve, bearing, rotary group, regulator, cylinder block, valve plate, ball guide, retainer plate, swash plate, support, drive shaft, swing motor, delay valve, separate plate, friction plate, casing, gear box, travel motor, bearing housing, sproket, control valve, valve spool, collecting valve bucket, seal kits and all spare parts for EXCAVATOR (Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo, Doosan, Daewoo, Sany, Sumitomo, Kato, KYB, JCB, Rexroth, Nachi, Uchida, LiuGong, XCMG, XGMA, Takeuchi, Kubota, Danfoss, John Deere,) with Kawasaki KPM, FLUTEK and OEM brand.
We offer wide range of hydraulic swing motors that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our swing motors are packed well in wooden case.
