Product Details:
|
| Product Name: | K3V180DTH Hydraulic Pump | Type: | Hydraulic Piston Pump Assembly |
|---|---|---|---|
| Model: | K3V180DTH19TR-0E11 | Application: | Crawler Excavator |
| Application Model: | EX400-3 EX400-5 | Material: | Casting Iron+Steel |
| Condition: | 100% New | Inventory: | In Stock |
| High Light: | K3V180DTH Excavator Hydraulic Pump,EX400-3 Excavator Hydraulic Pump,EX400-5 Excavator Hydraulic Pump |
||

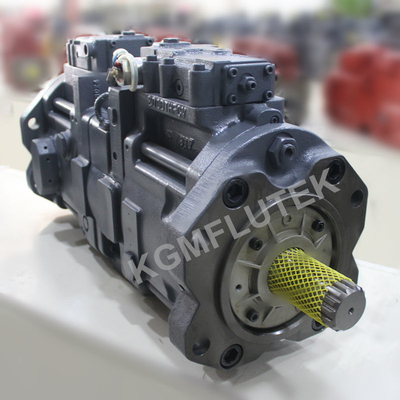

K3V Piston Pump K3V180DTH Hydraulic Pump For Hitachi EX400-3 EX400-5
Product Details
| K3V Piston Pump K3V180DTH Hydraulic Pump For Hitachi EX400-3 EX400-5 | |
| Product name: | Hydraulic Main Pump |
| Model: | K3V180DTH19TR-0E11 |
| Brand Name: | KGM FLUTEK |
| Place of Origin: | Japan |
| Condition: | 100% New |
| Material: | Iron & Steel |
| Application: | Hitachi Excavator |
| Applicable Model: | Hitachi EX400-3 EX400-5 |
| Usage: | Hydraulic Machinery Industry |
| Packing: | Wooden case |
| Package Size: | 98X50X63CM |
| Weight: | 195KGS |
| Payment Term: | T/T, Western Union |
| Delivery time: | 1-3 Days |
| After Warranty Service: | Online support |
| Warranty: | 6 months |
| Guarantee: We will check the hydraulic pump and send detail pictures to buyer to confirm before shipping. | |
K3V180 Hydraulic Pump Spare Parts
We offer Kawasaki K3V180DT hydraulic pump parts, range from K3V63DT, K3V112DT, K3V140DT, K3V180DT, K3V280. Spare parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Yoke, Thrust Plate, Shoe Plate, Retainer Plate, Set Plate, Ball Guide, Piston Shoe, Pistons, Cylinder Block, Barrel, Valve Plate, Port Plate and other parts.
| Item No. | Name & Description | QTY (pcs) |
| 1 | K3V180 DRIVE SHAFT/SHAFT | 1 |
| 2 | K3V180 SUPPORT | 1 |
| 3 | K3V180 SWASH PLATE/YOKE | 1 |
| 4 | K3V180 THRUST PLATE/SHOE PLATE | 1 |
| 5 | K3V180 RETAINER PLATE/SET PLATE | 1 |
| 6 | K3V180 BALL GUIDE | 1 |
| 7 | K3V180 COIL SPRING | 1 |
| 8 | K3V180 PISTON SHOE/PISTONS | 9 |
| 9 | K3V180 WASHER | 1 |
| 10 | K3V180 CYLINDER BLOCK/BARREL | 1 |
| 11 | K3V180 VALVE PLATE/PORT PLATE | 1 |
Features
1. With new technology the K3V series has realized higher power density.
2. K3V series can cope with enlargement of displacement despite the same installation dimensions and regulator variations as K3V’s.
3. K3V series pumps have realized higher reliability and long life so as to meet requirement of larger torque.
| Model | K3V63 | K3V112 | K3V140 | K3V180 | K3V280 | |
| Displacement /cm3 | 63 | 112 | 140 | 180 | 280 | |
| Pressure MPa
(kgf/cm2)
|
Rated | 34.3 (350) | ||||
| Peak | 39.2 (400) | |||||
| Speed
/min-1
|
Max.for self priming | 2,650 | 2,360 | 2,150 | 1,950 | 1,600 |
| Max | 3,250 | 2,700 | 2,500 | 2,300 | 2,300 | |
HITACHI Excavator Applications
| HITACHI HYDRAULIC MAIN PUMP ASSY | |
| K3V112DTPK | EX200-2/3 |
| K3V180DTH-1EOO | EX450-3 |
|
K3V180DTH-19ZR-OE01 K3V180DTH19TR-0E11 |
EX400-3/EX400-5 |
| K3V280DTH-TH-112R-OE01 | EX750-5/EX800-5 |
| K3V180SH/K5V200SH/K3V281SH | EX1200-5/1800-5 |
| K3V280SH-140L-1E41 | ZX800LCH/ZX870LCH/ZX670LCH/ZX850LCH/ZX650LCH/ZX1200LCH |
| K3V280SH-141L-OE23-V | ZX800LCH03/ZX650LCH-3/ZX600LCH-3/FH650LCH-3/EX550-5/ZX850LCH-3 |
| K3V280SH-2P00 | EX1200 |
| K3V280SH-SK3D | EX1800-3/5 |
| HPV116CW | EX200/220/240 |
| HPV116DW | EX200/220/240 |
| HPV116-RH23A | EX200-1 |
| HPV145CW | EX270/300/330 |
| HPV145DW | EX270-2/300-2/330-2&EX270-3/300-3/330-3 |
| HPV145FW | EX270-5/300-5/330-5/350-5/370-5/EX335 |
| HPV145GW | ZX300/330/350/370 |
| HPV145HW | ZX300-3/330-3/350-3/370-3/ZX300-5/330-5/350-5/370-5 |
| HPV050FW | EX120-5 |
| HPVO102GW-RH23A | ZX200/ZX210/ZX220 |
| HPVO118HW-RH26A | ZX270/ZX280 |
| HPVO91EW | EX200-2/3 |
| K5V80S-11S-1F29 | ZX850-3 |
| K3V280SH141L-0E23-VD | ZX870-3 |
| K3V63S-102R-1F29 | ZX450-3/470-3 |
| HPK300A8 | ZX870-5GV |
| HPV118HW-21B | ZX250-3/ZX200-3/ZX240-3 |
We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our Hydraulic Pumps are packed well in wooden case.
