Product Details:
|
Product Name: | Swing Motor Replacement | Type: | Swing Motor Assembly |
---|---|---|---|
Model: | M5X130CHB-10A-85A/260 | Application: | Crawler Excavator |
Application Model: | Sany SY215-8 | Material: | Steel & Iron |
Condition: | New Original | Feature: | High Efficiency |
High Light: | KPM Excavator Swing Motor,Sany Excavator Swing Motor,Kawasaki Hydraulic Swing Motor |

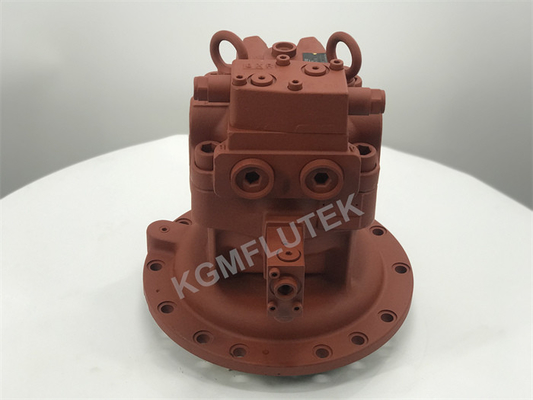

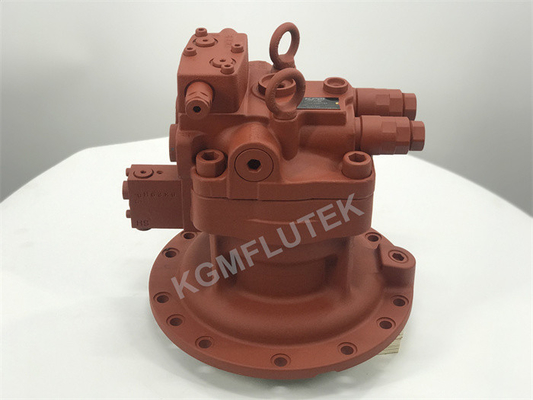

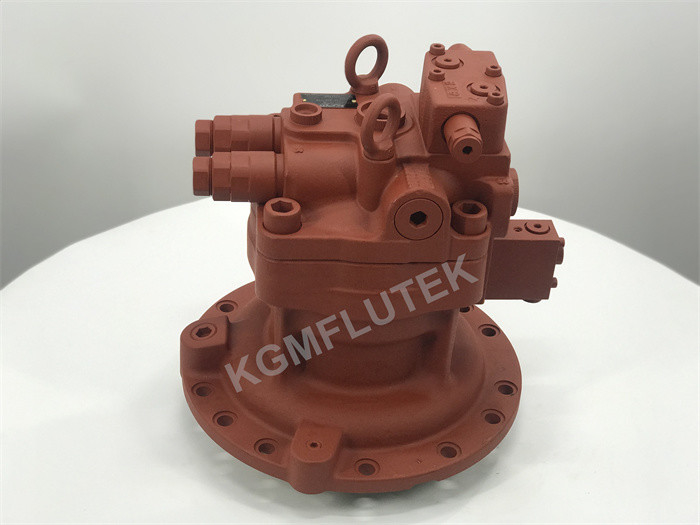

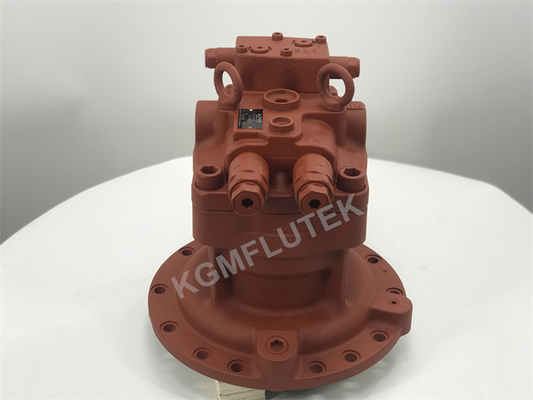

Kawasaki KPM Hydraulic Swing Motor Replacement For Sany SY215-8
Product Details
Part Name | Swing Motor Replacement |
Model | M5X130CHB-10A-85A/260 |
Brand | KAWASAKI KPM |
Original | Japan |
Application model | Sany SY215-8 |
Delivery time | 1-3 days after payment |
Payment | T/T, Western Union, Ali pay |
Means of Transport | By air, by sea, by express(DHL, TNT, UPS, FEDEX) |
Package | Wooden Case Packing |
Quality | High quality |
Material | Steel |
Type | Excavator Swing Motor |
Category | Construction Machinery Parts |
Specifications
Model | Displacement (cm3) | Output Torque (Nm) | Speed (min-1) |
M3X / M3B series | 195 - 800 | 990 - 3750 | 1900 - 1200 |
K3X series | 64 - 111 | 319 - 554 | 3000 - 2200 |
M5X series | 80 - 250 | 415 - 1310 | 2200 - 1520 |
M5X-RG series | 1520 - 6300 | 5420 - 27000 | 115 - 6 |
M7V / M7VC / M7X series | 85 - 212 | 541 - 1437 | 4500 - 2900 |
Kawasaki M5X130 Swing Motor Spare Parts
PART DESCRIPTION | QTY |
PISTON SHOE | 9 |
CYLINDER BLOCK | 1 |
VALVE PLATE M | 1 |
RETAINER&BALL GUIDE | 1 |
RETAINER PLATE | 1 |
BALL GUIDE | 1 |
SHOE PLATE | 1 |
FRICTION PLATE | 2 |
STEEL PLATE | 3 |
DRIVE SHAFT | 1 |
PRESS PIN | 6 |
BALL GUIDE SPACER | 1 |
SPACER | 1 |
COIL SPRING | 1 |
SNAP RING | 1 |
Features
1. Smooth starting characteristic and stable operation at very low speed.
2. High speed performance on a per with bent axis type motors.
3. Compact size contributes to better installation.
4. High reliability and Long life for high pressure spec.
5. Various control options such as electric or pressure control.
Main products
Our business covers hydraulic pump, gear pump, pilot pump, solenoid valve, pilot valve, relief valve, bearing, rotary group, regulator, cylinder block, valve plate, ball guide, retainer plate, swash plate, support, drive shaft, swing motor, delay valve, separate plate, friction plate, casing, gear box, travel motor, bearing housing, sproket, control valve, valve spool, collecting valve bucket, seal kits and all spare parts for EXCAVATOR (Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo, Doosan, Daewoo, Sany, Sumitomo, Kato, KYB, JCB, Rexroth, Nachi, Uchida, LiuGong, XCMG, XGMA, Takeuchi, Kubota, Danfoss, John Deere,) with Kawasaki KPM, FLUTEK and OEM brand.
We offer wide range of hydraulic swing motors that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our swing motors are packed well in wooden case.
