Product Details:
|
| Product Name: | Excavator Slewing Motor | Part Name: | Rotary Motor |
|---|---|---|---|
| Model: | M5X180CHB-12A-62B/295-149 | Application: | Excavator |
| Application Model: | Sumitomo SH240-5 | Material: | Iron & Steel |
| Condition: | 100% New | Color: | Black |
| High Light: | KAWASAKI Excavator Slew Motor,Excavator Slew Motor Assembly |
||

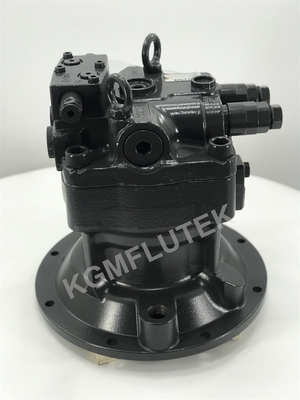

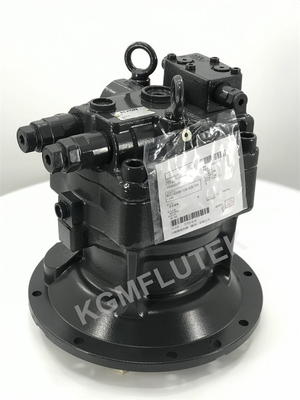

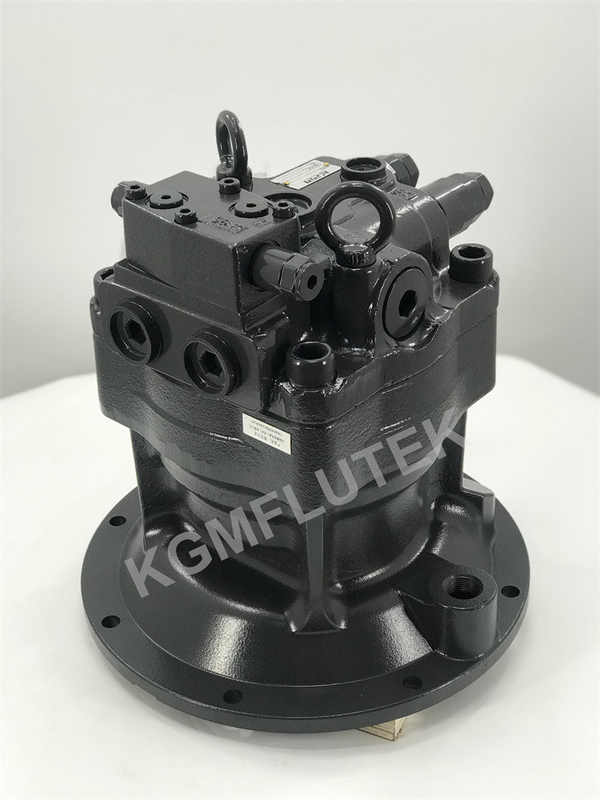

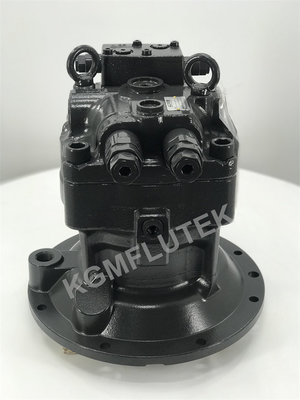

KAWASAKI M5X180CHB-12A Excavator Slewing Motor Reduction Assembly
Product Details
| Product name: | Excavator Slewing Motor |
| Model: | M5X180CHB-12A-62B/295-149 |
| Part name: | Rotary motor |
| Brand Name: | Kawasaki KPM |
| Place of Origin: | Japan |
| Condition: | 100% original brand New |
| Material: | Iron & Steel |
| Application: | Excavator |
| Applicable model: | Sumitomo SH240-5 |
| Usage: | Hydraulic Machinery Industry |
| Dimension(L*W*H): | 52x52x60CM |
| Delivery time: | 1-3 Days after payment |
| After Warranty Service: | Online support , Video technical support |
| Warranty: | 6 months |
Specifications
| Model | Displacement (cm3) | Output Torque (Nm) | Speed (min-1) |
| M3X / M3B series | 195 - 800 | 990 - 3750 | 1900 - 1200 |
| K3X series | 64 - 111 | 319 - 554 | 3000 - 2200 |
| M5X series | 80 - 250 | 415 - 1310 | 2200 - 1520 |
| M5X-RG series | 1520 - 6300 | 5420 - 27000 | 115 - 6 |
| M7V / M7VC / M7X series | 85 - 212 | 541 - 1437 | 4500 - 2900 |
Kawasaki M5X180 Swing Motor Spare Parts
| PART DESCRIPTION | QTY |
| PISTON SHOE | 9 |
| CYLINDER BLOCK | 1 |
| VALVE PLATE M | 1 |
| RETAINER&BALL GUIDE | 1 |
| RETAINER PLATE | 1 |
| BALL GUIDE | 1 |
| SHOE PLATE | 1 |
| FRICTION PLATE | 2 |
| STEEL PLATE | 3 |
| DRIVE SHAFT | 1 |
| PRESS PIN | 6 |
| BALL GUIDE SPACER | 1 |
| SPACER | 1 |
| COIL SPRING | 1 |
| SNAP RING | 1 |
Features
1. High presirion steel mold casting housing.
2. Enough power, high efficiency.
3. Imported valve can work more than 9000+ hours.
4. We can provide external diameter and shaft diameter, numbers of hole and teeth for your confirmation.
5. High strength parts, not easy to wear and tear.
6. Low noise and not easy to heat up.
Main products
Our business covers hydraulic pump, gear pump, pilot pump, solenoid valve, pilot valve, relief valve, bearing, rotary group, regulator, cylinder block, valve plate, ball guide, retainer plate, swash plate, support, drive shaft, swing motor, delay valve, separate plate, friction plate, casing, gear box, travel motor, bearing housing, sproket, control valve, valve spool, collecting valve bucket, seal kits and all spare parts for EXCAVATOR (Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo, Doosan, Daewoo, Sany, Sumitomo, Kato, KYB, JCB, Rexroth, Nachi, Uchida, LiuGong, XCMG, XGMA, Takeuchi, Kubota, Danfoss, John Deere,) with Kawasaki KPM, FLUTEK and OEM brand.
We offer wide range of hydraulic swing motors that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our swing motors are packed well in wooden case.
